KA01556M/00/EN/01.21-00
71550111
2021-11-29
Products
Brief Operating Instructions

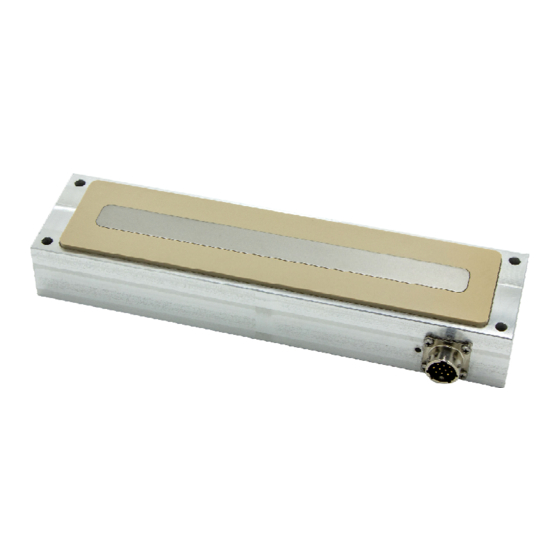

Solitrend MMP60
Material moisture measurement
These Instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
For detailed information, refer to the Operating Instructions
and other documentation.
Available for all device versions via:
• Internet: www.endress.com/deviceviewer
• Smart phone/Tablet: Endress+Hauser Operations App
Solutions
Services
Advertisement
Table of Contents
Related Manuals for Endress+Hauser Solitrend MMP60
Summary of Contents for Endress+Hauser Solitrend MMP60
- Page 1 These Instructions are Brief Operating Instructions; they are not a substitute for the Operating Instructions pertaining to the device. For detailed information, refer to the Operating Instructions and other documentation. Available for all device versions via: • Internet: www.endress.com/deviceviewer • Smart phone/Tablet: Endress+Hauser Operations App...
- Page 2 Solitrend MMP60 Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...
-
Page 3: Table Of Contents
Solitrend MMP60 Table of contents Table of contents About this document ............. . 4 Symbols used . -
Page 4: About This Document
About this document Solitrend MMP60 About this document Symbols used 1.1.1 Symbols for certain types of information and graphics Tip Indicates additional information Reference to documentation Reference to graphic Notice or individual step to be observed Series of steps Result of a step 1, 2, 3, ... -
Page 5: Intended Use
Solitrend MMP60 Basic safety instructions Intended use Application and media The device described in this manual is intended for the continuous moisture measurement of a wide variety of materials. Because of its operating frequency of approx. 1 GHz the device can also be used outside of closed metal vessels. -
Page 6: Product Safety
Product description Solitrend MMP60 Hazardous area To eliminate the risk of danger to persons or the facility when the device is used in the approval-related area (e.g. explosion protection, pressure equipment safety): ‣ Check the nameplate to verify if the device ordered can be put to its intended use in the approval-related area. -
Page 7: Incoming Acceptance And Product Identification
‣ Enter the serial number from the nameplate in the Endress+Hauser Operations app or scan the 2-D matrix code on the nameplate with the camera All of the information on the measuring device and on the scope of the technical documentation pertaining to the device is displayed. -
Page 8: Manufacturer's Address
Mounting Solitrend MMP60 Manufacturer's address Endress+Hauser SE+Co. KG Hauptstraße 1 79689 Maulburg, Germany Storage, transport 4.4.1 Storage conditions • Permitted storage temperature: –40 to +70 °C (–40 to +158 °F) • Use original packaging. 4.4.2 Transporting the product to the measuring point Transport the device to the measuring point in the original packaging. -
Page 9: Post-Mounting Check
Solitrend MMP60 Mounting r = 7.5 43 (1.69) 250 (9.84) 265 (10.4) 280 (11) A0038452 2 Dimensions. Unit of measurement mm (in) 5.2.1 Mounting the housing with the remote electronics module The housing with the remote electronics module can be mounted with two screws (M5). -
Page 10: Electrical Connection
Electrical connection Solitrend MMP60 Is the device undamaged (visual inspection)? If provided: are the measuring point number and labeling correct? Are the connections established correctly and protected against mechanical influences? If used: is the device securely positioned in the mounting flange / mounting frame (visual inspection)? ... -
Page 11: Post-Connection Check
Solitrend MMP60 Electrical connection A0037415 4 Assignment of the 10-pin plug 12 to 24 V stabilized power supply Wire color: red (RD) power supply Wire color: blue (BU) 1st analog positive (+), material moisture Wire color: green (GN) 1st analog return line (-), material moisture... -
Page 12: Operation Options
Operation options Solitrend MMP60 Operation options RS485 IMP-Bus A0046920 5 Overview Device Remote display Computer LED display PLC or water dosing computer Commissioning Analog outputs for measured value output The measured values are output as a current signal via the analog output. The device can be set to 0 to 20 mA or 4 to 20 mA. - Page 13 Solitrend MMP60 Commissioning Moisture, temperature/conductivity • Output 1: moisture in % (variable setting) • Output 2: material temperature 0 to 100 °C (32 to 212 °F) and conductivity 0 to 20 mS/cm with automatic window switching. It is also possible to divide output 2 into two ranges to output both the conductivity and the temperature, namely the 4 to 11 mA range for the temperature and the 12 to 20 mA range for the conductivity.
-
Page 14: Operating Mode
Commissioning Solitrend MMP60 • Moisture range in % • Maximum: e.g. 20 % • Minimum: 0 % • Temperature range in °C • Maximum: 100 °C, this also applies for the high-temperature version. • Minimum: 0 °C • Conductivity in mS/cm •... -
Page 15: Calibration Curve Set A For General Bulk Solids Applications
Solitrend MMP60 Commissioning • CK mode (Cyclic with Boost Filter) For complex applications in mixers and dryers • CC mode (Cyclic Cumulated) With automatic totalization of moisture quantity measurements in one batch process if no PLC controller is used • CH mode (Cyclic Hold) Standard operating mode for applications in the construction industry. - Page 16 Commissioning Solitrend MMP60 H [%] t [ps] A0037431 6 Calibration curve set A (Cal.1, Cal.2, Cal.3, Cal.4, Cal.5, Cal.6, Cal.7, Cal.10, Cal.11) Gravimetric moisture; % Radar transit time; picoseconds Cal.1, Universal; sand/gravel/grit Cal.2, Sand 1.6 Cal.3, Sand 1.7 Cal.4, Sand 1.8 Cal.5, Sand 1.9...
-
Page 17: Settings
Solitrend MMP60 Commissioning H [%] t [ps] A0037432 7 Calibration curve set A (Cal.8, Cal.9, Cal.12, Cal.13, Cal.14, Cal.15) Gravimetric moisture; % Radar transit time; picoseconds Cal.8, Lignite Cal.9, Basic calibration Cal.12, Sewage sludge Cal.13, Cereals (linear) Cal.14, Air/water 0 to 100 % Cal.15, Raw data calibration (... -
Page 18: Special Functions
Diagnostics and troubleshooting Solitrend MMP60 It is also possible to perform your own calibrations and overwrite an existing calibration curve. SD02333M Remote display - Description of operation and material calibration. Special functions Special functions that are available are described in the Operating Instructions pertaining to the device. - Page 19 Solitrend MMP60 Diagnostics and troubleshooting Moisture scaling set incorrectly in the PLC In the device, 0 to 20 % moisture corresponds to the current output of 0 to 20 mA or 4 to 20 mA. ‣ Enter the 0 to 20 % moisture scaling in the PLC.
- Page 20 *71550111* 71550111 www.addresses.endress.com...
