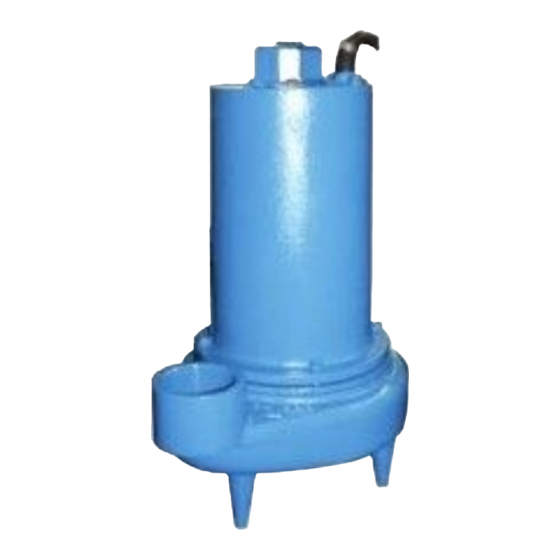

Barnes 3SE-DS Installation And Operation Manual
Submersible sewage ejector
Hide thumbs
Also See for 3SE-DS:
- Installation and operation manual (17 pages) ,
- Installation and operation manual (20 pages)
Table of Contents
Advertisement
Quick Links
INSTALLATION and OPERATION MANUAL
Submersible Sewage Ejector
Series: 3SE-DS, 3HP
1750RPM, 60Hz.
(Double Seal)
IMPORTANT!
Read all instructions in this manual before operating pump.
As a result of Crane Pumps & Systems, Inc., constant product improvement program,
product changes may occur. As such Crane Pumps & Systems reserves the right to
change product without prior written notification.
A Crane Co. Company
420 Third Street
Piqua, Ohio 45356
Phone: (937) 778-8947
Fax: (937) 773-7157
www.cranepumps.com
All manuals and user guides at all-guides.com
BARNES
BARNES
83 West Drive, Brampton
Ontario, Canada L6T 2J6
Phone: (905) 457-6223
Fax: (905) 457-2650
®
Form No. 088743-Rev. S
Advertisement
Table of Contents
Related Manuals for Barnes 3SE-DS
Summary of Contents for Barnes 3SE-DS
- Page 1 BARNES BARNES ® INSTALLATION and OPERATION MANUAL Submersible Sewage Ejector Series: 3SE-DS, 3HP 1750RPM, 60Hz. (Double Seal) IMPORTANT! Read all instructions in this manual before operating pump. As a result of Crane Pumps & Systems, Inc., constant product improvement program, product changes may occur.
-
Page 2: Table Of Contents
PRESSURE GAUGE KIT (see parts list) Other brand and product names are trademarks or registered trademarks of their respective holders. ® Barnes is a registered trademark of Crane Pumps & Systems, Inc 1996, 1997, 1998, 1999, 2001, 2002, 3/06, 9/06, 2/07... -
Page 3: Safety First
All manuals and user guides at all-guides.com SAFETY FIRST! Please Read This Before Installing Or Operating Pump. This information is provided for SAFETY and to PREVENT Do not block or restrict discharge hose, as discharge EQUIPMENT PROBLEMS. To help recognize this information, hose may whip under pressure. -
Page 4: Pump Specifications
All manuals and user guides at all-guides.com SECTION: A - PUMP SPECIFICATIONS: 1750RPM DISCHARGE ....3” NPT, Vertical UPPER BEARING: LIQUID TEMPERATURE . 104°F (40°C) Continuous Design ..Single Row, Ball, Oil Lubricated MOTOR HOUSING ..Cast Iron ASTM A-48, Class 30 Load ..... -
Page 5: General Information
B-4) Service Centers: locate the base on the bottom of the wet well. Level the base For the location of the nearest Barnes Service Center, check with grout and/or shims. Install the intermediate support your Barnes representative or Crane Pumps & Systems, Inc., brackets, if required. - Page 6 All manuals and user guides at all-guides.com C-4) Electrical Connections: NOTE: Single phase pumps can be orederd with an optional C-4.1) Power & Control Cords: Thermal Sensor as well as the standard in winding overload The cord assembly mounted to the pump must not be modified protection.
-
Page 7: Start-Up Operation
Return one copy motor housing (2) and drain oil into a clean, dry container. to Barnes and store the second in the control panel or with In separate container drain seal chamber by removing the pump manual if no control panel is used. - Page 8 If found to be SUPPLIER GRADE defective contact a motor service station or Barnes Pumps service department. Remove retaining ring (28) from bearing Enerpar SE100 bracket (20) and pull motor rotor and lower bearing (39)
- Page 9 All manuals and user guides at all-guides.com Position motor housing and stator into pilot, aligning holes Important ! - ALL parts must be clean before in bearing bracket (20). Apply thread locking compound on reassembly. motor bolts and tighten. Torque motor bolts to 17 ft. lbs. Place all motor leads above the motor.
- Page 10 All manuals and user guides at all-guides.com F-4) Shaft Seal and Diaphragm Service: Important ! - Handle seal parts with extreme care. DO NOT scratch or mar lapped surfaces. F-4.1) Disassembly and Inspection: Diaphragm - To examine or replace the diaphragm (31) or shaft seal (38), remove impeller (27) as outlined in paragraph F-2.1.
- Page 11 All manuals and user guides at all-guides.com FIGURE 6 FIGURE 5 Seal - Clean and oil seal cavities in bearing bracket (20) Motor & Seal Plate and seal plate (24). Lightly oil (DO NOT use grease) outer Rotating Member (38D) surface of inboard stationary member (38E) and outboard Stationary stationary member (38A).
-
Page 12: Replacement Parts
All manuals and user guides at all-guides.com SECTION: G REPLACEMENT PARTS G-1 ORDERING REPLACEMENT PARTS: When ordering replacement parts, ALWAYS furnish the following information: 1. Pump serial number and date code. (Paragraph G-4) 2. Pump model number. (Paragraph G-3) 3. Pump part number. (Paragraph G-2) 4. -
Page 13: Trouble Shooting
All manuals and user guides at all-guides.com TROUBLE SHOOTING CAUTION ! Always disconnect the pump from the electrical power source before handling. If the system fails to operate properly, carefully read instructions and perform maintenance recommendations. If operating problems persist, the following chart may be of assistance in identifying and correcting them: MATCH “CAUSE”... - Page 14 All manuals and user guides at all-guides.com 3SE-DS 1750RPM FIGURE 11...
- Page 15 All manuals and user guides at all-guides.com 3SE-DS 1750RPM FIGURE 12...
- Page 16 All manuals and user guides at all-guides.com PARTS LIST - 1750RPM Seal Repair Kits Double Seal..P/N - 130178 (†) 10, 31, 36, 38 Service Kits Double Seal..P/N - 130174 (♦) 10, 11, 16, 28, 29, 30, 31, 32, 33, 36, 38, 39 Seal Tool Kit....P/N-085736 Pressure Gauge Kit...P/N-085343 ITEM...
- Page 17 All manuals and user guides at all-guides.com 057882 ♦ Retaining Ring 003217 ♦ Pipe Plug (Replaces Item 18) 022873 †♦ Diaphragm 059186 ♦ Shaft Key 3/16 Sq x 1” Lg Stainless 038132 ♦ Hex Nut 5/8-18 Stainless 11-32-1 Soc. Hd. Cap Screw 1/4-20 x 1”...
- Page 18 All manuals and user guides at all-guides.com IMPORTANT! WARRANTY REGISTRATION IMPORTANT! WARRANTY REGISTRATION Your product is covered by a warranty: Your product is covered by the enclosed Warranty. www.cranepumps.com/downloadables/CATALOGS_OIPMs/Warranty/24MonthWarranty.pdf If you have a claim under the provisions of the warranty, contact your local If you have a claim under the provision of the warranty, contact your local Crane Pumps &...
