PROFINET Module
Installation Guide
Device Configuration
6.

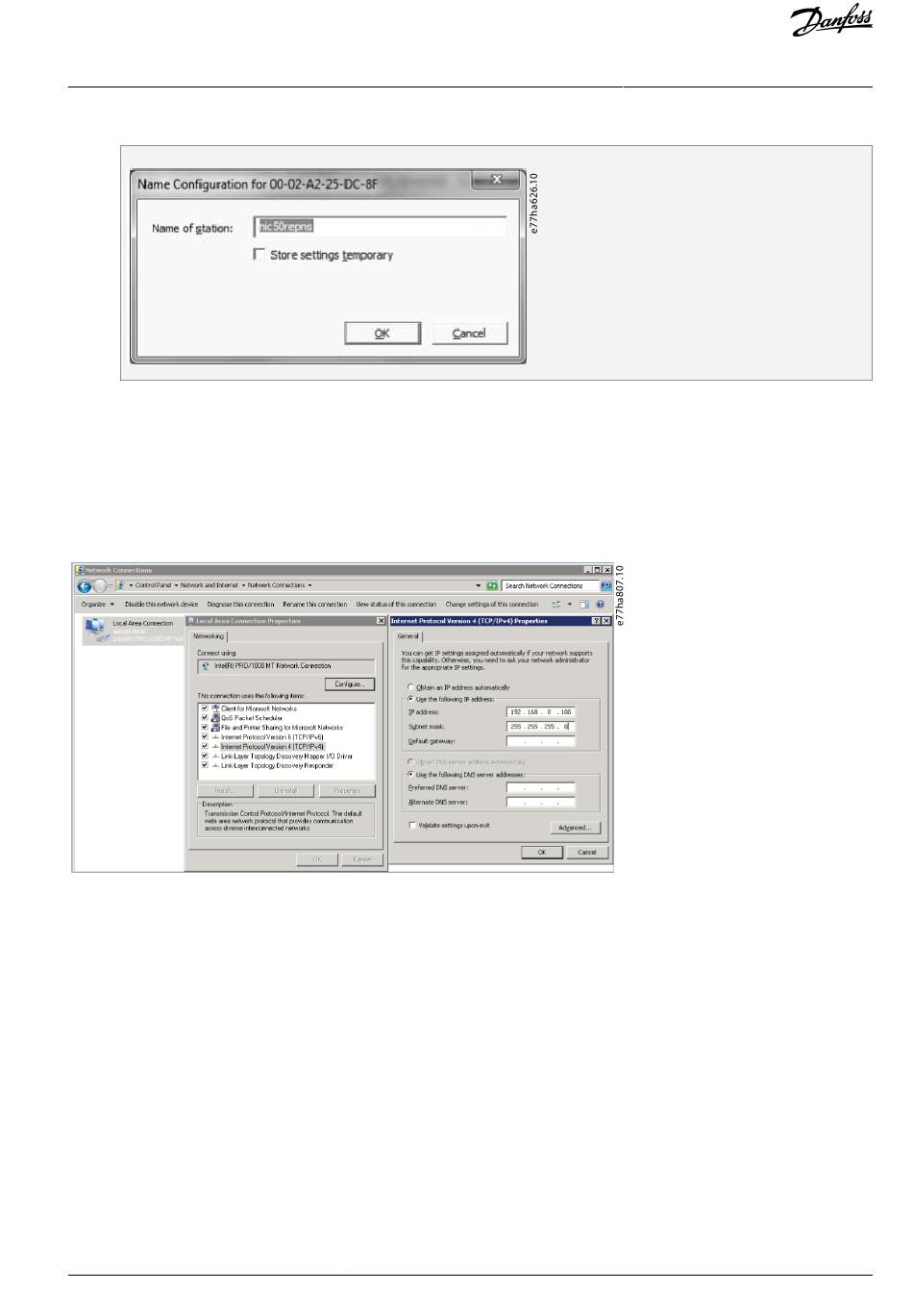

To configure a device name, click Configure and select Device Name.

5.2 On-board Web Server

5.2.1 Connect to the Device

To configure settings using the on-board web server, the device must be installed in a soft starter, control power must be available,
and the device and computer must both be connected to the Ethernet network.
The computer must use a fixed IP address (not DHCP) and the same subnet mask as the device. The default IP address for a new
PROFINET Module is 192.168.1.2. The default subnet mask is 255.255.255.0.
Once connected, the web server reports basic information about the device and the soft starter.
Danfoss A/S © 2022.11 AN428735951761en-000101 / 175R1188 | 13
