Device Configuration

5 Device Configuration

5.1 Configuration Overview

NOTICE
The error LED flashes whenever the device is receiving
power but is not connected to a network. The error LED
flashes throughout the configuration process.

5.2 On-board Web Server

Ethernet attributes can be configured directly in the device
using the on-board web server.
NOTICE
The web server only accepts connections from within the
same subnet domain.
To configure the device using the on-board web server:
1. Attach the module to a soft starter.
2. Connect Ethernet port 1 or port 2 on the Modbus
TCP Module to the network.
3. Apply control power to the soft starter.
4. Start a browser on the PC and enter the device
address, followed by /ipconfig. The default
address for a new Modbus TCP Module is
192.168.1.2.

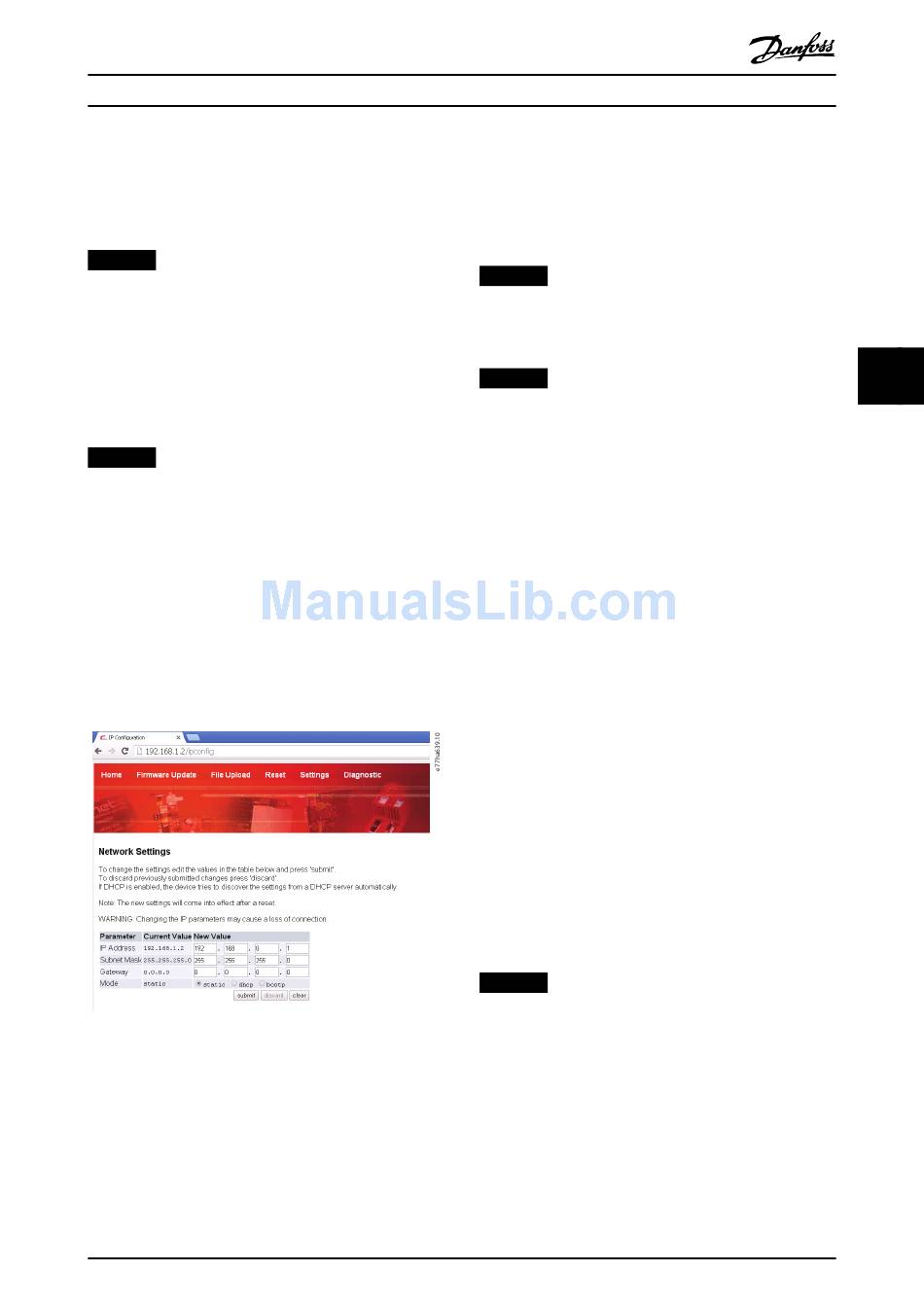

Illustration 5.1 Entering Network Settings
5. Edit the settings as required.
6. Click Submit to save the new settings.
7. Tick Static to store the settings permanently in
the device.
8. If prompted, enter username and password.
MG17N102
Installation Guide
NOTICE
If an IP address is changed and its record is lost, use the
Ethernet Device Configuration Tool to scan the network
and identify the module.
NOTICE
If changing the subnet mask, the server is unable to
communicate with the module after the new settings are
saved.

5.3 Ethernet Device Configuration Tool

If the IP address is unknown, or if the subnet mask of the
web server does not match, use the Ethernet Device
Configuration Tool to connect to the Modbus TCP Module.
Changes made via the Ethernet Device Configuration Tool
cannot be stored permanently in the module and are lost
when control power is cycled. Use the Ethernet Device
Configuration Tool to change the IP address settings
temporarily. After that, use the new address to connect to
the module using the on-board web server to save the
settings permanently.
Download the Ethernet Device Configuration Tool. To
install the software, administrator privileges are required
on the PC.
Downloading the tool:
1.
2.
3.
4.
NOTICE
If the PC has a firewall enabled, add the tool to the list
of authorized programs.
Danfoss A/S © 10/2017 All rights reserved.
8a Username: danfoss
8b Password: danfoss
Go to drives.danfoss.com/downloads/pc-tools/ to
find the tool.
Make sure to have administrator privileges on the
PC before starting the installation.
Accept the End-User License Agreement.
Click Yes on the User account control dialog box.
5 5
