4 Connection

4.1 Soft Starter Connection

The PROFINET Module is powered from the soft starter.
The PROFINET Module is not suitable for use with MCD 200 soft starters using 380/440 V AC control voltage.
1
A1
N2
2
3

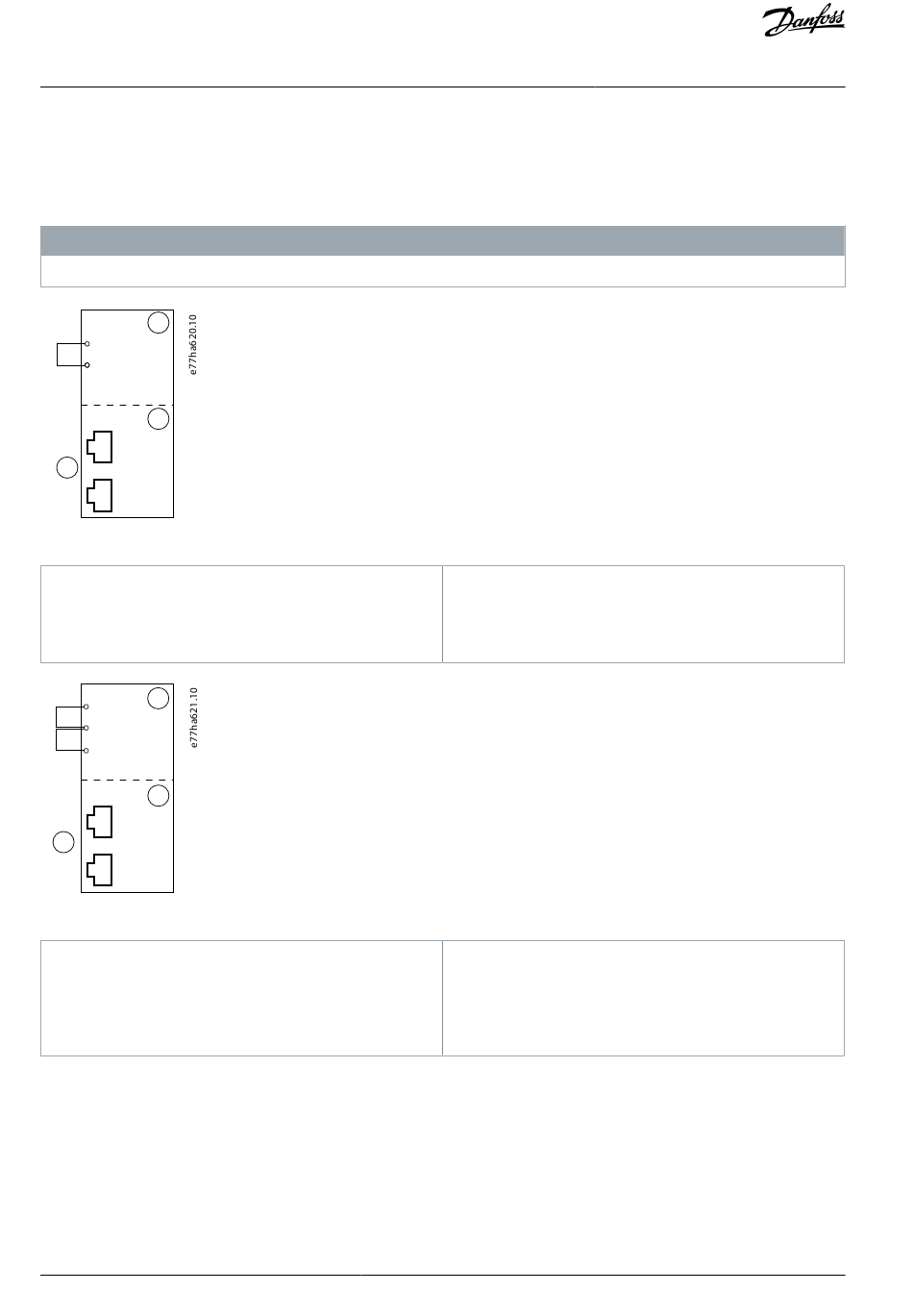

Illustration 2: Connecting MCD 200
1 Soft starter
A1, N2: Stop input
2 PROFINET Module
1
17
18
25
2
3
Illustration 3: Connecting MCD 500
1 Soft starter (remote mode)
17, 18: Stop input
25, 18: Reset input
2 PROFINET Module

4.2 Network Connection

4.2.1 Ethernet Ports

The device has 2 Ethernet ports. If only 1 connection is required, either port can be used.

4.2.2 Cables

When connecting to the device, make sure that the cables are of 1 of the following categories:
10 | Danfoss A/S © 2022.11
N O T I C E
3 RJ45 Ethernet ports
3 RJ45 Ethernet ports
