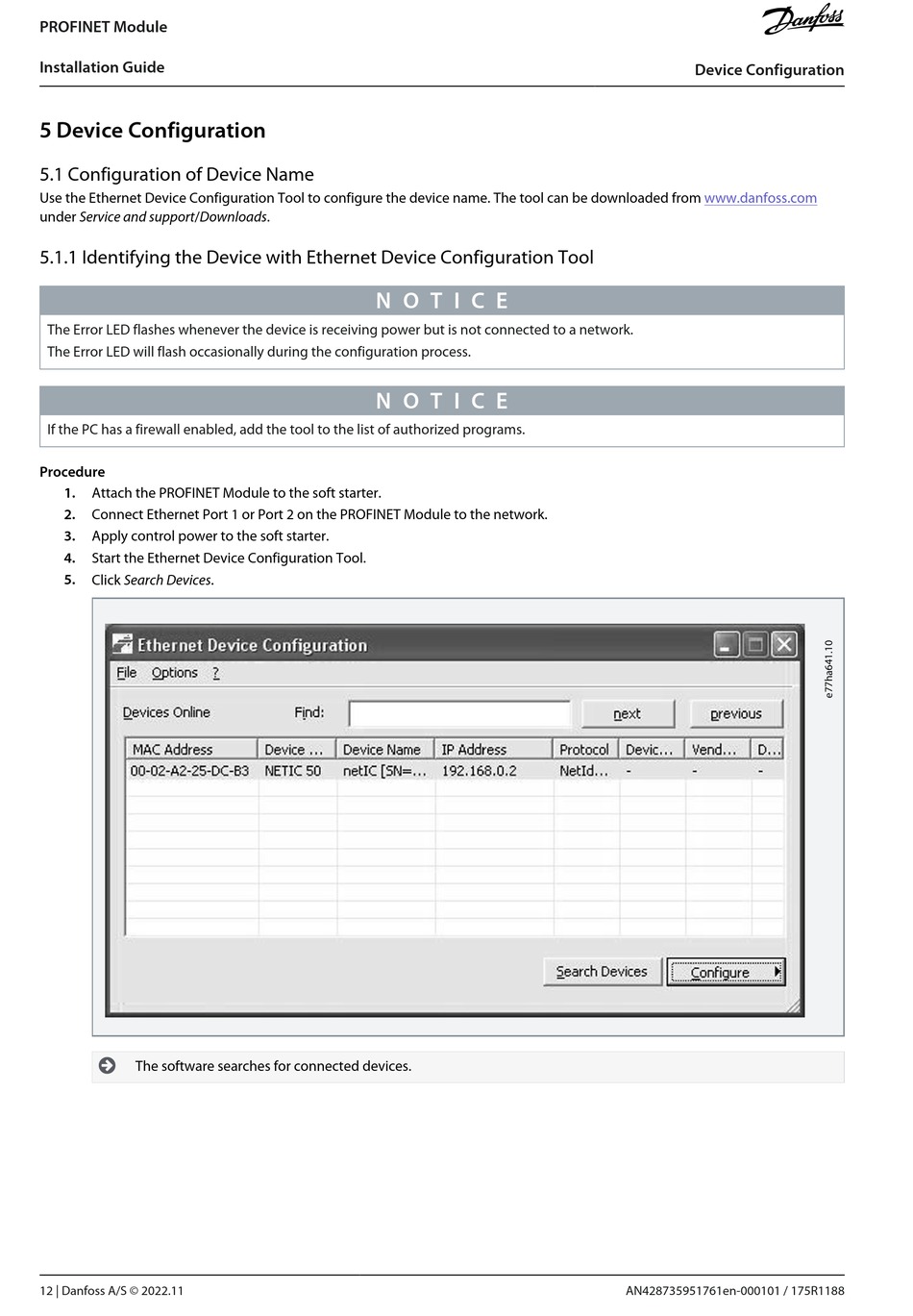

5.1 Configuration of Device Name

Use the Ethernet Device Configuration Tool to configure the device name. The tool can be downloaded from
under Service and support/Downloads.

5.1.1 Identifying the Device with Ethernet Device Configuration Tool

The Error LED flashes whenever the device is receiving power but is not connected to a network.
The Error LED will flash occasionally during the configuration process.
If the PC has a firewall enabled, add the tool to the list of authorized programs.
Procedure
1.
Attach the PROFINET Module to the soft starter.
2. Connect Ethernet Port 1 or Port 2 on the PROFINET Module to the network.
3.
Apply control power to the soft starter.
4. Start the Ethernet Device Configuration Tool.
5.
Click Search Devices.

The software searches for connected devices.
