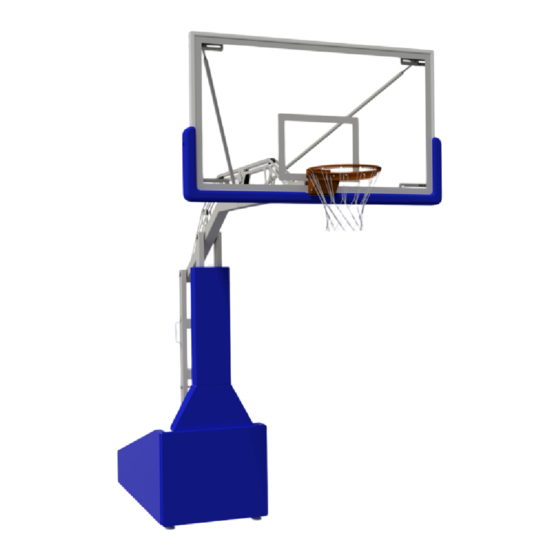

- Page 1 ELITE S AYPRO ERIES DJUSTABLE ORTABLE ACKSTOPS Installation and Operating Instructions Applicable Part Numbers/Models: PBEL66: Jaypro Elite 6600 PBEL96: Jaypro Elite 9600 5/14/19 www.jayprosports.com...
-
Page 2: Table Of Contents
ELITE Series Adjustable Portable Backstop Instructions Table of Contents Safety ......................1 Specifications ....................2 Introduction ....................2 Required Tools ....................3 Included Hardware & Components ............3 Miscellaneous Hardware ................3 ... -
Page 3: Specifications
If you require additional information or support to install your backstops, please contact the Jaypro Sports customer support team, Monday through Friday, 8:30AM to 5:00 PM (EST), at 1-800-243-0533. The guide is organized in the order of operations required for initial assembly, installation, and setup. -
Page 4: Required Tools
Before continuing, please verify that you have all the required hardware (included w/ unit) for installation and setup. If any of the following items are missing, contact the Jaypro Sports customer support team, Monday through Friday, 8:30AM to 5:00 PM (EST), at 1-800-243-0533. -
Page 5: Locating Devices
ELITE Series Adjustable Portable Backstop Instructions Locating devices Figure 5-2: Locator Pin Bushing (2X) Figure 5-3: Locator Pin (2X) Figure 5-4: Wire-snap safety pin for locator pins (2X) Anchor Kit (PBELKIT) Figure 5-6: Cover plate Figure 5-5: FP-89 Floor Anchor (1X) (for flaoting wood floors only) Figure 5-7: ½"-13 Eyebolt w/ Figure 5-8: Shackle (2X) -
Page 6: Backboard, Edge Pad & Rim
ELITE Series Adjustable Portable Backstop Instructions Backboard, Edge Pad & Rim Figure 5-11: Backboard Figure 5-10: Breakaway Rim (1X, Figure 5-12: Edge pad (72" board supplied w/ PBEL96 & model varies) (1X, model varies) PBEL66) Figure 5-13: Adjustable backboard support arm (2X). Backboard &... - Page 7 ELITE Series Adjustable Portable Backstop Instructions Figure 5-20: 3/8”-16 x 1” Carriage Bolt (4X) Figure 5-21: Clevis bracket (4X) Figure 5-22: 5/8”-11 Nylon Hex Nuts (4X) Figure 5-23: 5/8” Flat Washer (24X) Figure 5-24: 5/8”-11 x 2-1/2” Hex Bolt (4X) Figure 5-25: 5/8”-11 x 6”...
-
Page 8: Unpacking
ELITE Series Adjustable Portable Backstop Instructions Unpacking ! W A R N I N G ! IMPORTANT: DO NOT REMOVE J-HOOK HOLD DOWN CLAMP, CARGO STRAP, OR QUICK RELEASE PIN UNTIL THE BACKBOARD AND RIM HAVE BEEN INSTALLED. FAILURE TO COMPLY MAY RESULT IN SEVERE OR FATAL INJURY AS WELL AS SIGNIFICANT DAMAGE TO SURROUNDING STRUCTURES. - Page 9 ELITE Series Adjustable Portable Backstop Instructions 1. Carefully remove any outer wrap or packaging materials. a. Use caution when using a box cutter or other sharp objects to avoid scratching the powder-coated surfaces. b. Do not remove cargo straps (if installed) or j-hook until after the backboard is completely installed.
-
Page 10: Backboard & Rim Installation
ELITE Series Adjustable Portable Backstop Instructions Backboard & Rim Installation WARNING: DO NOT REMOVE J-HOOK, CARGO STRAPS (IF INSTALLED), OR QUICK-RELEASE PIN UNTIL THE BACKBOARD AND RIM HAVE BEEN INSTALLED. FAILURE TO COMPLY MAY RESULT IN SEVERE OR FATAL INJURY AS WELL AS SIGNIFICANT DAMAGE TO SURROUNDING STRUCTURES. - Page 11 ELITE Series Adjustable Portable Backstop Instructions Figure 7-3: Lock feet w/ Jam nut. Figure 7-4: Raise wheel to level feet. 5. Assemble adjustable support arms as shown below, note left and right hand threads. Do not force it. - 10 of 32- JSL-Inst039 www.jayprosports.com...
- Page 12 ELITE Series Adjustable Portable Backstop Instructions Figure 7-5: Backboard Support Arms 6. Support the backboard such that the mounting holes in the bottom middle of frame are in line with the bolt pattern on the end of the boom (Figure 7-7). Sawhorses or a forklift may be used if additional hands are not available to help (not a one-person job).
- Page 13 ELITE Series Adjustable Portable Backstop Instructions Figure 7-6: Backstop boom. - 12 of 32- JSL-Inst039 www.jayprosports.com...
- Page 14 ELITE Series Adjustable Portable Backstop Instructions 8. Level the backboard as shown below. 9. Attach both adjustable backboard support arms to the slots in boom using the 3/8”-16 x 1” carriage bolts (2X), 3/8-16” flange nuts (2X) as shown in below Figure 7-7. Hand-tighten the nuts; do not use a wrench.
- Page 15 ELITE Series Adjustable Portable Backstop Instructions 10. Slide the bolts into the slots of the top backboard. Fasten bolts to backboard using the 3/8”-16 x 1” carriage bolts(2X) and the 3/8” flanged nuts. Wrench tighten all nuts attaching support arms to boom and backboard.
- Page 16 ELITE Series Adjustable Portable Backstop Instructions 12. Remove front cover from supplied rim. 13. Fasten rim to board using the 3/8”-16 x 4½” carriage bolts (4X), 3/8” flat washers (4X) and 3/8” flanged nuts (4X) as shown in Figure 7-9. 14.
- Page 17 ELITE Series Adjustable Portable Backstop Instructions 3/8” x 4½” Carriage Bolt Figure 7-9: Insert hardware. Figure 7-10: Attach rim to board and boom. - 16 of 32- JSL-Inst039 www.jayprosports.com...
- Page 18 ELITE Series Adjustable Portable Backstop Instructions Adjust hex nuts on backboard to plumb rim. Make sure top of rim is inline with target Target - 17 of 32- JSL-Inst039 www.jayprosports.com...
- Page 19 ELITE Series Adjustable Portable Backstop Instructions Figure 7-11: Reattach rim cover. Follow instructions included with Rim to attach net. Follow instructions included with edge pad. - 18 of 32- JSL-Inst039 www.jayprosports.com...
-
Page 20: Raise Backstop
ELITE Series Adjustable Portable Backstop Instructions Raise Backstop WARNING: DO NOT REMOVE J-HOOK, SAFETY STRAP OR QUICK-RELEASE PIN UNLESS THE BACKBOARD AND RIM HAVE BEEN INSTALLED. FAILURE TO COMPLY MAY RESULT IN SEVERE OR FATAL INJURY AS WELL AS SIGNIFICANT DAMAGE TO SURROUNDING STRUCTURES. WARNING: DO NOT STAND DIRECTLY BEHIND UPRIGHTS WHEN RAISING OR LOWERING THE BACKSTOP. - Page 21 ELITE Series Adjustable Portable Backstop Instructions b. If the unit does not rise on its own (indicates that springs are correctly adjusted), completely remove J-hook and then reinstall the quick-release pin to lock in the storage position or refer to section 13 for instructions on how to raise the backstop.
-
Page 22: Set Rim Height/Adjust Leveling Feet
ELITE Series Adjustable Portable Backstop Instructions Figure 8-3: Lift handle on lower upright. Figure 8-4: Where to safely stand when raising/lowering backstop. 6. Raise backstop to maximum height (the uprights will reach a hard stop and will be fully vertical). c. - Page 23 ELITE Series Adjustable Portable Backstop Instructions Figure 9-1: Operate jack to lower wheels. Figure 9-2: Lower feet using 1-1/2” open wrench. Figure 9-3: Lock feet w/ Jam nut. Figure 9-4: Raise wheels. 5. Verify that the top of the rim is 10 feet off the ground. d.
-
Page 24: Padding Installation
ELITE Series Adjustable Portable Backstop Instructions 7. Lower the backstop to the transport position by removing the quick- release pin and pulling back on handles until backstop is fully lowered. a. Always stand on the same side of the unit as the ring on the quick-release pin when pulling the pin;... - Page 25 ELITE Series Adjustable Portable Backstop Instructions Figure 10-4: Side Pad Strap Assembly Figure 10-5: L-Clip (8X) Figure 10-6: Phillips Mach Screw w/ Grommet (6X) 1/4-20 x 5/8” (34X) 10.2 Padding Installation 1. Install the front pad: a. Upright will need to be reclined to one of the intermediate height positions to allow the "L"...
- Page 26 ELITE Series Adjustable Portable Backstop Instructions 2. Install the left and right side pads. a. Install L-clips to side pads as shown in Figure 10-8. b. Fit the pad onto the top horizontal 2x4 using the fastened L-Clips. c. Secure the side pad to the with C-Clips attach to the frame. U-Clips L-Clips Figure 10-8: Install side pads to frame using straps and L-Clips...
- Page 27 ELITE Series Adjustable Portable Backstop Instructions 1. Install pads with backstop at 10’0” height. 2. Install the upright pad(s) as shown below w/ Phillip screws & straps. Figure 10-10: X-Clip (3X) Webbing straps with plastic buckle (4x) Figure 10-11: PBEL96/66 upright pads. - 26 of 32- JSL-Inst039 www.jayprosports.com...
-
Page 28: Lowering Backstop For Transport
ELITE Series Adjustable Portable Backstop Instructions Lowering Backstop for Transport 1. Lower wheels (see Figure 9-1) until the feet are off floor and high enough to be clear of any potential obstacles, such as thresholds. 2. Remove quick-release pin from height adjust mechanism. 3. -
Page 29: Installing Locating Devices
ELITE Series Adjustable Portable Backstop Instructions Installing Locating Devices 1. Locate holes. There are two options for locating the holes for the anchor and locator bushings. Option 1: Locate the holes according to the diagram below that is appropriate for your backstop model: a. - Page 30 ELITE Series Adjustable Portable Backstop Instructions Figure 12-1: PBEL66 Locating and anchor holes locations. Figure 12-2: PBEL96 Locating and anchor holes locations. - 29 of 32- JSL-Inst039 www.jayprosports.com...
-
Page 31: Installing Anchor Kit
ELITE Series Adjustable Portable Backstop Instructions Installing Anchor Kit The anchor kit is included with the PBEL96 ONLY. See the Jaypro multi- sport catalog to order for use with the PBEL66 The anchor kit is supplied with the FP-89 floor anchor, for use with all floor types except floating wood floors. -
Page 32: Spring Adjustments
NEVER LOOSENED TO THE POINT WHERE NO THREADS ARE VISIBLE. Adjusting the lift-assist springs and should only be used by an experienced contractor/installer. Please contact the Jaypro Sports customer support team, Monday through Friday, 8:30AM to 5:00 PM (EST), at 1-800-243-0533 if assistance with locating an experienced professional is required. -
Page 33: Maintenance
Doublecheck that the board and rim are level and plumb and verify that all bolted connections are well fastened. If you require additional information or support maintaining your backstops, please contact the Jaypro Sports customer support team, Monday through Friday, 8:30AM to 5:00 PM (EST), at 1-800-243-0533. - 32 of 32- JSL-Inst039 www.jayprosports.com...
