Jaypro Sports ELITE Series Installation And Operating Instructions Manual

Adjustable portable backstops
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
REPLACING THE SHIPPING FEET
The front feet that are supplied with this unit are for transportation purposes, as they are subject to unusual wear and tear. An additional set
of permanent feet have been supplied and should be installed prior to placing the unit on the finished sports floor. After the new feet are
installed, ensure that the jam nut on each is securely tightened.
ATTACHING THE LOWER FRONT AND SIDE PROTECTION PADS
Additional mounting brackets have also been provided for installing the lower front pad and both side pads. These brackets are provided to
increase the holding capacity.

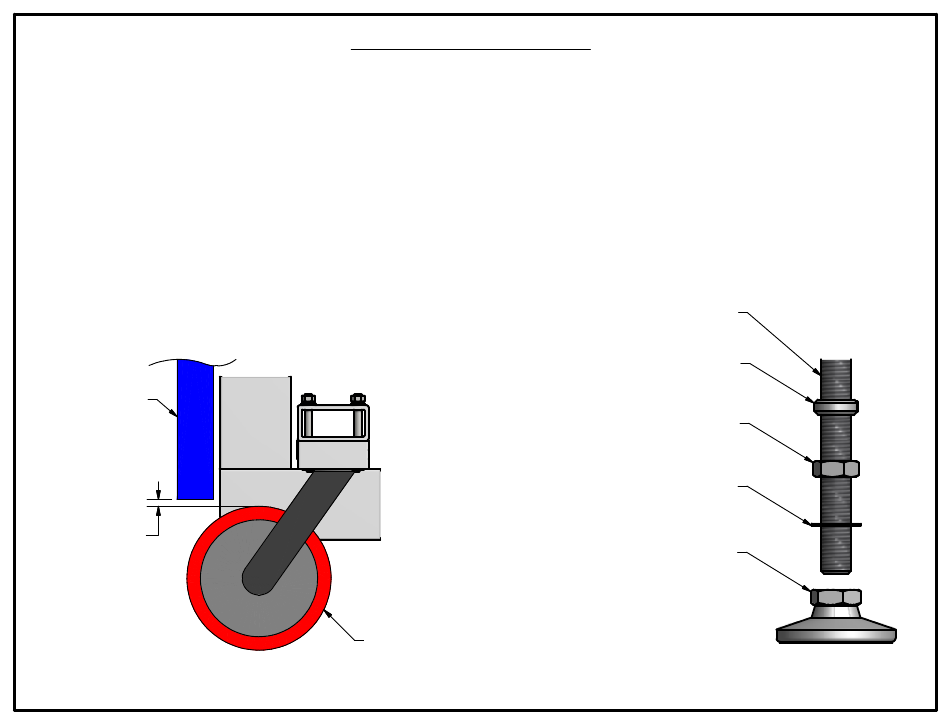

When installing the lower front pad refer to the illustration below to establish its proper height.
FRONT PAD
1/8" ~ 3/8"
IMPORTANT NOTICE
4" DIA x 1 7/8" LEVELING FEET
SWIVEL CASTER
ROTATED SO WHEEL STICKS OUT BEYOND FRAME
FRONT FEET ROD SCREW
FRONT FEET PAD SCREW
1"-8 JAM NUT
1"-8 INTERNAL LOCK WASHER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ELITE Series and is the answer not in the manual?

Questions and answers

Related Manuals for Jaypro Sports ELITE Series

Summary of Contents for Jaypro Sports ELITE Series

  • Page 1 IMPORTANT NOTICE REPLACING THE SHIPPING FEET The front feet that are supplied with this unit are for transportation purposes, as they are subject to unusual wear and tear. An additional set of permanent feet have been supplied and should be installed prior to placing the unit on the finished sports floor. After the new feet are installed, ensure that the jam nut on each is securely tightened.
  • Page 2 ELITE S AYPRO ERIES DJUSTABLE ORTABLE ACKSTOPS Installation and Operating Instructions Applicable Part Numbers/Models: PBEL54: Jaypro Elite 5400 PBEL66: Jaypro Elite 6600 PBEL96: Jaypro Elite 9600 JSL-Inst039 www.jayprosports.com...

  • Page 3: Table Of Contents

    ELITE Series Adjustable Portable Backstop Instructions Table of Contents Safety ........................ 2     Specifications ....................2     Introduction ..................... 2     Required Tools ....................3     Included Hardware & Components ............3     Miscellaneous Hardware ..............4  ...

  • Page 4: Safety

    GBA-642 1,600 lbs Introduction This guide describes the installation and use of the ELITE Series Adjustable Portable Backstops, models PBEL54, PBEL66, and PBEL96. When PBEL54 shipped with 72” board (optional upgrade), 1000 lbs of ballast is included. GBRUB-42 available as optional upgrade, must be specified at time of order...

  • Page 5: Required Tools

    Required Tools Before continuing, please verify that you have the following tools required to complete the installation and setup of your Elite series adjustable portable backstop.  Socket wrench with 24mm deep socket (supplied) ...

  • Page 6: Miscellaneous Hardware

    ELITE Series Adjustable Portable Backstop Instructions 5.1 Miscellaneous Hardware Figure 5-1: Quick-release pin for height adjustment (1X) 5.2 Locating devices Figure 5-2: Locator Pin Bushing (2X) Figure 5-3: Locator Pin (2X) Figure 5-4: Wire-snap safety pin for locator pins (2X) Figure 5-5: Locating Sticker (2X) 5.3 Anchor Kit (PBELKIT)

  • Page 7: Backboard

    ELITE Series Adjustable Portable Backstop Instructions Figure 5-8: ½"-13 Eyebolt w/ Figure 5-9: Figure 5-10: Twisted chain (8”) shoulder (1X) Shackle (2X) 5.4 Backboard Figure 5-11: Backboard (72" board supplied w/ PBEL96 & PBEL 66, 54" with PBEL54) Figure 5-12: Left (viewed from court) backboard Figure 5-13: Right (viewed from court) backboard support arm (1X).

  • Page 8: Rim

    ELITE Series Adjustable Portable Backstop Instructions Figure 5-17: 5/16” Split Washer (2X) Figure 5-18: 3/8”-16 x 1-1/2” Hex Bolt (2X) Figure 5-19: 3/8” Flat Washer (2X) Figure 5-20: 3/8”-16 x 1” Carriage Bolt Figure 5-21: 3/8” Split Washer (2X) Figure 5-22: 3/8”-16...

  • Page 9: Installing Backboard/Rim

    ELITE Series Adjustable Portable Backstop Instructions Installing Backboard/Rim WARNING: DO NOT REMOVE SAFETY STRAP OR QUICK-RELEASE PIN UNTIL THE BACKBOARD AND RIM HAVE BEEN INSTALLED. FAILURE TO COMPLY MAY RESULT IN SEVERE OR FATAL INJURY AS WELL AS SIGNIFICANT DAMAGE TO SURROUNDING STRUCTURES.
  • Page 10 ELITE Series Adjustable Portable Backstop Instructions Figure 6-3: Install backboard support arms to slots in boom. 3. Support backboard such that the mounting holes in the bottom middle of frame are in line with the bolt pattern on the end of the boom (Figure 6-4).
  • Page 11 ELITE Series Adjustable Portable Backstop Instructions 8. Remove front cover from supplied rim. 9. Fasten rim to board using the 3/8”-16 x 3¾” hex bolts (4X), 3/8” flat washers (8X), 3/8” split washers (4X), and 3/8” flanged nuts (4X) as shown in Figure 6-6.
  • Page 12 ELITE Series Adjustable Portable Backstop Instructions Figure 6-5: Installation of backboard to boom. - 10 of 28- JSL-Inst039 www.jayprosports.com...
  • Page 13 ELITE Series Adjustable Portable Backstop Instructions Figure 6-6: Attach rim to board. - 11 of 28- JSL-Inst039 www.jayprosports.com...

  • Page 14: Unpacking

    ELITE Series Adjustable Portable Backstop Instructions Unpacking WARNING: DO NOT REMOVE SAFETY STRAP OR QUICK-RELEASE PIN UNTIL THE BACKBOARD AND RIM HAVE BEEN INSTALLED. FAILURE TO COMPLY MAY RESULT IN SEVERE OR FATAL INJURY AS WELL AS SIGNIFICANT DAMAGE TO SURROUNDING STRUCTURES.

  • Page 15: Set Foot Stops

    ELITE Series Adjustable Portable Backstop Instructions Set Foot Stops WARNING: DO NOT STAND DIRECTLY BEHIND UPRIGHTS WHEN RAISING OR LOWERING THE BACKSTOP. SEE Figure 8-1 FOR DETAILS ON WHERE TO SAFELY POSITION YOURSELF WHEN RAISING/LOWERING THE BACKSTOP. WARNING: BE SURE THAT AREA WITHIN 8 FEET (2.5 METERS) IS CLEAR OF BYSTANDERS BEFORE RAISING OR LOWERING.
  • Page 16 ELITE Series Adjustable Portable Backstop Instructions 3. Stand to one side of the unit and lift one of the two handles on the lower upright (Figure 8-2). a. If raising the backstop is too strenuous obtain assistance before attempting to raise.

  • Page 17: Padding Installation

    ELITE Series Adjustable Portable Backstop Instructions Figure 8-3: Tighten set screws on foot stops. CAUTION: Once the foot stops are set, never apply excessive force when raising or lowering the feet. If too much resistance is encountered, remove the front padding and verify that the foot stops have not become undone and that there are no objects obstructing the feet.

  • Page 18: Included Padding

    ELITE Series Adjustable Portable Backstop Instructions 9.1 Included Padding Figure 9-1: Front Pad, (1X) Figure 9-2: Side Pads (1X Right, 1X Left) PBEL54/PBEL6 PBEL96 Figure 9-3: Top Pad (1X, PBEL66/PBEL96 Only) Figure 9-4: Upright Pad (1X) Figure 9-5: U-Clip (10X) Figure 9-6: L-Clip (5X) Figure 9-7: Wood screws –...

  • Page 19: Pbel66/96 Padding Installation

    ELITE Series Adjustable Portable Backstop Instructions 9.2 PBEL66/96 Padding Installation 1. Raise the uprights to 10’0” height. 2. Install the top pad on top of base frame as shown below. Figure 9-8: Top pad installation. 3. Install the front pad: a.
  • Page 20 ELITE Series Adjustable Portable Backstop Instructions e. Fit the pad onto the top horizontal 2x4 using the fastened L- clips. f. Secure the front pad to the bottom front 2x4 with two u- brackets. g. Replace the top pad. 4. Install the left and right side pads.
  • Page 21 ELITE Series Adjustable Portable Backstop Instructions Figure 9-11: Install side pads to frame using U- and L-Clips 5. Install the upright pads: a. Fasten the upright pad to the front using the hook-and-loop straps. b. Secure the upright pad in place by fastening an L-Clip upside...

  • Page 22: Pbel54 Padding Installation

    ELITE Series Adjustable Portable Backstop Instructions Figure 9-12: L-Clips fastened to the front pad before U-Clips. 9.3 PBEL54 Padding Installation 1. Install the left and right side pads. a. Locate the side pads by aligning the holes on the inside faces of the pads with the hubs on the sides PBEL base frame (Figure 9-10).

  • Page 23: Installing Locating Devices

    ELITE Series Adjustable Portable Backstop Instructions Figure 9-13: Fasten front pad with U-Clips for PBEL54. 3. Install the upright pads: c. Fasten the upright pad to the front using the hook-and-loop straps. d. Secure the upright pad in place by fastening an L-Clip upside...

  • Page 24: Installation Of Locating Bushings

    ELITE Series Adjustable Portable Backstop Instructions The advantage of using the stickers is that they do not require modification to the flooring. They do not, however, guarantee accuracy or repeatability of location and, in time, may need to be replaced.
  • Page 25 ELITE Series Adjustable Portable Backstop Instructions Figure 10-1: PBEL54 Locating and anchor holes and sticker locations. Figure 10-2: PBEL66 Locating and anchor holes and sticker locations. - 23 of 28- JSL-Inst039 www.jayprosports.com...

  • Page 26: Location Of Locating Stickers

    ELITE Series Adjustable Portable Backstop Instructions Figure 10-3: PBEL96 Locating and anchor holes and sticker locations. 10.2 Location of Locating Stickers Locate and apply the stickers according to the diagram above that is appropriate for your backstop model: a. PBEL54 (54” overhang): refer to Figure 10-1 b.

  • Page 27: Raising/Lowering Backstop

    ELITE Series Adjustable Portable Backstop Instructions For installation in all floor types other than floating wood floors, Refer to FP- 89 installation instructions (included with kit) for details. For installation in floating wood floors ONLY, unscrew the top plate from the FP-89 floor anchor (Figure 11-1) and install with the brass cover plate (Figure 5-7).

  • Page 28: Raising Backstop

    ELITE Series Adjustable Portable Backstop Instructions WARNING: DO NOT REMOVE SAFETY STRAP OR QUICK-RELEASE PIN UNTIL THE BACKBOARD AND RIM HAVE BEEN INSTALLED. FAILURE TO COMPLY MAY RESULT IN SEVERE OR FATAL INJURY AS WELL AS SIGNIFICANT DAMAGE TO SURROUNDING STRUCTURES.

  • Page 29: Lowering Backstop

    NEVER LOOSENED TO THE POINT WHERE NO THREADS ARE VISIBLE. Adjusting the lift-assist springs and should only be used by an experienced contractor/installer. Please contact the Jaypro Sports customer support team, Monday through Friday, 8:30AM to 5:00 PM (EST), at 1-800-243-0533 if assistance with locating an experienced professional is required.

  • Page 30: Maintenance

    14 Maintenance Your ELITE series portable backstop is designed to provide years of play; however, it is recommended that they be inspected at least once every season, for signs of excessive wear. Key areas to inspect include (but are not limited to): ...
