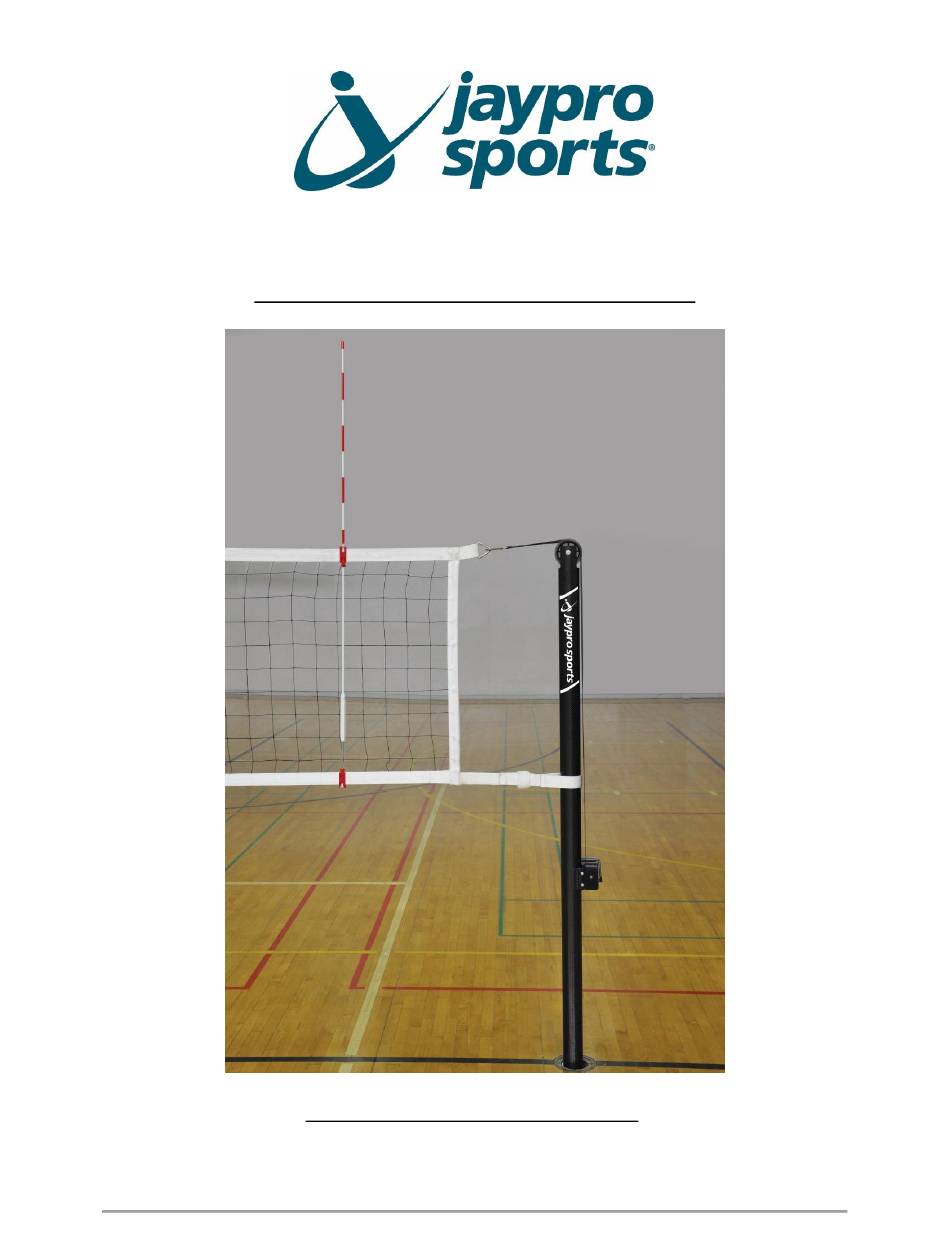

- Page 1 AYPRO ARBON YSTEM Installation and Operating Instructions Applicable Part Numbers/Models: PVB-8000: LadyPro Carbon 3-1/2” System PVB-8500: LadyPro Carbon 3” System JSL-Inst040 www.jayprosports.com...
-
Page 2: Table Of Contents
PVB Series Collegiate Net System Instructions Table of Contents Safety ........................ 2 Specifications ....................2 Introduction ..................... 2 Required Tools ....................3 Included Hardware & Components ............3 5.1 System Components................4 5.2 Hardware ....................5 Assembly ......................6 Maintenance ....................8 - 1 of 8- www.jayprosports.com UPDATED 12/12/2018... -
Page 3: Safety
PVB Series Collegiate Net System Instructions Safety • WARNING: Do not attempt to remove the height adjuster pin if the net is under tension. • WARNING: Always use protective padding around each upright during use. • IMPORTANT: Follow all warning labels on equipment. •... -
Page 4: Required Tools
If you require additional information or support to install or operate your volleyball system, please contact the Jaypro Sports customer support team, Monday through Friday, 8:30AM to 5:00 PM (EST), at 1-800-243-0533. Figure 3-1: Correct Ground Sleeve Dimensions... -
Page 5: System Components
Before continuing, please open all packages to verify that you have all the required hardware for installation and setup. If any of the following items are missing, contact the Jaypro Sports customer support team, Monday through Friday, 8:30AM to 5:00 PM (EST), at 1-800-243-0533. -
Page 6: Hardware
PVB Series Collegiate Net System Instructions Figure 5-6: Antennae and Net Tapes (VBA-80, 1 pair) Figure 5-7: Anchor Strap (PVB-604, 1X) 5.2 Hardware Figure 5-9: Button-Head Cap Screw (HS5201, 1X) Figure 5-10: Acorn Nut (HN809, 1X) Figure 5-3: Spacer Bearing (HM6117, 1X) - 5 of 8- www.jayprosports.com UPDATED 12/12/2018... -
Page 7: Assembly
PVB Series Collegiate Net System Instructions Assembly 1. Install each upright into the ground sleeves*. * The bottom 10 inches of the standards have been covered with an outer layer to improve fit in most ground sleeves. If fit is too tight, cut outer layer with knife and remove. - Page 8 PVB Series Collegiate Net System Instructions 5. Install the anchor strap to the upright without the winch (Figure 6-2). Figure 6-2: Install anchor strap. 6. Attach one end of net to anchor strap, then attach other end to winch strap (Figure 6-3).
-
Page 9: Maintenance
▪ If you require additional information or support maintaining your volleyball system, please contact the Jaypro Sports customer support team, Monday through Friday, 8:30AM to 5:00 PM (EST), at 1-800-243-0533. NCAA and NFHS rules stipulate that there be no more than ¾” of sag in the net headband when fully tensioned.
