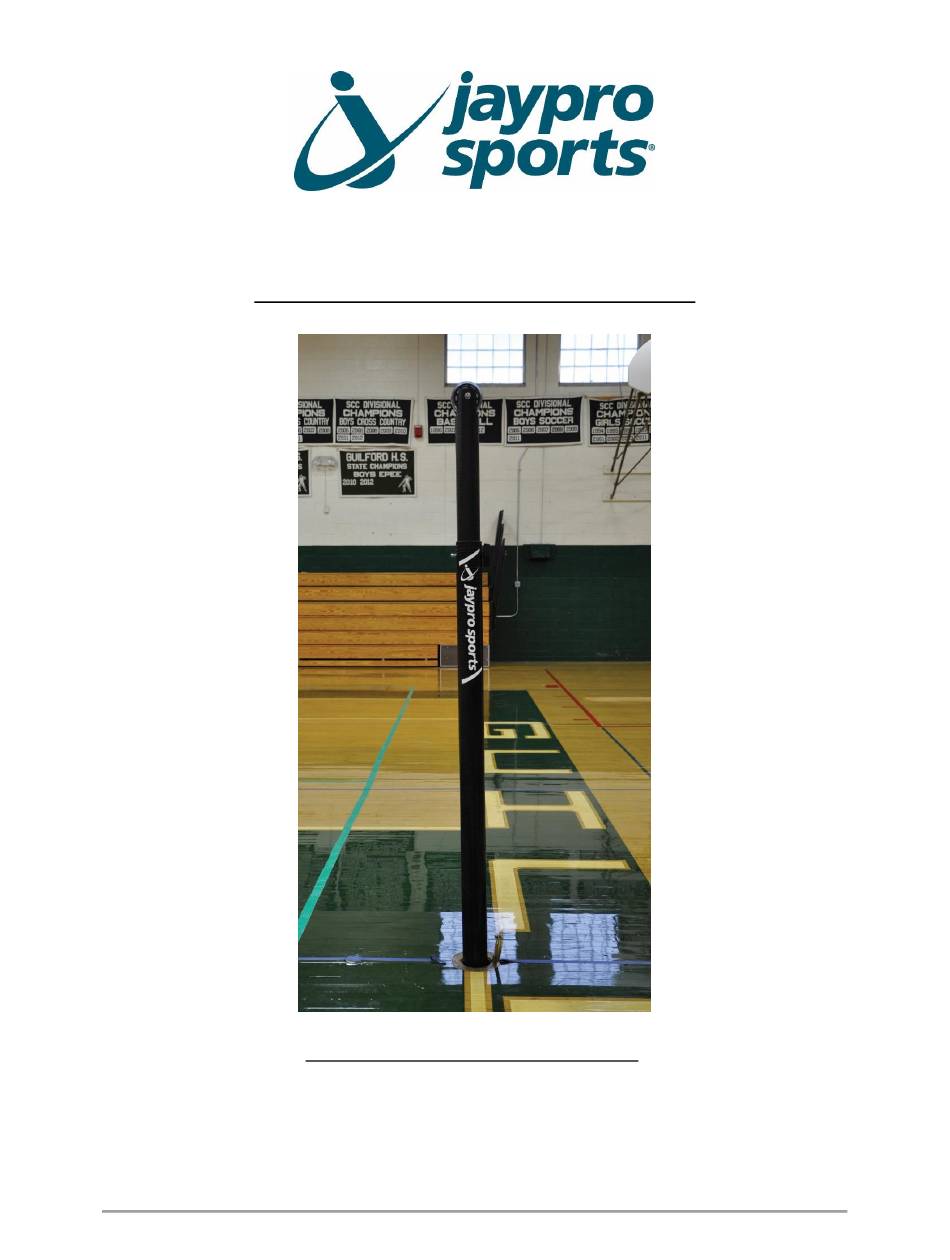

- Page 1 3” OD N AYPRO ARBON LTRALITE YSTEM Installation and Operating Instructions Applicable Part Numbers/Models: PVB-9500: Carbon Ultralite 3” System JSL-Inst042 www.jayprosports.com...
-
Page 2: Table Of Contents
PVB-9500 Jaypro Carbon Ultralite 3” OD Net System Instructions Table of Contents Safety ........................ 2 Specifications ....................2 Introduction ..................... 2 Required Tools ....................3 Included Hardware & Components ............4 5.1 System Components (ACCESSORIES MAY VARY) ......4 5.2 Hardware ....................5 Assembly ...................... -
Page 3: Safety
If you require additional information or support to install or operate your volleyball system, please contact the Jaypro Sports customer support team, Monday through Friday, 8:30AM to 5:00 PM (EST), at 1-800-243-0533. NCAA and NFHS rules require that the upright standards must be installed at least 3’3”... -
Page 4: Required Tools
PVB-9500 Jaypro Carbon Ultralite 3” OD Net System Instructions Figure 3-1: Correct Ground Sleeve Dimensions Required Tools Before continuing, please verify that you have the following tools required to complete the installation and setup of your PVB Series Collegiate Net System. -
Page 5: Included Hardware & Components
Before continuing, please open all packages to verify that you have all the required hardware for installation and setup. If any of the following items are missing, contact the Jaypro Sports customer support team, Monday through Friday, 8:30AM to 5:00 PM (EST), at 1-800-243-0533. -
Page 6: 5.2 Hardware
PVB-9500 Jaypro Carbon Ultralite 3” OD Net System Instructions Figure 5-5: Antennae and Net Tapes (VBA-80, 1 pair) 5.2 Hardware Figure 5-6: Net extension cord 31 inches (PVBN6R2, 2X) Figure 5-7: Socket Cap Screw (HS5082, 1X) Figure 5-8: Centering Strap (PVB604, 1X) -
Page 7: Assembly
PVB-9500 Jaypro Carbon Ultralite 3” OD Net System Instructions Assembly 1. Install each upright into the ground sleeves. * The bottom 10 inches of the standards have been covered with an outer layer to improve fit in most ground sleeves. If fit is too tight, cut outer layer with knife and remove. - Page 8 PVB-9500 Jaypro Carbon Ultralite 3” OD Net System Instructions 5. Fasten anchor strap assembly to non-winch pole with the button head scre, spacer, and acorn nut as shown below. Figure 6-2: Anchor strap installation. 6. Install net extension cords to the winch strap and anchor strap assembly and install carabiners to the free ends of net extension cords (Figure 6-3).
- Page 9 PVB-9500 Jaypro Carbon Ultralite 3” OD Net System Instructions 7. Set the height of the uprights using the installed height adjust pin (Figure 6-4). WARNING: Release tension from the net, if installed, before removing height adjust pin. Figure 6-4: Set upright height.
-
Page 10: Maintenance
▪ Screws and nuts ▪ If you require additional information or support maintaining your volleyball system, please contact the Jaypro Sports customer support team, Monday through Friday, 8:30AM to 5:00 PM (EST), at 1-800-243-0533. - 9 of 9- www.jayprosports.com UPDATED 12/12/2018...
