Reflector Housing Assembly - ETC Source Four Assembly Manual

Reflector Housing Assembly

5
10
13
9
4
Reference Part
Number Number
1 7060A2013-K
2 7060A2019-K
3 7060A3006
4 7060A3019
5 7060A3058
6 7060A3080
7 7060A4008-01
8 7060A4010
9 7060A4015
10 HW5125
11 HW5126
12 HW5127
13 HW5193
14 HW5197
15 HW752
16 HW8144
N o t e :
8
All manuals and user guides at all-guides.com
1
2
16
11

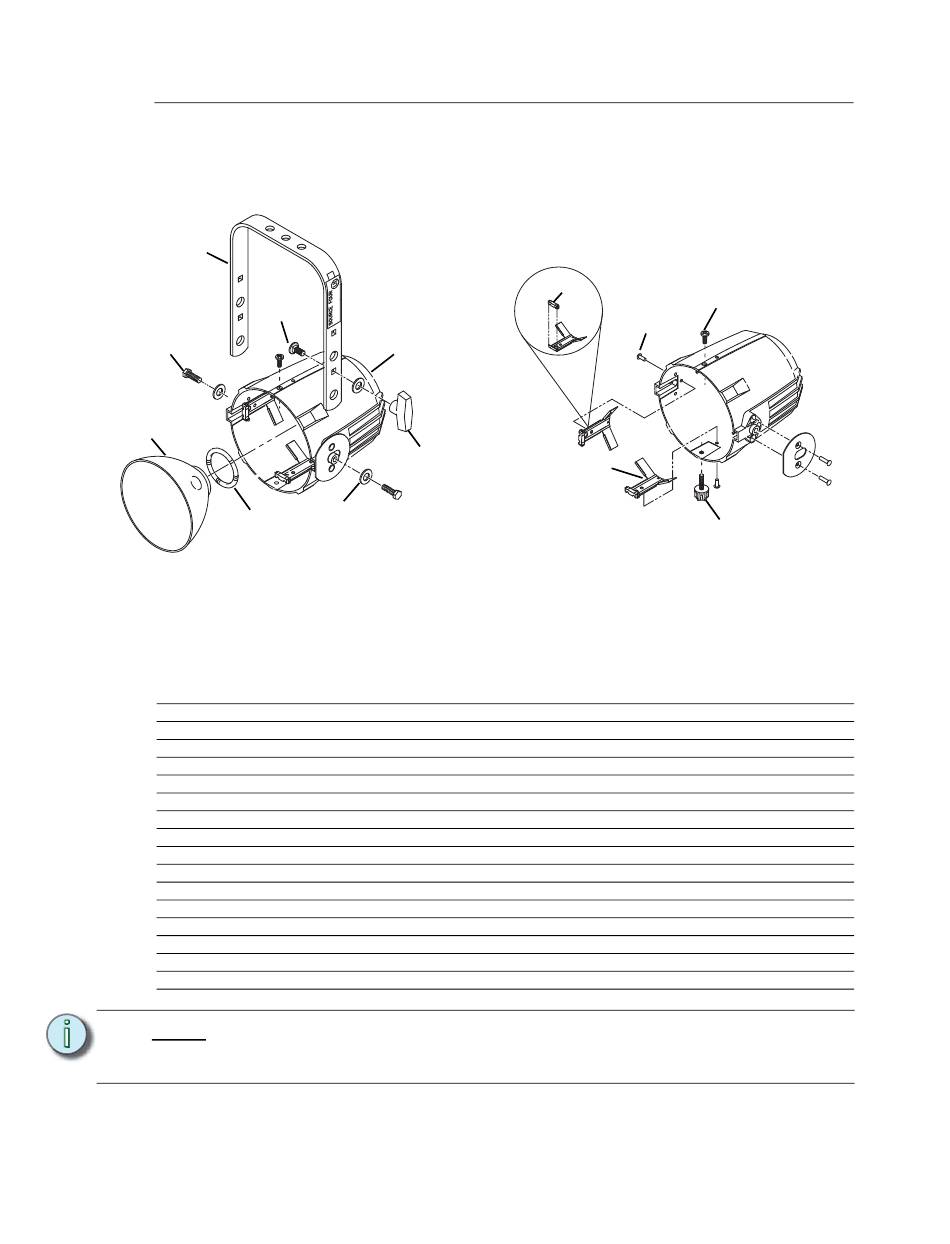

Figure 8
Description
Reflector housing rivet assembly, single clutch, Black
Reflector housing rivet assembly, double clutch, Black
Clip, reflector retainer
Spring, reflector support
Bracket, Yoke, Black
Light leak baffle, Black
Knob set with male insert
Bushing, gate
Reflector, molded glass, coated
Bolt, carriage 5/16-18 x 3/4" LG
Washer, flat, 5/16, black zinc
Nut, hex, 5/16-18
Bolt, hex, 5/16-18 x 3/4", black zinc
Screw, PH, 1/4-20 x 5/8", black zinc
Rivet, machine, 3/16 x 31, oval head, black zinc
Handle, yoke, knob, 5/16-15, Black
Any part that is indicated as "Black" may be also ordered in white or silver. When
ordering white, use the part number suffix -1, and for silver, use the part number
suffix -5.
8
14
15
3
7
Double-clutch reflector housing
for 5°and 10° fixtures.
Source Four Assembly Guide
Quantity
Required
1
1
4
1
1
2
1
4
1
2
4
2
2
1
4
2
