Assembling Lamp Socket - ETC Source Four Assembly Manual

A s s e m b l i n g l a m p s o c k e t
Tools Required:
• Open-end adjustable wrench or a 7/16" socket
• Needle-nose pliers
• #2 Phillips screwdriver
Step 1:
Step 2:
Step 3:
Step 4:
Step 5:
Lamp Burner Assembly
All manuals and user guides at all-guides.com
30
9

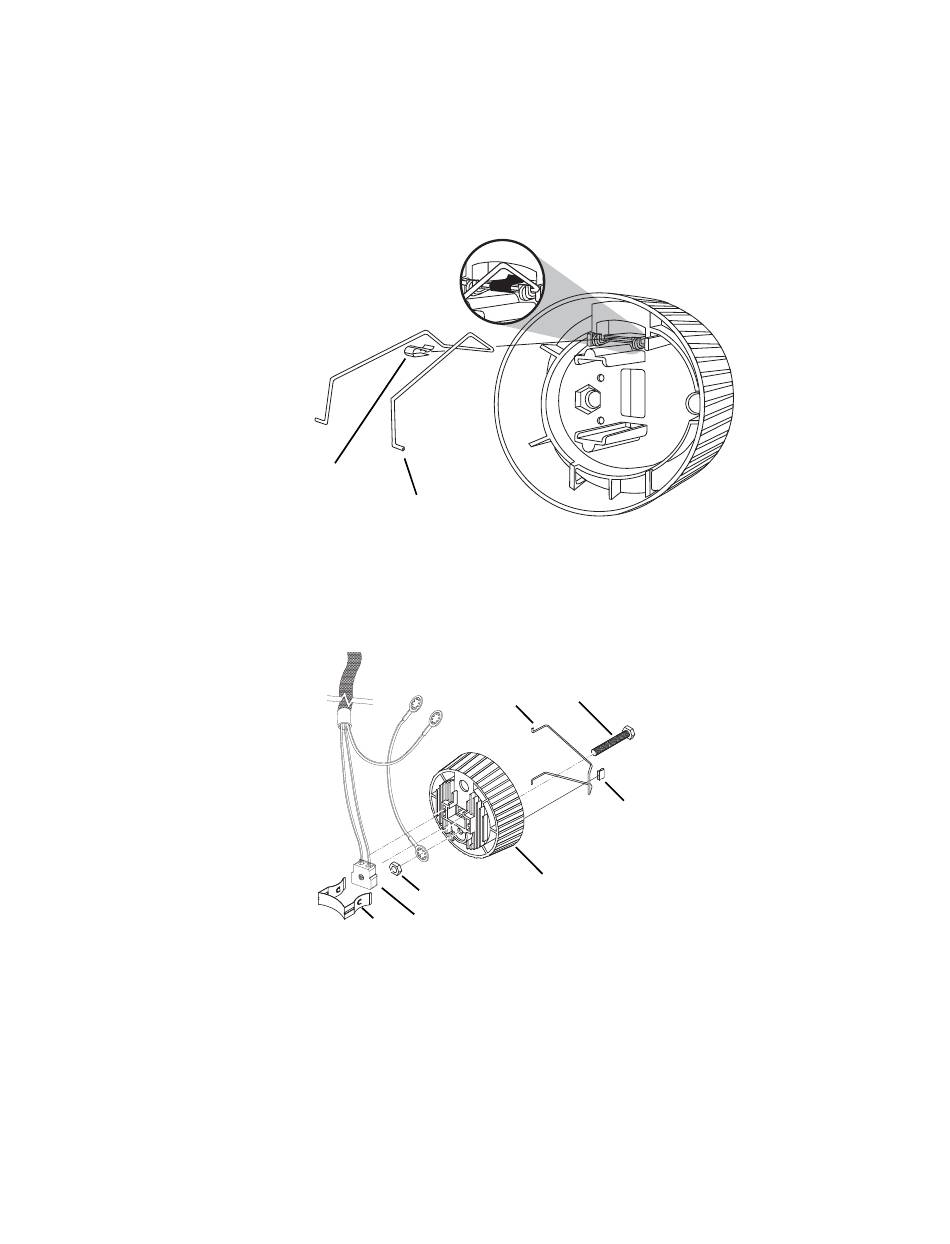

Set the crossbar of the retainer clip (9) under the two hooks on the clip bracket
as shown in Figure 3.
Place the Tinnerman clip (30) over the retainer clip crossbar between the two
hooks and press it down firmly until it snaps into place.
18
17
25
19
5
Insert the bolt (23) through the light baffle socket casting (3). See
Install the green ground wire assemblies (17 and 18) on the bolt (23) with the
prongs on the crimped connectors toward the casting. Run both wires through
the indent in the lip around the bolt hole. Secure with nut (25) and tighten
securely (60 inch pounds).
Place the socket assembly (19) into the light baffle socket casting (3). Be sure it
is well seated.
Figure 3
23
9
30
3
Figure 4
Figure 4.
5
