Lamp Burner Assembly

7 7
27
6
11
Reference Part
Number Number
1 7060A1033
2 7060A2015
3 7060A3007
4 7060A3011
5 7060A3012
6 7060A3025
7 7060A3055
8 7060A3056
9 7060A3085
10 7060A4007
11 7060A4008-02
12 7060A4011
13 7060A4019
14 7060A4037
15 7060A4094
16 7060A4095
17 7060B7003
18 7060B7007
19 7060B7019
20 HW2125
21 HW2181
22 HW3103
Lamp Burner Assembly
All manuals and user guides at all-guides.com
4
12
10
24
28
26
29
22
8
13
Description
Lamp retainer retrofit kit (Note: Does not include socket)
Light baffle retrofit kit
Includes socket w/ mounting hardware and sleeve
Socket, light baffle casting (Note: For all related fixtures regardless
of color)
Hub, index casting
Spring, lamp retainer
Screw, 1/4-20 x 1.55 knurled head
Housing, socket, casting, Black
Clamp, strain relief, Black
Lamp retainer wire
Knob, X-Y, lamp set
Knob, Z, lamp set w/ female insert
Bushing cup
Label, Fixture Warning
Handle, Insulated Rear, Black
750W Handle label, Black
Label, 750W Handle, White
48" Source Four ground wire assembly
W420 wire, 16 Awg, 200C/300V, green, UL 1180/CSA w/ J490T
lugs
4" Source Four ground wire assembly
W420 wire, 16 Awg, 200C/300V green, UL 1180/CSA w/ J490T
lugs
S4 UL Socket Assy
Screw, 6-32 x 3/8" PhFHTC (lamp blocking screw not pictured)
Screw, self tap, 6-32 x 5/8, black zinc
Screw, 8-32 x 5/8 PhFHMS, black zinc
18
31
17
3
25
19
5
9 23
30
21
14

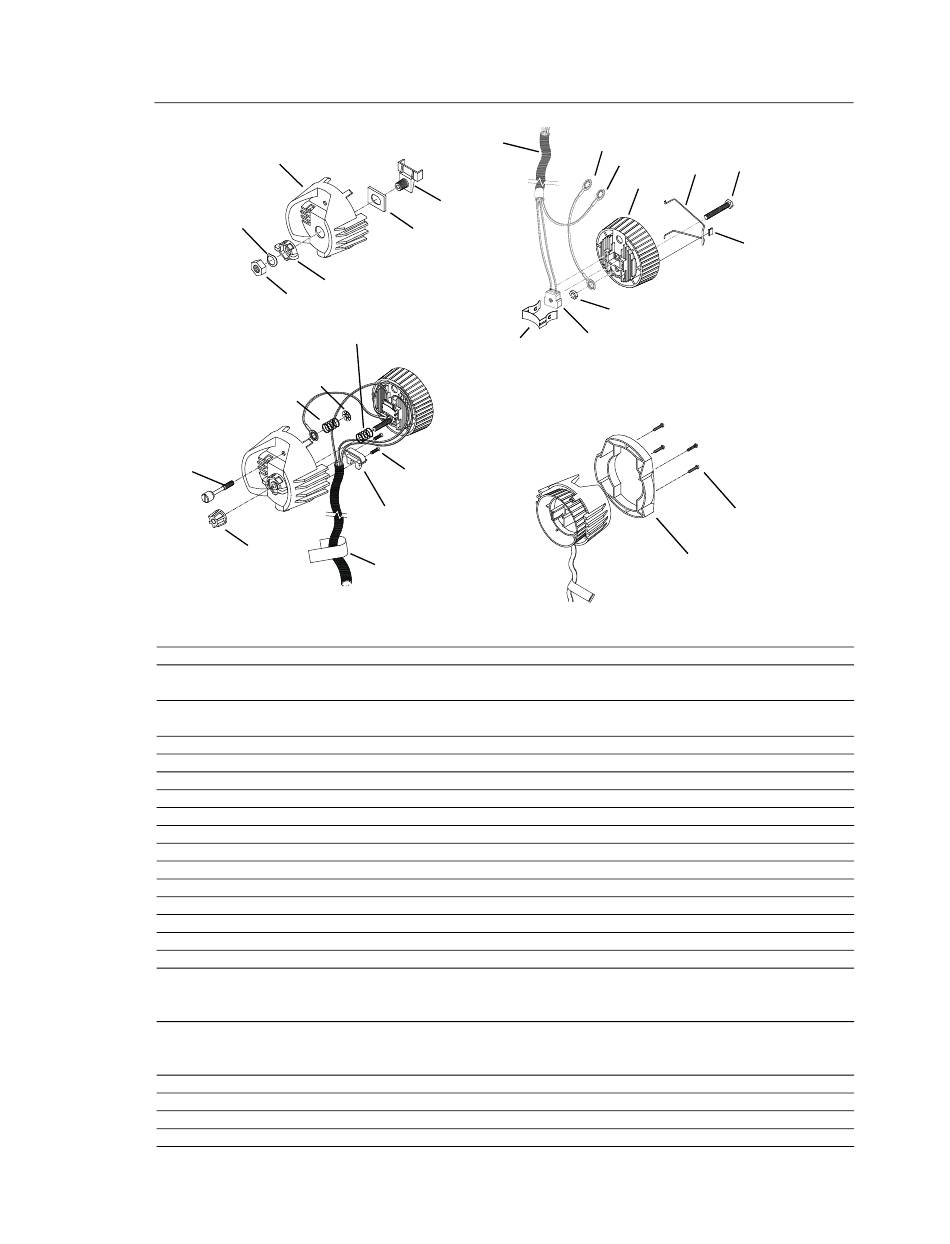

Figure 2
