Lens Tubes - 19° To 50 - ETC Source Four Assembly Manual

Lens Tubes - 19° to 50°
Reference Part
Number Number
1 7060A3169
2 7060A3171
3 7060A4077
4 7060A4001
5 7060A4020
6 7060A4021
7 7060A4004
8 7060A3079
9 7060A4008-01
10 7060A4009
11 7060A4012
12 HW3154
13 HW5143
14 HW534
15 HW750
16 7060A4033
17 7060A4034
18 7060A4035
19 7060A4036
20 7060A4073
21 7060A4074
22 7060A4075
23 7060A4076
N o t e :
14
All manuals and user guides at all-guides.com
12
10
1
14
15
8
Description
Lens Tube, left casting, Black (rev. J begins 01/06 to present)
Lens Tube, right casting, Black (rev J. begins 01/06 to present)
Aspheric lens, 19° (begins 10/98)
Aspheric lens, 26°
Meniscus lens (front), 36°
Bi-convex lens (back), 36°
Aspheric lens, 50°
Clip, gel retainer, 90° bend
Knob set with male insert
Bushing, guide
Pad, lens support
Screw, Phillips, 8-32 x 5/8 Taptite
Washer, flat fiber
Nut, Hex, 1/4-20, black zinc
Spring, retainer
19° Lens tube label, white text (for black fixtures)
26° Lens tube label, white text (for black fixtures)
36° Lens tube label, white text (for black fixtures)
50° Lens tube label, white text (for black fixtures)
19° Lens tube label, black text (for white fixtures)
26° Lens tube label, black text (for white fixtures)
36° Lens tube label, black text (for white fixtures)
50° Lens tube label, black text (for white fixtures)
Any part that is indicated as "Black" may be also ordered in white or silver. When
ordering white, use the part number suffix -1, and for silver, use the part number
suffix -5.
2
9
13
3
11
4
5
6
7
Note: Lenses are degree
specific. Do not interchange
lenses (i.e. do not place a
19° lens in a 26° slot).

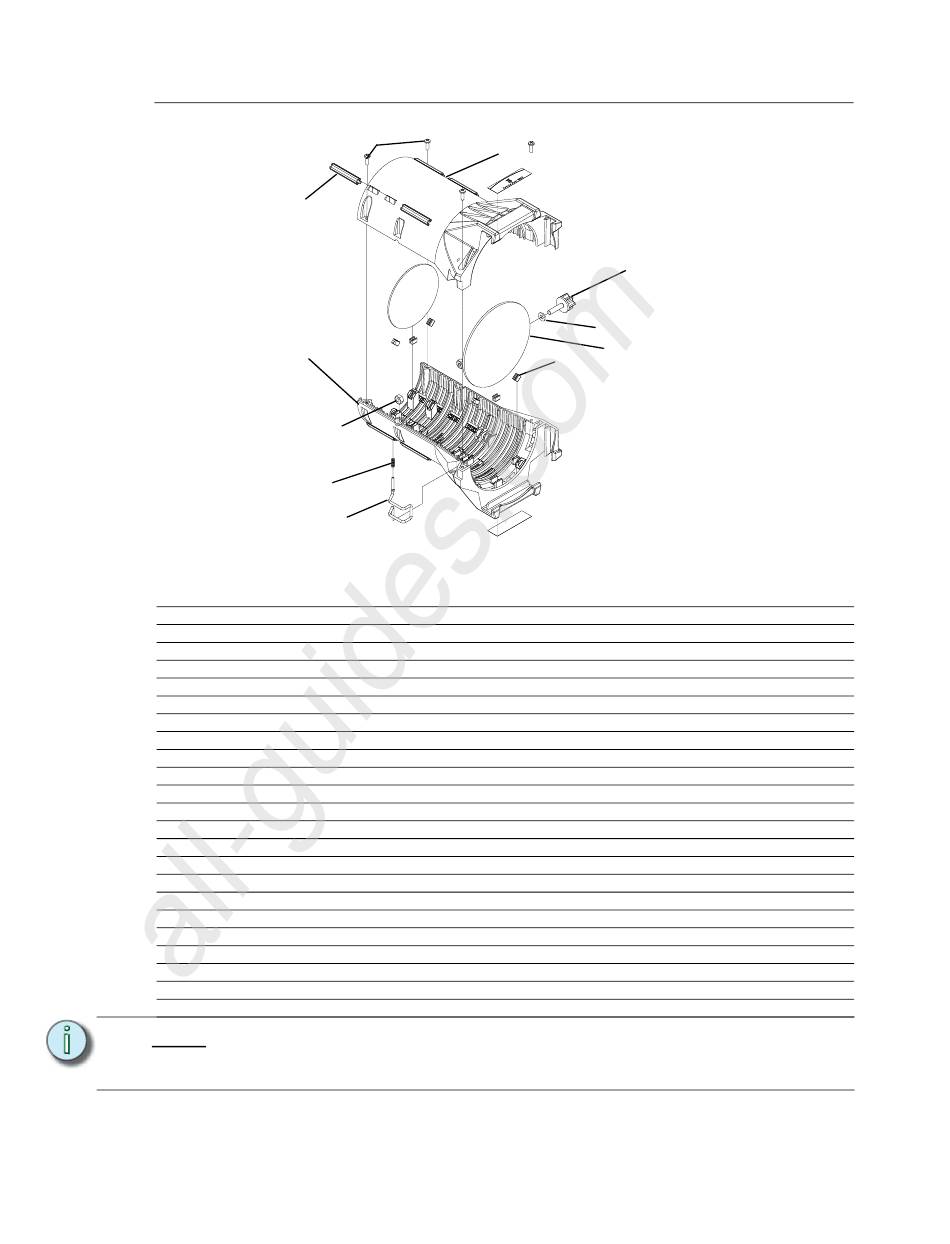

Figure 14
Quantity
Required
1
1
1
1
1
1
1
1
1
8
5
4
1
2
1
1
1
1
1
1
1
1
1
Source Four Assembly Guide
