Basic Fixture - ETC Source Four Assembly Manual

Basic Fixture

8
9
Color frame
10
11
12
13
14
15
16
Gel retainer
Reference Part
Number Number
1 7060A2008
2 7060A2011-K
3 7060A2011-K1
4 7060A2020-K
5 7060A2020-K1
6 7060A2012-K
7 7060A2012-K1
8 7060A2000-K
9 7060A2001-K
10 7060A2050-K
11 7060A2002-K
12 7060A2003-K
13 7060A2004-K
14 7060A2005-K
15 7060A2051-K
16 7060A2052-K
17 7060A4008-01
18 HW5143
19 HW5197
N o t e :
Basic Fixture
All manuals and user guides at all-guides.com
6
7
clip
Description
Lamp burner assembly rated up to 750W, Black
Reflector housing assembly, single clutch, Black
Reflector housing assembly, single clutch, White
Reflector housing assembly, double clutch, Black
Reflector housing assembly, double clutch, White
Shutter barrel assembly, Black
Shutter barrel assembly, White
5° lens tube, with knob
10° lens tube, with knob
14° lens tube, with knob
19° lens tube (6 x 16), with knob
26° lens tube (6 x 12), with knob
36° lens tube (6 x 9), with knob
50° lens tube (4.5 x 6), with knob
70° lens tube, with knob
90° lens tube, with knob
Knob set with male insert
Washer, flat fiber
Screw, 1/4-20 x 5/8, black zinc
Any part that is indicated as "Black" may be also ordered in white or silver. When
ordering white, use the part number suffix -1, and for silver, use the part number
suffix -5.
19
18
17
1
2
3
4
5

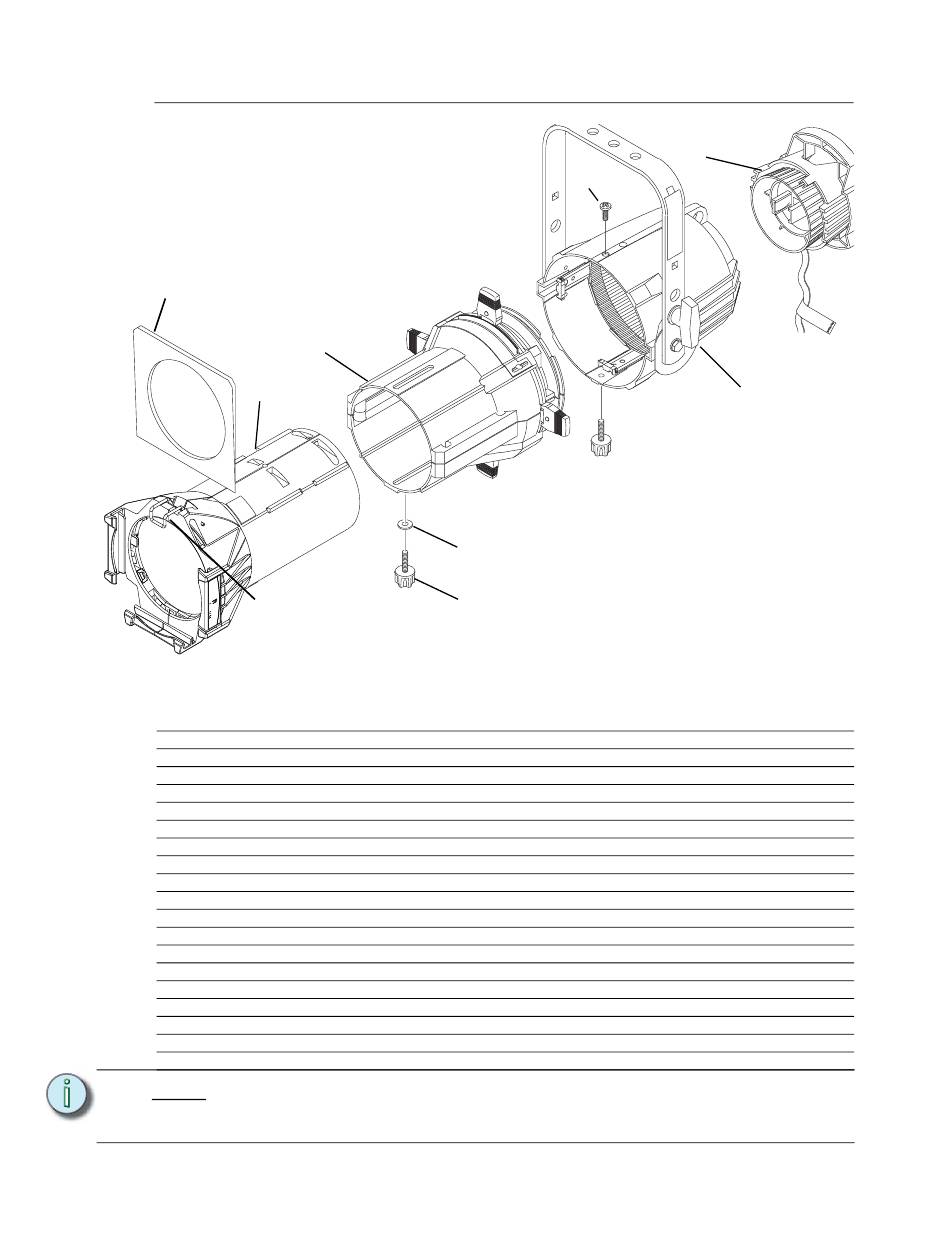

Figure 1
