Reflector Housing Assembly - ETC source four Assembly Manual

Reflector Housing Assembly

5
13
9
4
Reference
Number
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
N o t e :
8
10
1
2
16
11
Part Description
Number
7060A2013-K Reflector housing rivet assembly, single clutch, Black
7060A2019-K Reflector housing rivet assembly, double clutch, Black
7060A3006 Clip, reflector retainer
7060A3019 Spring, reflector support
7060A3058 Bracket, Yoke, Black
7060A3080 Light leak baffle, Black
7060A4008-01 Knob set with male insert
7060A4010 Bushing, gate
7060A4015 Reflector, molded glass, coated
HW5125 Bolt, carriage 5/16-18 x 3/4" LG
HW5126 Washer, flat, 5/16, black zinc
HW5127 Nut, hex, 5/16-18
HW5193 Bolt, hex, 5/16-18 x 3/4", black zinc
HW5197 Screw, PH, 1/4-20 x 5/8", black zinc
HW752 Rivet, machine, 3/16 x 31, oval head, black zinc
HW8144 Handle, yoke, knob, 5/16-15, Black
Any part that is indicated as "Black" may be also ordered in white or silver. When
ordering white, use the part number suffix -1, and for silver, use the part number
suffix -5.
8
3

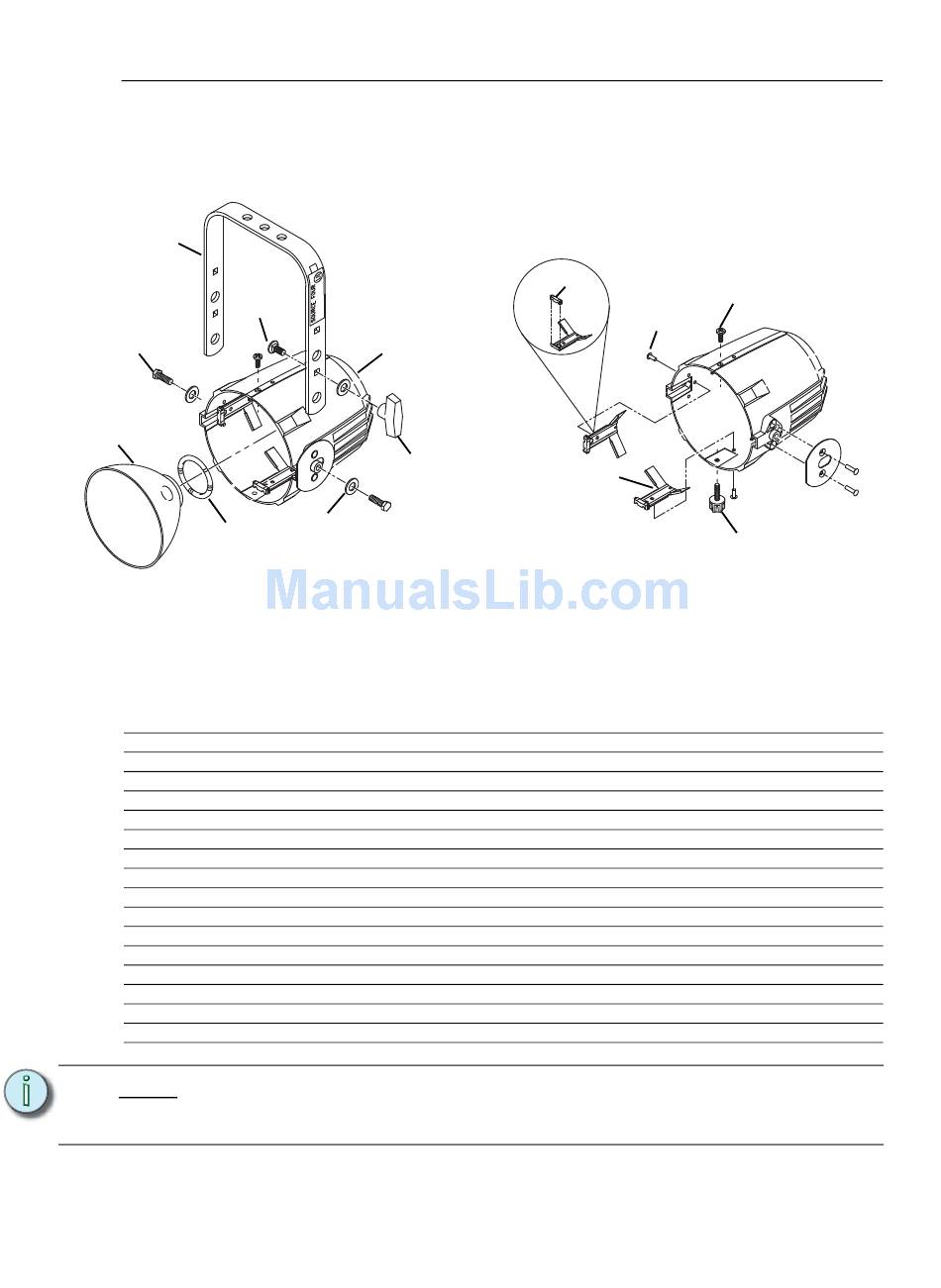

Figure 8
14
15
7
Double-clutch reflector housing
for 5°and 10° fixtures.
Quantity
Required
Source Four Assembly Guide
