Summary of Contents for Squareled LTH PRO.fessional
-
Page 2: Safety Information

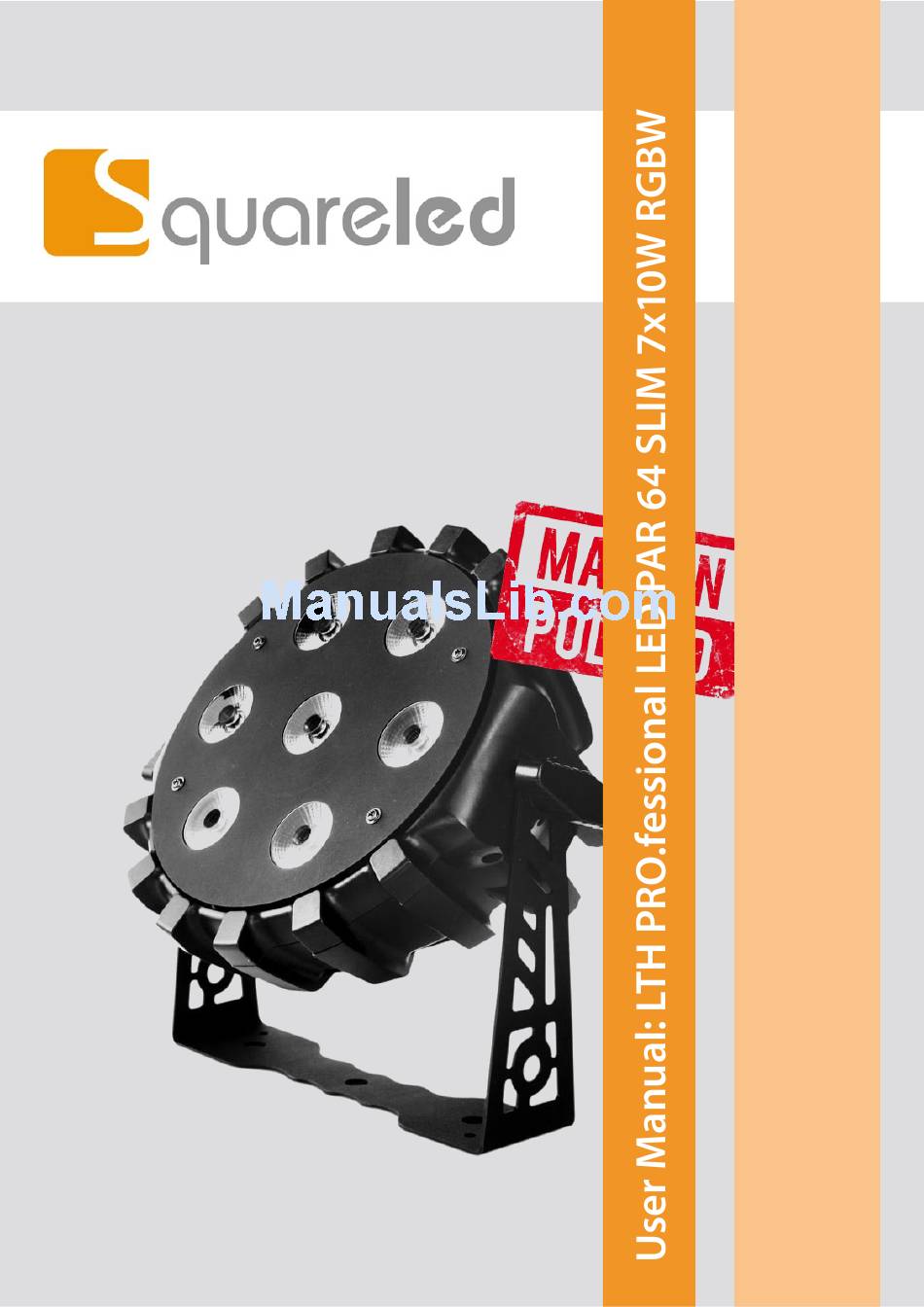

Manual | LED PAR 64 SLIM 7x10W RGBW 1. Introduction Thank you for purchasing LTH PRO.fessional LED PAR 64 SLIM 24x3W RGBW. For safety reasons and to ensure the trouble-free operation, carefully read the instructions. 2. Safety Information 1. Installation should be done by qualified personnel in order to minimize the risk of accidental electric shock 2. -
Page 3: Specification
Manual | LED PAR 64 SLIM 7x10W RGBW Specification » Power supply voltage: 100 - 245V » Voltage frequency: 50/60Hz » Diode type: 4in1 » Number of diodes: 7 » Diode power: 10W » Beam angle: 25° » Display: LCD Matrix »... -
Page 4: Connecting Dmx Signal
Manual | LED PAR 64 SLIM 7x10W RGBW 5. Connections The device is equipped with the following interfaces: 1. DMX (in/out): XLR 3-pin socket 2. Power (in/out): powerCON socket Connecting DMX signal The connection is performed using cable with XLR-female -> XLR-Male plugs. Voltage specification Input Voltage Total Power... -
Page 5: Connecting Power Supply
Manual | LED PAR 64 SLIM 7x10W RGBW Connecting power supply The connection is performed using power cable with PowerCon connector (included). The device must be operated by qualified personnel. Make sure that the power grid supply parameters are consistent with device parameters and limitations are not exceeded. CAUTION! In the case of cable damage do not attempt to repair. -
Page 6: Dmx Channel List
Manual | LED PAR 64 SLIM 7x10W RGBW Set DMX Channel Channels edit ENTER change mode UP/DOWN Mode exit MENU/WAIT 5 SEC save and exit ENTER cancel MENU/WAIT 5 SEC Device reaction DMX Off (BLACK, edit ENTER change mode UP/DOWN after DMX signal COLOR, DEMO, exit... - Page 7 Manual | LED PAR 64 SLIM 7x10W RGBW Green 0-255: 0-100% Blue 0-255: 0-100% White 0-255: 0-100% DMX Channel (CH) Channel Function Effect Dimmer 0-255: 0-100% Strobo 0-11: No Function 11-255: Strobo 1-20Hz 0-255: 0-100% Green 0-255: 0-100% Blue 0-255: 0-100% White 0-255: 0-100% Macro...
