2.3
Connecting to the target chip
After clicking the "Connect" button, the ISP tool will keep trying to connect to a target board every
40 mini seconds until the target board is successfully connected or the "Stop" button is clicked. If
there is no response from the target board during connection, please reset the MCU to execute
the ISP code.
Oct. 15, 2019

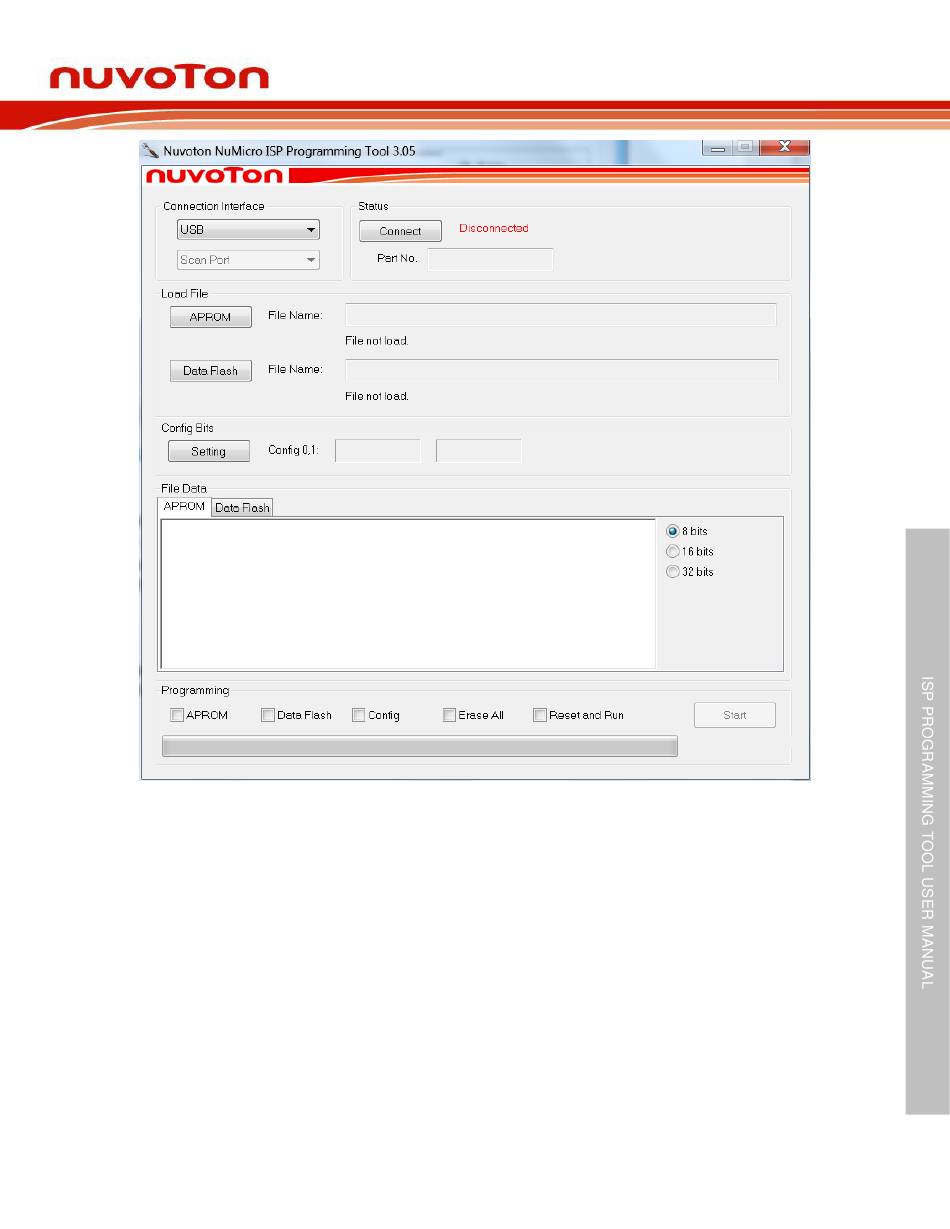

Figure 2-4 Main Dialog
Page 5 of 9
ISP Programming Tool
Rev 3.05
