USING THE ISP PROGRAMMING TOOL IN WINDOWS
The ISP Programming Tool is contained in the folder [Application Program].
2.1
Connecting Interface Selection
User needs to select the ISP connection interface before using the ISP function and makes sure
the IO pins used for communication are connected correctly. For USB interface, an extra entry pin
must be tied to ground pin to enter ISP mode.
Figure 2-2 Connection via UART Interface using specific COM port
2.2
Connecting Interface via Nu-Link2
Since version 3.00, there are more connecting interfaces available for customer's product
decision. A Nu-Link2 adapter is necessary to use these interface.
Figure 2-3 Connection Interface via NuLink2 ISP-Bridge functionality
Oct. 15, 2019

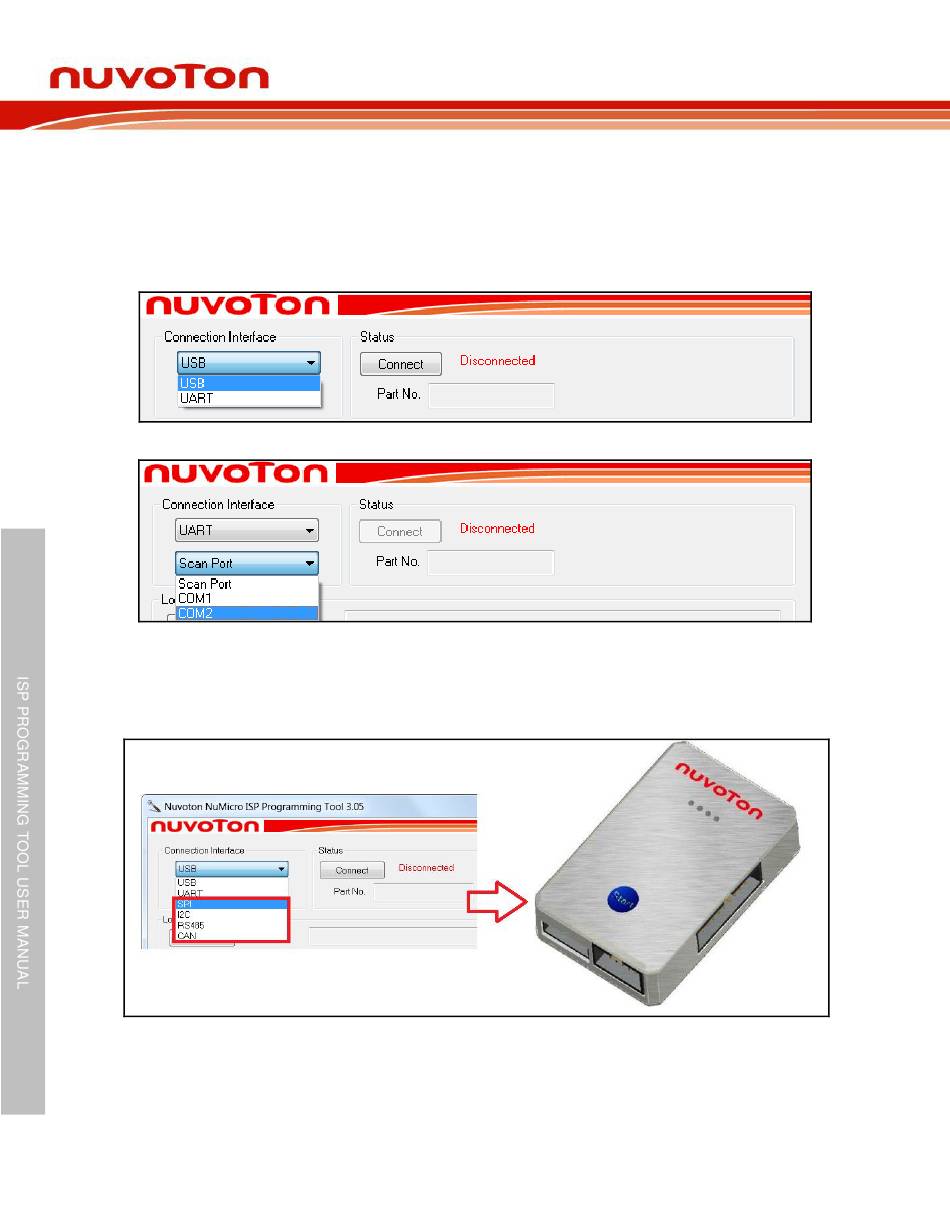

Figure 2-1 Connection via USB Interface
Page 4 of 9
ISP Programming Tool
Rev 3.05
