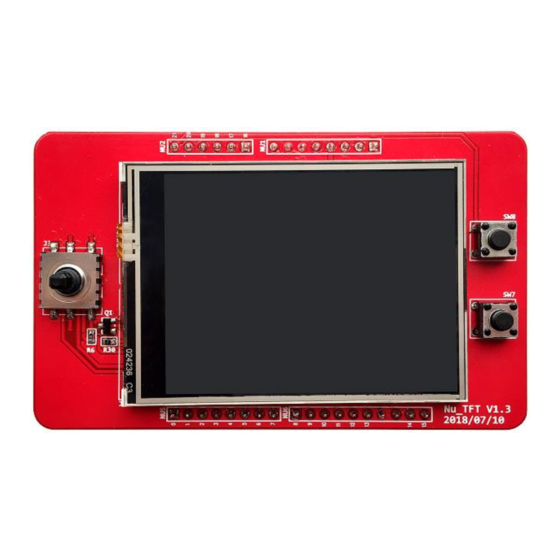

NuMaker-HMI-M2354
NuMicro
®
Family
Arm
®
Cortex
®
-M23-based Microcontroller
NuMaker-HMI-M2354
User Manual
Evaluation Board for NuMicro
®
M2354 Series
The information described in this document is the exclusive intellectual property of
Nuvoton Technology Corporation and shall not be reproduced without permission from Nuvoton.
Nuvoton is providing this document only for reference purposes of NuMicro microcontroller based system
design. Nuvoton assumes no responsibility for errors or omissions.
All data and specifications are subject to change without notice.
For additional information or questions, please contact: Nuvoton Technology Corporation.
www.nuvoton.com
April. 15, 2022
Page 1 of 63
Rev 1.00
