NuMaker-M051L
NuMicro
®
Family
Arm
®
Cortex
®
-M0-based Microcontroller
NuMaker-M051L
User Manual
Evaluation Board for NuMicro
®
M051 Series
The information described in this document is the exclusive intellectual property of
Nuvoton Technology Corporation and shall not be reproduced without permission from Nuvoton.
Nuvoton is providing this document only for reference purposes of NuMicro microcontroller and
microprocessor based system design. Nuvoton assumes no responsibility for errors or omissions.
All data and specifications are subject to change without notice.
For additional information or questions, please contact: Nuvoton Technology Corporation.
www.nuvoton.com
Dec. 26, 2022
Page 1 of 46
Rev 1.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NuMicro NuMaker-M051L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nuvoton NuMicro NuMaker-M051L

Summary of Contents for Nuvoton NuMicro NuMaker-M051L

  • Page 1 The information described in this document is the exclusive intellectual property of Nuvoton Technology Corporation and shall not be reproduced without permission from Nuvoton. Nuvoton is providing this document only for reference purposes of NuMicro microcontroller and microprocessor based system design. Nuvoton assumes no responsibility for errors or omissions.

  • Page 2: Table Of Contents

    3.8.2 Status LEDs ........................24 4 QUICK START ....................25 4.1 Toolchains Supporting ....................25 4.2 Nuvoton Nu-Link Driver Installation ................25 4.3 BSP Firmware Download ................... 27 4.4 Hardware Setup ......................27 4.5 Find the Example Project ................... 29 4.6 Execute the Project under Toolchains ..............
  • Page 3 NuMaker-M051L 5.3 Extension Connectors ....................43 5.4 PCB Placement ......................44 6 REVISION HISTORY ..................45 Dec. 26, 2022 Page 3 of 46 Rev 1.00...
  • Page 4 NuMaker-M051L List of Figures Figure 1-1 NuMaker-M051L Evaluation Board ................7 Figure 3-1 Front View of NuMaker-M051L ..................9 Figure 3-2 Rear View of NuMaker-M051L ..................10 Figure 3-3 M0516LDN Extension Connectors ................11 Figure 3-4 Arduino UNO Compatible Extension Connectors ............14 Figure 3-5 External Power Supply Sources on Nu-Link2-Me ............
  • Page 5 NuMaker-M051L Figure 4-27 Startup Tab Configuration ..................39 Figure 4-28 NuEclipse Debug Mode ....................40 Figure 4-29 Debug Message on Serial Port Terminal Windows ............ 40 Figure 5-1 Nu-Link2-Me Circuit ...................... 41 Figure 5-2 M051 Target Board Circuit ................... 42 Figure 5-3 Extension Connectors Circuit ..................
  • Page 6 NuMaker-M051L List of Tables Table 3-1 Extension Connectors ....................11 Table 3-2 M0516LDN Full-pin Extension Connectors and GPIO Function List ......13 Table 3-3 Arduino UNO Extension Connectors and M0516LDN Mapping GPIO List ....15 Table 3-4 Vin Power Source ......................16 Table 3-5 5 V Power Sources ......................

  • Page 7: Overview

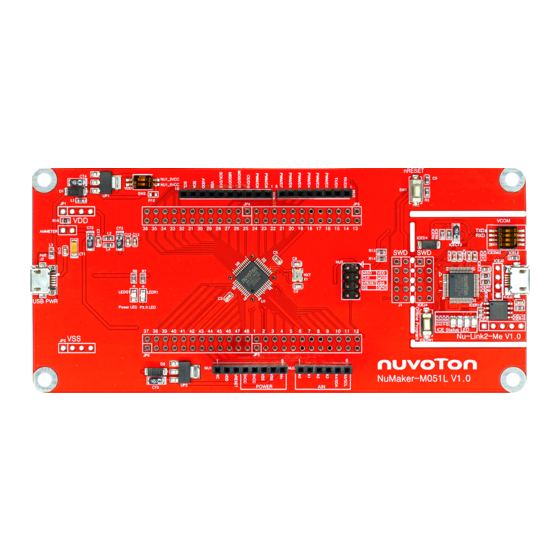

    NuMaker-M051L OVERVIEW The NuMaker-M051L is an evaluation board for Nuvoton NuMicro M0516LDN, M0516ZDN, M052LDN, M052ZDN, M054LDN, M054ZDN, M058LDN, and M058ZDN microcontrollers. The NuMaker-M051L consists of two parts: an M051 target board and an on-board Nu-Link2-Me debugger and programmer. The NuMaker-M051L is designed for project evaluation, prototype development and validation with power consumption monitoring function.
