Overview

The PSR650C-12A is an AC-input, DC-output power module, and the
PSR650C-12D is a DC-input and DC-output power module. They
each can provide a maximum output of 650 W.
The power modules support 1+1 redundancy and load sharing and
are removable. They also provide output overcurrent, output
overvoltage, output short circuit, and overtemperature protections.

Front panel

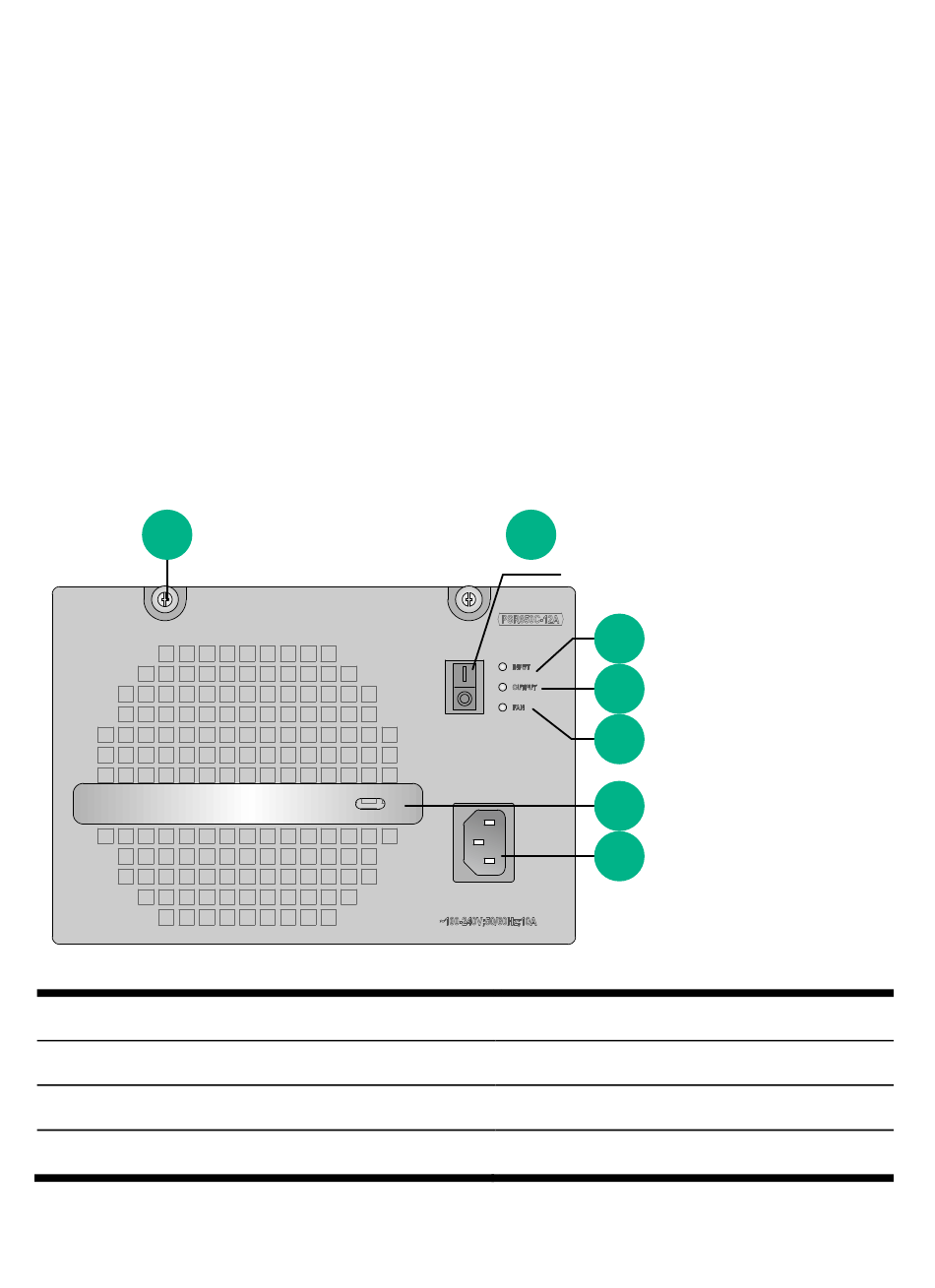

Figure 1 PSR650C-12A front panel
1
(1) Captive screw
(3) Power input LED
(5) Fan status LED
(7) Power receptacle
2
3
4
5
6
7
(2) Power switch
(4) Power output LED
(6) Handle
