19501 Series Fixture B195000/B195001/B195002 Quick Start Guide Table of Contents Overview ................... 1 B195001/B195002 Specification ............. 2 Using B195000 EMI Shielding Can ..........3 Standard Item and Accessory .......... 3 Installation ................. 3 Outline and Dimension ............. 7 Using B195001 HV Connection Adapter ........9 Standard Item and Accessory .......... -
Page 9: Overview
Discharge Tester to use. The B195000 is an EMI shielding can for the high voltage module of the 19501 series partial discharge tester to reduce the interference from outside. The B195001 HV connection adapter provides 4 sets of output terminals for connecting the adapter cables. -
Page 10: B195001/B195002 Specification
19501 Series Fixture B195000/B195001/B195002 Quick Start Guide B195001/B195002 Specification 19501 Series Fixture Model B195001 B195002 Maximum Operating 10.00kV Voltage (Note) Cover with Protection Interlock software DUT Dimension Max.18mm ( Row Spacing) Dimension 165.00mm*84.00mm 165.00mm*84.00mm* (W×H×D) -
Page 11: Using B195000 Emi Shielding Can
19501 Series Fixture B195000/B195001/B195002 Quick Start Guide Using B195000 EMI Shielding Can Standard Item and Accessory Standard Item EMI Shielding Can for Partial Partial Discharge Tester Discharge Tester Supporter Standard Accessory (Wire & Screw) Green and yellow Cover fixed screw... - Page 12 (M4*8 round head) to fix them. The location and fixing method are shown in the figure below. When the high voltage module of the 19501 series partial discharge tester is installed with the EMI shielding can and B195001 or B195002 fixture,...
- Page 13 19501 Series Fixture B195000/B195001/B195002 Quick Start Guide The high voltage module supporter is used to prevent the module from vibration during testing. The supporter has magnets for fixation. Follow the arrows shown in the figure below to fix the supporter.
- Page 14 19501 Series Fixture B195000/B195001/B195002 Quick Start Guide at the same time to output high voltage. The INTERLOCK-2 pressing signal will not be detected when set to DISABLE.
-
Page 15: Outline And Dimension
19501 Series Fixture B195000/B195001/B195002 Quick Start Guide Outline and Dimension... - Page 16 19501 Series Fixture B195000/B195001/B195002 Quick Start Guide...
-
Page 17: Using B195001 Hv Connection Adapter
19501 Series Fixture B195000/B195001/B195002 Quick Start Guide Using B195001 HV Connection Adapter Standard Item and Accessory Standard Item B195001 HV Connection Adapter Standard Accessory (Cable & Screw) HV terminal HV terminal Low terminal Low terminal test cable test cable test cable... -
Page 18: Adapter Function And Installation
19501 Series Fixture B195000/B195001/B195002 Quick Start Guide Adapter Function and Installation The functions of the B195001 front terminals are shown in the figure below. (1) RTN/Low This terminal connects to the RTN/LOW terminal on the high voltage module of the 19501 partial discharge tester, which is a low potential terminal. - Page 19 The installation of B195001 adapter is shown in the figure below: Use the enclosed M3*20 screws to secure the B195001 adapter on the high voltage module of the 19501 series partial discharge tester. The direction and holes position are shown in the figure below.
-
Page 20: Outline And Dimension
19501 Series Fixture B195000/B195001/B195002 Quick Start Guide Use the enclosed wire to connect the B195001 rear terminal to the GND terminal on the high voltage module of the 19501as the figure shown below. Outline and Dimension... -

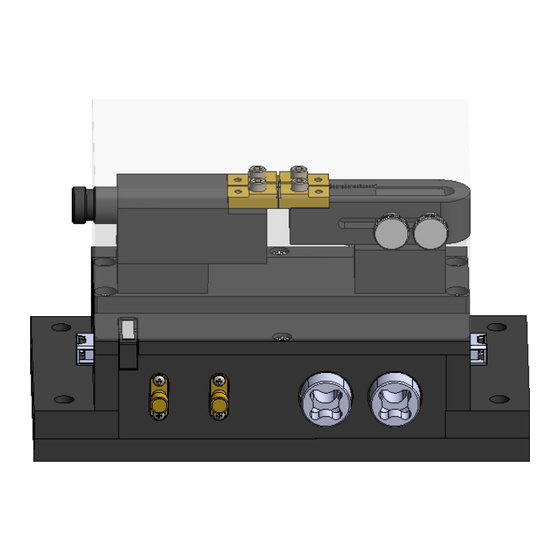

Page 21: Using B195002 Dip Test Fixture
19501 Series Fixture B195000/B195001/B195002 Quick Start Guide Using B195002 DIP Test Fixture Standard Item and Accessory Standard Item B195002 DIP Test Fixture Standard Accessory (Wire & Screw) Interlock & Fixed screw ground wire M3*20 L:220mm 4pcs 1pcs Note Please specify the name when an additional item is required. -
Page 22: Fixture Function And Installation
19501 Series Fixture B195000/B195001/B195002 Quick Start Guide Fixture Function and Installation The functions of the B195002 front terminals are shown in the figure below. (1) RTN/Low This terminal connects to the RTN/LOW terminal on the high voltage module of the 19501 partial discharge tester, which is a low potential terminal. - Page 23 19501 Series Fixture B195000/B195001/B195002 Quick Start Guide cover is closed, the Interlock terminal will be short-circuited. The functions of the B195002 rear terminals are shown in the figure below. (1) Interlock Please use the enclosed wire to connect to the Interlock terminal on the high-voltage module of the 19501 partial discharge tester.
- Page 24 19501 Series Fixture B195000/B195001/B195002 Quick Start Guide Note When securing a fixed screw, please note that the screw torque range is 4.5~5.5kg. Use the enclosed wire to connect the B195002 rear terminal to the GND and Interlock terminal on the high voltage module of the 19501 partial discharge tester as the figure shown below.
-
Page 25: Operation
19501 Series Fixture B195000/B195001/B195002 Quick Start Guide Operation The operation and use of B195002 fixture is described as follows: The 4 screws marked in the figure below can move up and down. If HVCC (high voltage contact check) is not required, adjust the screws to combine the upper and lower copper blocks. - Page 26 19501 Series Fixture B195000/B195001/B195002 Quick Start Guide Loosen the marked two knobs to move the fixture slider to the right and then fix it. Adjust the distance that is suitable for fixing the DUT.
- Page 27 19501 Series Fixture B195000/B195001/B195002 Quick Start Guide Pull the left slider on the fixture to put the DUT in and make sure that the DUT is in good contact with the fixture. Close the acrylic cover and make sure that the micro switch of...
-
Page 28: Outline And Dimension
19501 Series Fixture B195000/B195001/B195002 Quick Start Guide Outline and Dimension... - Page 29 19501 Series Fixture B195000/B195001/B195002 Quick Start Guide...
- Page 30 CHROMA ATE INC. info@chromaate.com www.chromaate.com Copyright by CHROMA ATE INC. All Rights Reserved. All other trade names referenced are the properties of their respective companies.
