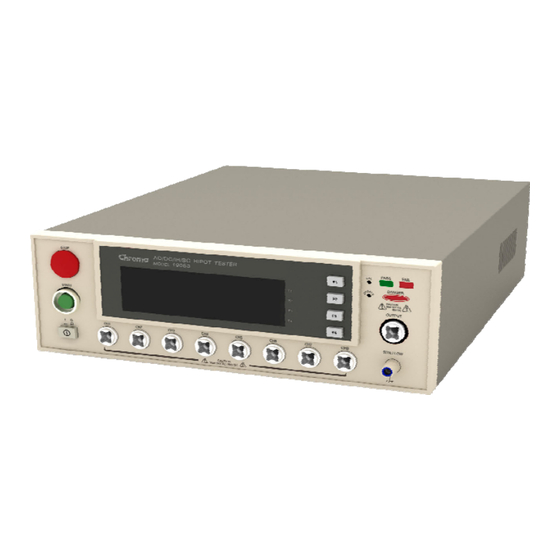

Chroma 19051 Quick Start Manual

Hipot tester
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HIPOT Tester
19051/19052/19053/19054
Quick Start Guide
1

Advertisement

Table of Contents
loading

Related Manuals for Chroma 19051

Summary of Contents for Chroma 19051

  • Page 1 HIPOT Tester 19051/19052/19053/19054 Quick Start Guide...
  • Page 3 HIPOT Tester 19051/19052/19053/19054 Quick Start Guide Version 1.1 January 2011 P/N A11 000893...
  • Page 4 Legal Notices The information in this document is subject to change without notice. Chroma ATE INC. makes no warranty of any kind with regard to this manual, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Chroma ATE INC. shall...
  • Page 5 This warranty does not apply to any products repaired or altered by persons not authorized by Chroma, or not in accordance with instructions furnished by Chroma. If the instrument is defective as a result of misuse, improper repair, or abnormal conditions or operations, repairs will be billed at cost.
  • Page 6 Material Contents Declaration The recycling label shown on the product indicates the Hazardous Substances contained in the product as the table listed below. : See <Table 1>. : See <Table 2>. <Table 1> Hazardous Substances Lead Mercury Cadmium Hexavalent Polybrominated Polybromodiphenyl Part Name Chromium...
  • Page 7 “ ” indicates that the level of the specified chemical substance exceeds the threshold level specified in the standards of SJ/T-11363-2006 and EU 2005/618/EC. Chroma is not fully transitioned to lead-free solder assembly at this moment; however, most of the components used are RoHS compliant.
  • Page 8 WARNINGS given elsewhere in this manual will violate safety standards of design, manufacture, and intended use of the instrument. Chroma assumes no liability for the customer’s failure to comply with these requirements. BEFORE APPLYING POWER Verify that the power is set to match the rated input of this power supply.
  • Page 9 Safety Symbols DANGER – High voltage. Explanation: To avoid injury, death of personnel, or damage to the instrument, the operator must refer to an explanation in the instruction manual. High temperature: This symbol indicates the temperature is now higher than the acceptable range of human.
  • Page 10 The Danger of Operating When the instrument is under output voltage, please don’t touch test area or you may shock hazard and result in death. Please obey the following items. Make sure the grounding cable is connected correctly and using the standard power cord.
  • Page 12 Remove all connected wires and cables on the instrument before cleaning. Use a brush gently to clean the dust on it. For internal cleaning, use a low-pressure air gun to vacuum the dust inside or send it back to the distributors or agents of Chroma for cleaning.

  • Page 13: Table Of Contents

    HIPOT Tester 19051/19052/19053/19054 Quick Start Guide Table of Contents Introduction............... 1 An Overview of Product ............1 Specifications (18°C ∼ 28°C RH ≤ 70%) ......2 Standard Accessory ............5 Initial Inspection ..............7 Precaution before Use............8 Panel Description ............15 Front Panel ...............

  • Page 15: Introduction

    HIPOT Tester 19051/19052/19053/19054 Quick Start Guide Introduction An Overview of Product Automatic withstand / insulation / grounding testers of the instrument are designed for automatic withstand, insulation resistance, grounding resistance and short/open circuit detection of electromechanical and electronic equipments. The testing aspect of withstand voltage, the output power of the tester is AC: 150VA(5kV, 30mA), DC: 60VA(6kV, 10mA).

  • Page 16: Specifications (18°C ~ 28°C Rh ≤ 70%)

    HIPOT Tester 19051/19052/19053/19054 Quick Start Guide Specifications (18°C ∼ 28°C RH ≤ 70%) 8 ports, ⋅ ±phase (19053 only), 4 ports, ⋅ ±phase Scan Unit (19054 only) Withstanding Voltage Test AC: 0.05 ∼ 5kV/ DC: 0.05 ∼ 6kV Constant Voltage...
  • Page 17 HIPOT Tester 19051/19052/19053/19054 Quick Start Guide Insulation Resistance Test (19052, 19053, 19054 only) Test Voltage DC: 0.05kV ~ 1kV, Constant Voltage V-display ± (1.5% of reading + 5 counts) (open voltage), 2V Accuracy resolution 0.1 MΩ ∼ 10 GΩ (19052 up to 50GΩ)
  • Page 18 HIPOT Tester 19051/19052/19053/19054 Quick Start Guide GO: (Short Sound) Indication, Alarm NG: W-Arc, W-Hi, W-Lo, IR-Lo, IR-Hi, GFI, Continuity-fail (Long Sound) Remote Connector Rear Panel 9 Pin Input: Start, Stop, Interrupt (at 11 pin terminal block) D-type Output: Under test, Pass, Fail...

  • Page 19: Standard Accessory

    HIPOT Tester 19051/19052/19053/19054 Quick Start Guide Standard Accessory 19051 Standard Package Item Q’ty Description USA-type power 90° elbow USA-type power cord, length 1.8m cord Power adapter USA-type power cord 3P – 2P adapter HV terminal used Alligator clip – cross HV head, red HV test...
  • Page 20 HIPOT Tester 19051/19052/19053/19054 Quick Start Guide 19053 Standard Package Item Q’ty Description USA-type power 90° elbow USA-type power cord, length 1.8m cord Power adapter USA-type power cord 3P – 2P adapter HV terminal used Alligator clip – cross HV head, red HV test...

  • Page 21: Initial Inspection

    HIPOT Tester 19051/19052/19053/19054 Quick Start Guide Initial Inspection Before shipment, this instrument was inspected and found to be free of mechanical and electrical defects. As soon as the instrument is unpacked, inspect for any damage that may have occurred in transit. Save all packing materials in case that the instrument has to be returned.

  • Page 22: Precaution Before Use

    HIPOT Tester 19051/19052/19053/19054 Quick Start Guide Precaution before Use The tester is with high voltage output up to 6KV sending to external test. It may occur injury and death result from error operation. Please peruse notice item of this chapter and remember to avoid accident.
  • Page 23 HIPOT Tester 19051/19052/19053/19054 Quick Start Guide The test cable of the terminal should be connected and locked well. Figure 2-2 Connection test of high voltage output terminal After the test cable of COMMON terminal has been connected. Then follows the below procedures to connect high voltage output cable.
  • Page 24 HIPOT Tester 19051/19052/19053/19054 Quick Start Guide Figure 2-3 The dangerous area under test mode It is very danger to touch high voltage area under operation status. Such as touch DUT, test cable, probe and output terminal. When the main unit is under test status, please don’t CAUTION touch alligator clipper on test cable.
  • Page 25 HIPOT Tester 19051/19052/19053/19054 Quick Start Guide procedures to execute. <<< Note! When testing insulation resistance is charging. >>> Charge When the insulation resistance is testing, DUT, capacitor, test cable, probe and output terminal even includes the tester are full of high voltage.
  • Page 26 HIPOT Tester 19051/19052/19053/19054 Quick Start Guide When the main unit output high voltage, don’t permit the operator or others personnel to contact DUT, test cable and probe output terminal. 11. Turn on or turn off power switch Note The product should be so positioned that the power switch can be easily reached by the operator during emergency.
  • Page 27 HIPOT Tester 19051/19052/19053/19054 Quick Start Guide 16. If the tester needs long time using under normal operation. Please notice the following items. If the high limit setting value is 20.00mA (withstand voltage test), please notice its’ ambient temperature. When the ambient temperature is higher than 40°C, please stop operation until it cools down to normal...
  • Page 28 HIPOT Tester 19051/19052/19053/19054 Quick Start Guide it for a long time, please use original material packing and then store it. For correct test and safety, please keep it from direct sunlight or high temperature, vibration, humidity and dusty place. 21. Warm up All functions of the tester are activated when the power switch is turned on.

  • Page 29: Panel Description

    HIPOT Tester 19051/19052/19053/19054 Quick Start Guide Panel Description Front Panel Front panel includes several function areas which easy to use. This paragraph will introduce each control and information on LCD to you. Display Area Function key display area: Under different display menus, there are different function descriptions.
  • Page 30 HIPOT Tester 19051/19052/19053/19054 Quick Start Guide : When this area is highlighted, it means the main unit has OFST been zeroed the leakage current of test cable and test lead currently. : When this area is highlighted, it means there is unclear error in error queue.

  • Page 31: Rear Panel

    HIPOT Tester 19051/19052/19053/19054 Quick Start Guide is very dangerous. Don’t touch it when DANGER LED is light, there is high voltage outputting. RTN / LOW : The common test terminal. It’s a reference terminal when high voltage test, it also a low electric potential terminal.
  • Page 32 HIPOT Tester 19051/19052/19053/19054 Quick Start Guide lower than 0.3A. The action time: From judging FAIL to STOP is stopped. OUTPUT Switch: When toggles this switch to power symbol, UNDER TEST output terminal will be short circuited under test status. When toggles this switch to voltage symbol, UNDER TEST terminal outputs 24V under test status.

  • Page 33: Notice Items And Procedures Before Operation

    HIPOT Tester 19051/19052/19053/19054 Quick Start Guide 9 Pin D Connector All of 9 pin D-Sub connector functions are the same as (1) Remote I/O. RS232 Interface This socket is the standard RS232 interface for the tester. GPIB and RS232 interface can’t use simultaneously.

  • Page 34: Operation Method

    HIPOT Tester 19051/19052/19053/19054 Quick Start Guide Move the highlighted to "SYSTEM" by Function Key DOWN Press Function Key to enter system parameter setting menu SELECT is shown as the following: 1. CONTRAST 2. BEEPER VOL. : HIGH DOWN 3. PASS ON : CONT.

  • Page 35: Test Parameter And Memory Management Of Test Preset Parameter

    HIPOT Tester 19051/19052/19053/19054 Quick Start Guide Test Parameter and Memory Management of Test Preset Parameter 3.5.1 How to Enter Memory Management Menu Under power on menu, press Function Key the menu as the MENU following: MEMORY 2. SYSTEM DOWN 3. OPTION 4.

  • Page 36: How To Select A Set Of Memory

    HIPOT Tester 19051/19052/19053/19054 Quick Start Guide 3.5.2 How to Select a Set of Memory When the state list shows "SELECT MEMORY", move the highlighted to the memory which want to manage by Function Key DOWN Press Function Key is shown the following menu:...

  • Page 37: Store Memory

    HIPOT Tester 19051/19052/19053/19054 Quick Start Guide Press Function Key and then show confirm window. SELECT Press Function Key to confirm or press Function Key cancel. 3.5.5 Store Memory If you want to save test parameter data which be set in the memory.

  • Page 38: Preset Parameter Setting

    HIPOT Tester 19051/19052/19053/19054 Quick Start Guide Preset Parameter Setting 3.6.1 How to Enter Testing Preset Parameter Setting Menu Under power on menu, press Function Key to enter testing preset PRESET parameter setting menu as the following. 1. PASS HOLD 2. STEP HOLD DOWN 3.
  • Page 39 HIPOT Tester 19051/19052/19053/19054 Quick Start Guide AC-V 50/60 Set AC-V FREQ. of HIPOT tester Freq. by inputting frequency of AC source. OFF/KEY/TIME Set grounding continue test no CONT. (0.2sec~99.9sec) good function operation mode. When set to OFF, it doesn’t proceed grounding continue test.

  • Page 40: Program Setting

    HIPOT Tester 19051/19052/19053/19054 Quick Start Guide JUDG. means during ramp time will judge high limit under DC mode. When set this item to OFF, it means during ramp time won’t judge high limit under DC mode. Part No. Not over 13 None Set the product Part No.

  • Page 41: Select Test Mode

    There are AC / DC DOWN / IR / OS / PA test modes can be selected (19051 only AC / DC / OS / PA). Different test modes have different test parameters can be set.

  • Page 42: Smart Key Operation Methods

    HIPOT Tester 19051/19052/19053/19054 Quick Start Guide 3.7.3 SMART KEY Operation Methods When starts SMART KEY function of PRESET parameter in each test, it records the test parameters. The test parameter includes: withstand test needed voltage, the high limit value of leakage current, needed...
  • Page 43 HIPOT Tester 19051/19052/19053/19054 Quick Start Guide FALL : The needed time is from setting voltage value to zero, 0 means OFF. REAL: It sets real leakage current high limit value, input 0 means OFF. SCAN: It sets scan test selection point.
  • Page 44 HIPOT Tester 19051/19052/19053/19054 Quick Start Guide VOLT: It sets insulation resistance test needed voltage. LOW: It sets insulation resistance low limit value. TIME: It sets test needed time, input 0 means continuous test. HIGH: It sets insulation resistance high limit value, input 0 means OFF.
  • Page 45 HIPOT Tester 19051/19052/19053/19054 Quick Start Guide Short/Open Circuit detection test mode (OS) STEP 1 OPEN CHK : 50% SHORT CHK : 300% 1 2 3 4 5 6 7 8 DOWN SCAN: X X X X X X X X...
  • Page 46 HIPOT Tester 19051/19052/19053/19054 Quick Start Guide circuit under pause mode. DANGER LED on panel isn’t blinking. TIME: It sets the method of PAUSE MODE. (1) It sets to CONT: Pause mode is ended until press START on panel or START signal re-triggered on rear panel.
  • Page 47 HIPOT Tester 19051/19052/19053/19054 Quick Start Guide...
