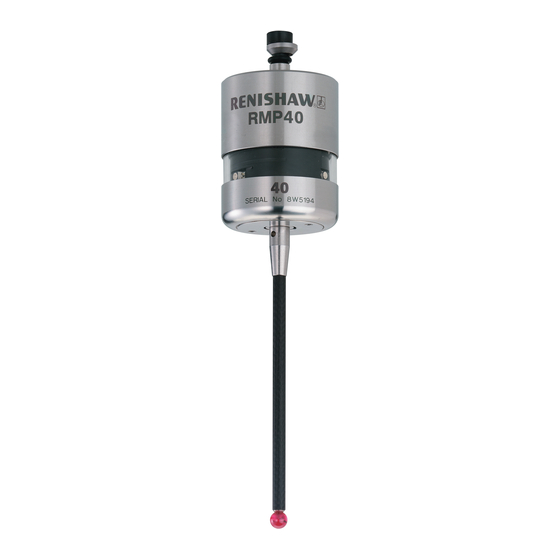

Renishaw RMP40 Installation Manual

Radio machine probe
Hide thumbs Also See for RMP40:
Table of Contents

Advertisement

Quick Links

Download this manual
Installation guide
H-5480-8504-04-B
RMP40 radio machine probe

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RMP40 and is the answer not in the manual?

Questions and answers

Related Manuals for Renishaw RMP40

Summary of Contents for Renishaw RMP40

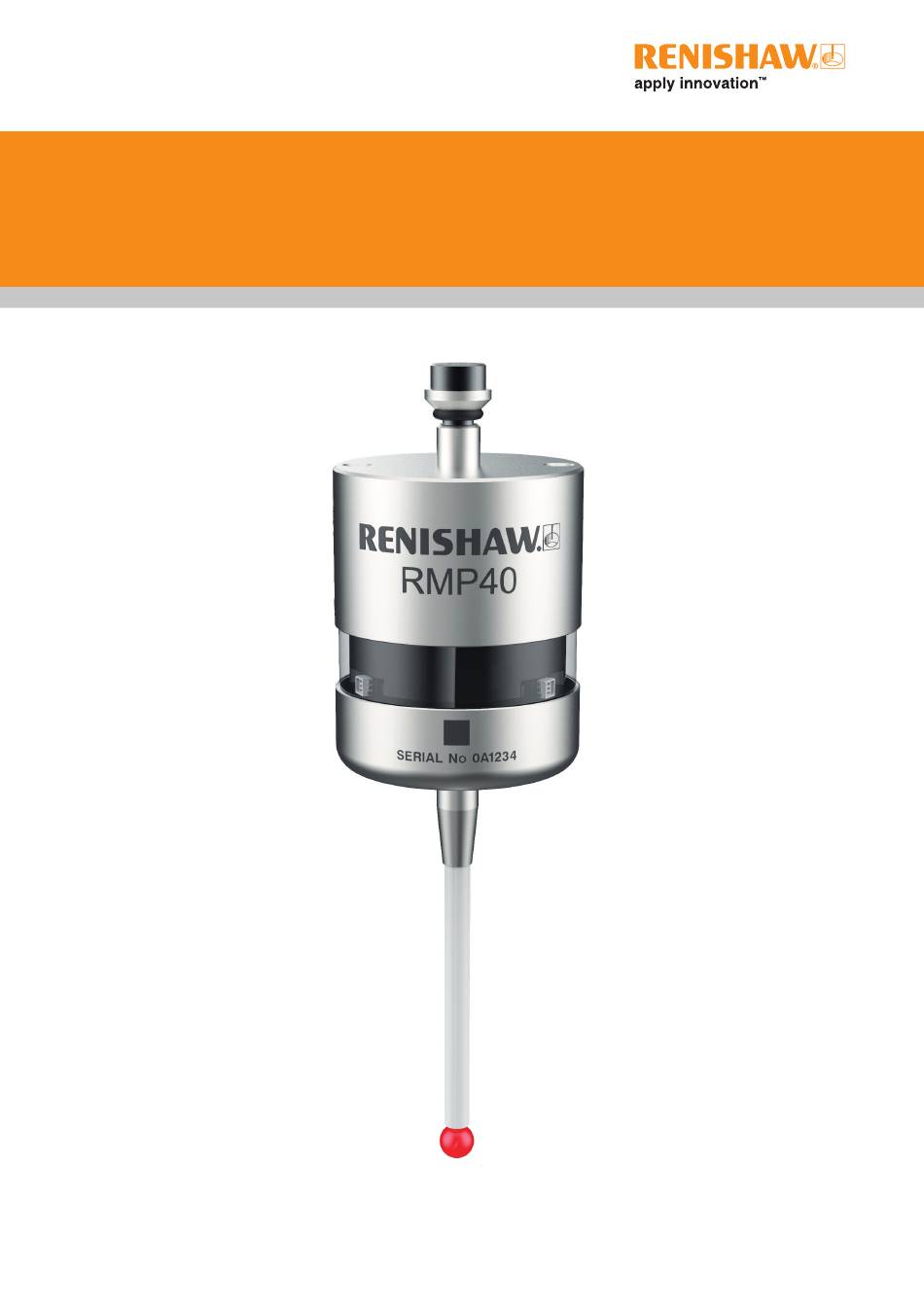

  • Page 1 Installation guide H-5480-8504-04-B RMP40 radio machine probe...
  • Page 2 This document may not be copied or reproduced in whole or in part, or transferred to any other media or language, by any means, without the prior written permission of Renishaw. Renishaw plc. Registered in England and Wales. Company no: 1106260. Registered office: New Mills, Wotton-under-Edge, Gloucestershire, GL12 8JR, UK.

  • Page 3: Table Of Contents

    Positioning the RMP40 and RMI or RMI-Q ........
  • Page 4 RMP40 – RMI-Q partnership ........

  • Page 5: Before You Begin

    Renishaw office. Renishaw warrants its equipment and software for a limited period (as set out in the Standard Terms and Conditions), provided that they are installed and used exactly as defined in associated Renishaw documentation.

  • Page 6: Cnc Machines

    Care of the probe Keep system components clean and treat the probe as a precision tool. Patents Features of the RMP40, and other similar Renishaw products, are the subject of one or more of the following patents and/or patent applications: CN 100416216...

  • Page 7: Intended Use

    Intended use The RMP40 is a radio spindle probe that enables automated workpiece inspection and job set-up on multi-tasking machines and machining centres. Safety Information to the user This product is supplied with non-rechargeable batteries that do not contain lithium. For specific battery operating, safety and disposal guidelines refer to the battery manufacturers’...
  • Page 8 Information to the equipment installer All Renishaw equipment is designed to comply with the relevant EU and FCC regulatory requirements. It is the responsibility of the equipment installer to ensure that the following guidelines are adhered to, in order for the product to function in accordance with these regulations: •...

  • Page 9: Rmp40 Basics

    Section 2, “RMP60 basics” RMP40 basics Introduction The RMP40 forms part of Renishaw’s family of radio transmission probes. It is ideally suited to large machining centres or where line-of-sight between probe and receiver is difficult to achieve or where Z travel is limited.

  • Page 10: System Interface

    RMP40 installation guide System interface The RMI and RMI-Q integrated interfaces/receivers are used to communicate between the RMP40 probe and the machine controller. Trigger Logic Trigger Logic™ (for more information, see page 4.1, “Reviewing the probe settings”) is a method that allows the user to view and select all available mode settings in order to customise a probe to suit a specific application.

  • Page 11: Enhanced Trigger Filter

    NOTE: After being switched on, the RMP40 must be on for 1 second minimum. When using spin on / spin off, ensure that the probe is stationary for 1 second minimum after it has stopped spinning before using spin on.

  • Page 12: Multiple Probe Mode

    Multiple probe mode The RMP40 can be configured, using Trigger Logic, to allow multiple radio probes to be used with a single RMI or RMI-Q. NOTES: The “radio on” switch-on method cannot be used in “multiple probe mode”. “Multiple probe mode”...

  • Page 13: Acquisition Mode

    Acquisition mode System set-up is achieved using Trigger Logic and powering-on the RMI or RMI-Q, or applying ReniKey. Partnering is only required during initial system set-up. Further partnering will be required if the RMP40, RMI or RMI-Q is changed. NOTES: Systems using the RMI-Q can be partnered with up to four RMP40s manually.

  • Page 14: Rmp40 Dimensions

    RMP40 dimensions Probe status LED 50 (1.97) 19 (0.75) Window A range of probe-ready shanks is available from Renishaw Battery cassette M4 stylus 12.5° 12.5° XY overtravel 50 (1.97) Dimensions given in mm (in) Stylus overtravel limits Stylus length ±X/±Y 50 (1.97)

  • Page 15: Rmp40 Specification

    RMP40 specification Principal application Workpiece inspection and job set-up on machining centres and multi- tasking machines Dimensions Length 50 mm (1.97 in) Diameter 40 mm (1.57 in) Weight (without shank) With batteries 250 g (8.82 oz) Without batteries 230 g (8.11 oz)

  • Page 16: Typical Battery Life

    Battery types 2 × ½AA 3.6 V lithium-thionyl chloride (LTC) Battery reserve life Approximately one week after a low battery warning is first given (based on 5% usage) Low battery indication Blue flashing LED in conjunction with normal red or green probe status Dead battery indication Constant or flashing red Typical battery life...

  • Page 17: System Installation

    This allows easy installation, either inside or outside the machine enclosure. Coolant and swarf residue accumulating on the RMP40 and RMI or RMI-Q may have a detrimental effect on transmission performance. Wipe clean as often as is necessary to maintain unrestricted transmission.

  • Page 18: Positioning The Rmp40 And Rmi Or Rmi-Q

    RMI or RMI-Q is unpowered in “radio-on” (radio-off or timer-off) configurations. The RMP40 goes into “hibernation mode” 30 seconds after the RMI-Q is unpowered (or the RMP40 is out of range). When in “hibernation mode”, the RMP40 checks for a powered RMI or RMI-Q every 30 seconds. If found, the RMP40 goes from “hibernation mode”...

  • Page 19: Preparing The Rmp40 For Use

    Preparing the RMP40 for use Fitting the stylus 1.8 Nm – 2.2 Nm (1.3 lbf.ft – 1.6 lbf.ft) M-5000-3707...

  • Page 20: Installing The Batteries

    Installing the batteries NOTES: See Section 5,“Maintenance”, for a list of suitable battery types. If dead batteries are inadvertently inserted, the LEDs will remain a constant red. Do not allow coolant or debris to enter the battery compartment. When inserting batteries, check that the battery polarity is correct.

  • Page 21: Mounting The Probe On A Shank

    Mounting the probe on a shank 2 mm A/F × 2 × 2 2 mm A/F × 4 × 4 2 mm A/F × 2 0.5 Nm – 1.5 Nm (0.4 lbf.ft – 1.1 lbf.ft)

  • Page 22: Stylus On-Centre Adjustment

    Stylus on-centre adjustment NOTES: If a probe and shank assembly is dropped, it must be rechecked for correct on-centre adjustment. Do not hit or tap the probe to achieve on-centre adjustment. × 4 360° ±10 µm × 2 1.5 Nm – 2.2 Nm (1.1 lbf.ft –...

  • Page 23: Calibrating The Rmp40

    Calibrating the RMP40 Why calibrate a probe? A spindle probe is just one component of the measurement system which communicates with the machine tool. Each part of the system can introduce a constant difference between the position that the stylus touches and the position that is reported to the machine. If the probe is not calibrated, this difference will appear as an inaccuracy in the measurement.

  • Page 24: Calibrating The Probe Length

    Calibrating the probe length Calibrating a probe on a known reference surface determines the length of the probe, based on the electronic trigger point. The stored value for length is different from the physical length of the probe assembly. Additionally, the operation can automatically compensate for machine and fixture height errors by adjusting the probe length value that is stored.

  • Page 25: Trigger Logic

    Section 4, “Trigger Logic” Trigger Logic™ Reviewing the probe settings > 5 s LED check Key to the symbols LED short flash LED long flash Switch-on method Radio on Spin on (omitted if “multiple probe mode” was selected) or Switch-off method Radio off or Short timeout Medium timeout...

  • Page 26: Multiple Probe Mode Settings

    Multiple probe mode settings Deflect the stylus for less than 4 seconds to cycle to the next setting. Multiple probe mode Mode off Mode on Machine 1 Machine 2 Machine 3 Machine 4 Machine 5 Machine 6 Machine 7 Machine 8 Machine 9 Machine 10 Machine 11...

  • Page 27: Probe Settings Record

    Medium timeout (33 s) Long timeout (134 s)  Enhanced trigger Trigger filter off (0 ms) filter Trigger filter on (10 ms)  Multiple probe mode Off (factory set) On (machine number) See “Multiple probe settings” RMP40 serial no ........

  • Page 28: Changing The Probe Settings

    Changing the probe settings Insert the batteries or, if they have already been installed, remove them for five seconds and then refit them. Following the LED check, immediately deflect the stylus and hold it deflected until five red flashes have been observed (if the battery power is low, each red flash will be followed by a blue flash).
  • Page 29 Further probes used require the same “Multiple probe mode” setting, but do not need to be partnered with the RMI or RMI-Q. To partner an RMP40 with an RMI see page 4.6, “RMP40 – RMI partnership”, or with an RMI-Q see page 4.7, “RMP40 – RMI-Q partnership”, for further information. Once acquisition has been successful, the RMP40 will revert to “...

  • Page 30: Rmp40 - Rmi Partnership

    System set-up is achieved using Trigger Logic and powering the RMI. Partnering is only required during initial system set-up. Further partnering will be required if either the RMP40 or RMI is changed, or if a system is reconfigured for multiple probes (“multiple probe mode”).

  • Page 31: Rmp40 - Rmi-Q Partnership

    RMP40 – RMI-Q partnership System set-up is achieved by using Trigger Logic™ and powering on the RMI-Q. Alternatively, partnering to a RMI-Q can be achieved by using ReniKey; a Renishaw machine macro cycle which does not require the RMI-Q to be power cycled.

  • Page 32: Operating Mode

    Operating mode LEDs LEDs LEDs flashing flashing flashing green Probe status LEDs LED colour Probe status Graphic hint Flashing green Probe seated in operating mode Flashing red Probe triggered in operating mode Flashing green and blue Probe seated in operating mode – low battery Flashing red and blue Probe triggered in operating mode –...

  • Page 33: Maintenance

    Wipe the window of the probe with a clean cloth to remove machining residue. This should be done on a regular basis to maintain optimum transmission. CAUTION: The RMP40 has a glass window. Handle with care if broken to avoid injury.

  • Page 34: Changing The Batteries

    Changing the batteries CAUTIONS: Do not leave dead batteries in the probe. When changing batteries, do not allow coolant or debris to enter the battery compartment. When changing batteries, check that the battery polarity is correct. Take care to avoid damaging the battery cassette gasket. Only use specified batteries.
  • Page 35 NOTES: After removing the old batteries, wait more than 5 seconds before inserting the new batteries. Do not mix new and used batteries or battery types, as this will result in reduced life and damage to the batteries. Always ensure that the cassette gasket and mating surfaces are clean and free from dirt before reassembly.
  • Page 36 This page is intentionally left blank.

  • Page 37: Rmp40M System

    Section 6, “RMP40M system” RMP40M system RMP40M system RMP40M is a special modular version of RMP40. It enables probe inspection of part features inaccessible to RMP40, by fitting selected adaptors and extensions as shown below. See Section 8,“Parts list”. LPE3 extension bar (150 mm)

  • Page 38: Rmp40M Dimensions

    RMP40M dimensions 40.75 50 / 100 / 150 (1.60) (1.97 / 3.94 / 5.91) (2.13) Dimensions given in mm (in) RMP40M screw torque values 10 Nm to 12 Nm (7.37 lbf.ft to 8.85 lbf.ft) 10 Nm to 12 Nm (7.37 lbf.ft to 8.85 lbf.ft)

  • Page 39: Fault-Finding

    Section 7,“Fault-finding” Fault-finding Symptom Cause Action The probe fails to Dead batteries. Change batteries. power up (no LEDs Unsuitable batteries. Fit suitable batteries. illuminated or fails to indicate current Batteries inserted incorrectly. Check battery insertion/polarity. probe settings). Batteries removed for too short a time Remove batteries for a minimum and probe has not reset.
  • Page 40 Symptom Cause Action The machine stops Radio link failure/RMP40 out of Check interface/receiver and unexpectedly during a range. remove obstruction. probing cycle. RMI or RMI-Q receiver/machine Refer to receiver/machine user’s fault. guide. Dead batteries. Change batteries. Excessive machine vibration Change trigger filter setting.
  • Page 41 Machine tool faulty. Perform health checks on machine tool. RMP40 status LEDs do Radio link failure – RMP40 out of Check position of RMI or RMI-Q, not correspond to RMI RMI or RMI-Q range. see operating envelope. or RMI-Q status LEDs.
  • Page 42 Probe out of range. Check position of RMI or RMI-Q, see operating envelope. Dead batteries. Change batteries. RMP40 and RMI or RMI-Q are Partner RMP40 with RMI or not partnered. RMI-Q. Probe selection error. Verify that one radio probe is working and is correctly selected on the RMI or RMI-Q.

  • Page 43: Parts List

    Item Part number Description RMP40 A-5480-8504 RMP40 probe with batteries, tools and support card (factory- set to radio on / radio off, trigger filter off). RMP40M module A-5628-0001 RMP40M module with batteries, tools and support card (factory-set to radio on / radio off, trigger filter off).
  • Page 44 Renishaw plc +44 (0)1453 524524 +44 (0)1453 524901 New Mills, Wotton-under-Edge uk@renishaw.com Gloucestershire, GL12 8JR United Kingdom www.renishaw.com For worldwide contact details, visit www.renishaw.com/contact Issued: 09.2022 Part no. H-5480-8504-04-B © 2010-2022 Renishaw plc...
