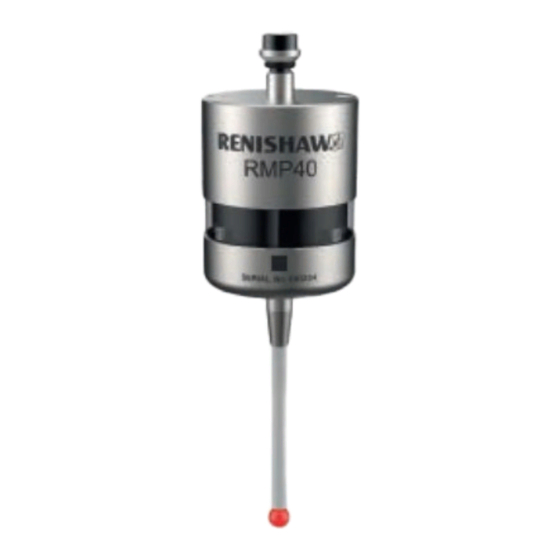

Renishaw RMP40QE Quick Start Manual
  1. Manuals
  2. Brands
  3. Renishaw Manuals
  4. Accessories
  5. RMP40QE
  6. Quick start manual

Renishaw RMP40QE Quick Start Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Quick-start guide
H-6588-8500-01-A
RMP40

Advertisement

loading
Need help?

Need help?

Do you have a question about the RMP40QE and is the answer not in the manual?

Questions and answers

Related Manuals for Renishaw RMP40QE

Summary of Contents for Renishaw RMP40QE

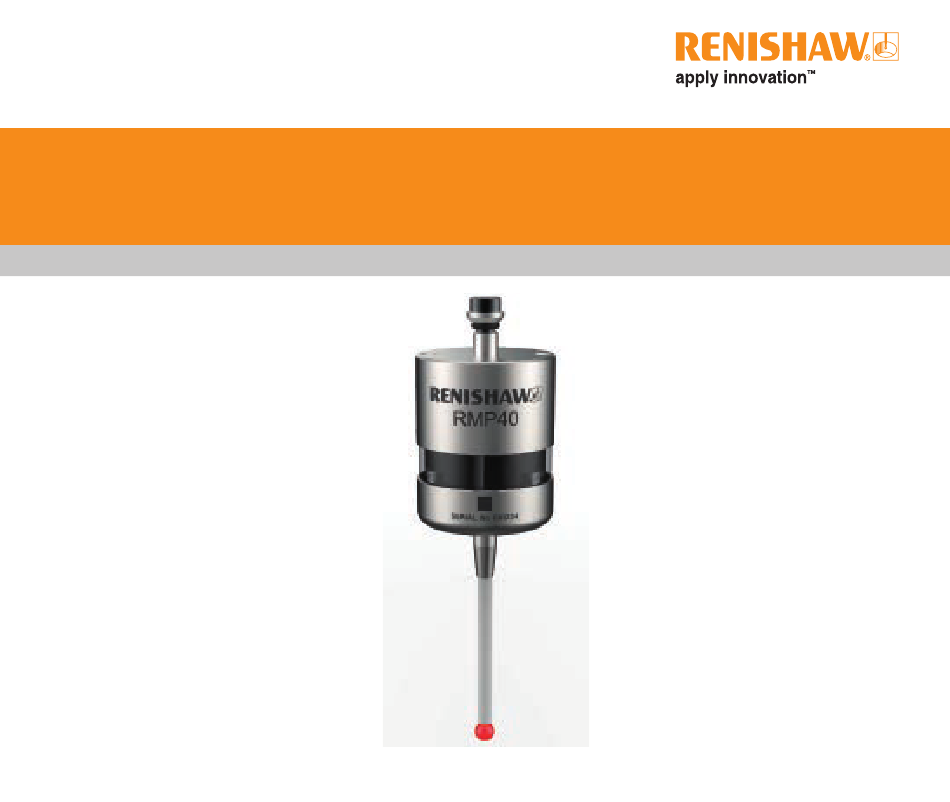

  • Page 1 Quick-start guide H-6588-8500-01-A RMP40...
  • Page 2 Publications for this product are available by scanning the barcode or visiting www.renishaw.com/rmp40. Weitere Informationen zu diesem Produkt sind unter folgendem Link www.renishaw.de/rmp40 abrufbar. Las publicaciones para este producto están disponibles a través de www.renishaw.es/rmp40. Les documentations pour ce produit sont disponibles en visitant le site www.renishaw.fr/rmp40.
  • Page 3 Publikacje dotyczące tego produktu są dostępne w witrynie www.renishaw.pl/rmp40. Dokumentaci k produktu najdete na www.renishaw.cz/rmp40. Документация по данному изделию доступна на сайте www.renishaw.ru/rmp40. 中文 請訪問雷尼紹網站以獲得此產品的的相關文件檔案: www.renishaw.com.tw/rmp40。 (繁體) 中文 请访问雷尼绍网站以获得此产品的相关文档 www.renishaw.com.cn/rmp40。 (简体) 한국어 이 제품의 관련 자료는 www.renishaw.co.kr/rmp40 에서 확인 가능 합니다.
  • Page 4 This page is intentionally left blank.
  • Page 5 To reduce the risk of potential negative effects on the environment and human health shipment delays, if you need to return the RMP40 to Renishaw for which could otherwise arise from inappropriate waste handling.
  • Page 6 It is the machine supplier’s responsibility to ensure that the user is made aware of any hazards involved during operation, including those mentioned in Renishaw product literature, and to ensure that adequate guards and safety interlocks are provided. Under certain circumstances, the probe signal may falsely indicate a probe seated condition.
  • Page 7 Batteries ½ AA (3.6 V) lithium-thionyl chloride × 2 ×  Saft LS 14250 Dubilier SB-AA02 Tadiran Maxell SL-750 ER3S Xeno XL-050F Sanyo CR 14250 SE Tadiran SL-350, SL-550, TL-4902, TL-5902, TL-2150, TL-5101 Varta CR ½ AA...

  • Page 8: Fitting The Stylus

    Fitting the stylus 1,8 Nm – 2,2 Nm (1.3 lbf.ft – 1.6 lbf.ft) M-5000-3707...
  • Page 9 CAUTION Please remove the battery isolation device from the battery compartment before use. ¬ Take care not to short the battery contacts as this may be a fire hazard. Ensure the contact strips are located securely. ¬...
  • Page 10 Configuring the probe Probe settings can be reviewed and configured by using the Opti Logic technique or Trigger Logic™ technique. The Probe Setup app enables the application of Opti Logic and provides interactive instructions and informative videos to apply Trigger Logic to review and configure settings and to partner the probe.
  • Page 11 Configuring the probe with Opti Logic Opti Logic is accessed via the Probe Setup app. For full details about Opti Logic, refer to the Probe Setup app which is available for download on the App Store or Google Play.
  • Page 12 Reviewing the probe settings Key to the symbols LED short flash > 5 s LED long flash LED check Switch-on method Radio on Spin on (omitted if “Multiple probe mode” was selected) Switch-off method Radio off or Short timeout Medium timeout Long timeout Spin off 12 s...
  • Page 13 Hibernation mode setting (RMI-Q using “radio on” only) 30 s Multiple probe mode (RMI-Q only, omitted for “radio on”) (see “Multiple probe mode settings” to view all 16 choices) Mode off Mode on Machine 1 Machine 2 Machine 16 Battery status Battery good Battery low Probe in standby mode (after 5 seconds)
  • Page 14 Multiple probe mode settings (RMI-Q application only) Multiple probe mode Mode off Mode on Machine 1 Machine 2 Machine 3 Machine 4 Machine 5 Machine 6 Machine 7 Machine 8 Machine 9 Machine 10 Machine 11 Machine 12 Machine 13 Machine 14 Machine 15 Machine 16...
  • Page 15 This page is intentionally left blank.
  • Page 16 Probe partnering function Using Trigger Logic™ the probe partnering function enables the probe to be partnered with RMI-Q or RMI-QE. > 5 s LED check Key to the symbols LED short flash LED long flash Deflect the stylus for less than 4 seconds to move to the next menu option.
  • Page 17 Whilst the “Battery status” is being displayed, deflect and release the stylus to enter “Partnering mode off”. Probe status will flash red to acknowledge this. Battery status Battery good Battery low At this point turn on either the RMI-Q or RMI-QE. With RMI-Q switched on After 8 Partnering mode...
  • Page 18 With RMI-QE switched on After 8 seconds Partnering mode 120 seconds probe in standby if Partnering mode off RMI-QE is turned off RMI-QE Partnering mode Partnering mode off Partnering mode on (RMI-QE found) 120 seconds probe in standby 20 seconds probe in standby If partnering is unsuccessful “Partnering mode off”...
  • Page 19 This page is intentionally left blank.
  • Page 20 RMP40 – RMI-Q partnership System set-up can be achieved by using Trigger Logic™. Partnering mode Partnering mode off Switch on the RMI-Q   SYSTEM STATUS LED SYSTEM STATUS LED RMI-Q in “Partnering RMI-Q in “Partnering mode” with empty mode” with full probe probe location location RMI-Q...
  • Page 21 RMP cleared from location Displayed for 5 seconds NOTE: Please refer to the RMI-Q radio machine interface installation guide (Renishaw part no. The probe is in standby and the H-5687-8504) when partnering up to four RMPs. system is ready for use.
  • Page 22 RMP40 – RMI-QE partnership System set-up can be achieved by using Trigger Logic™. Partnering mode Partnering mode off Switch on the RMI-QE Partnering mode Partnering mode off (RMI-QE found)   SYSTEM STATUS LED SYSTEM STATUS LED RMI-QE in “Partnering RMI-QE in “Partnering mode”...
  • Page 23 Displayed for 5 seconds The probe is in standby and the NOTE: Please refer to the RMI-QE radio system is ready for use. machine interface installation guide (Renishaw part no. H-6551-8501) when partnering up to four RMPs. > 20 s...
  • Page 24 Changing the probe settings (when using with a RMI-Q) Probe settings can be changed using Trigger Logic™. LED check > 5 s Deflect the stylus and hold it deflected Key to the symbols until after the battery status has been displayed at the end of the review LED short flash sequence.
  • Page 25 Switch-on method Radio on Spin on (omitted if “Multiple probe mode” was selected) Switch-off method Radio off or Short timeout Medium timeout Long timeout Spin off 12 s 33 s 134 s Trigger filter Level 1 Level 2 Level 3 (off) (10ms) (20 ms)
  • Page 26 Partnering mode Partnering Partnering Partnering successful, mode off mode on 20 seconds probe in standby 120 seconds, probe in standby After 8 seconds Hibernation mode setting (“radio on”only) 30 s Stop triggering here, unless “Multiple probe mode” is required, in which case deflect the stylus for more than 4 seconds.
  • Page 27 NOTES: If using “Multiple probe mode” , refer to the RMI-Q radio machine interface installation guide (Renishaw part no. H-5687-8504). Further probes require the same “Multiple probe mode” setting, but there is no need to be partnered with the RMI-Q.
  • Page 28 Changing the probe settings (when using with a RMI-QE) Probe settings can be changed using Trigger Logic™. LED check > 5 s Deflect the stylus and hold it deflected Key to the symbols until after the battery status has been displayed at the end of the review LED short flash sequence.
  • Page 29 Switch-on method Radio on Spin on Switch-off method Radio off or Short timeout Medium timeout Long timeout Spin off 12 s 33 s 134 s Trigger filter Level 1 Level 2 Level 3 (off) (10ms) (20 ms) New settings Return to “Switch-on method” complete, NOTE: probe in standby...
  • Page 30 Mounting the probe on a shank 2 mm A/F × 2 2 mm A/F × 2 × 4 × 4...
  • Page 31 2 mm A/F × 2 0,5 Nm – 1,5 Nm (0.4 lbf.ft – 1.1 lbf.ft)

  • Page 32: Stylus On-Centre Adjustment

    Stylus on-centre adjustment × 4 360° ±10 µm...
  • Page 33 × 2 1,5 Nm – 2,2 Nm (1.1 lbf.ft – 1.6 lbf.ft) 360° ±10 µm...
  • Page 34 × 4 1,5 Nm – 2,2 Nm (1.1 lbf.ft – 1.6 lbf.ft) 360° ±2.5 µm...
  • Page 35 Cleaning Use a clean cloth.
  • Page 36 RMI-Q visual diagnostics P1, P2, P3, P4 SYSTEM STATUS LEDs Probe number empty KEY TO THE SYMBOLS Probe number full, in standby Continuously on Probe number full, operating Probe number full, 0.5 s Flashing compatibility error LOW BATTERY/START LED Selection error Battery is okay Partnering/clearing pending, full and no M-code...
  • Page 37 RMI-QE visual diagnostics P1, P2, P3, P4 SYSTEM STATUS LEDs Probe number empty KEY TO THE SYMBOLS Probe number full, in standby Continuously on Probe number full, operating Probe number full, 0.5 s Flashing compatibility error LOW BATTERY/START LED Selection error Battery is okay Partnering/clearing pending, full and no M-code...
  • Page 38 This page is intentionally left blank.

  • Page 39: Warranty

    Trade marks China RoHS RENISHAW and the probe symbol used in the RENISHAW logo are registered trade marks of Renishaw plc in the United For more information on China RoHS visit: Kingdom and other countries. apply innovation and names and www.renishaw.com/mtpchinarohs...

  • Page 40: Eu Declaration Of Conformity

    1907/2006 (“REACH”) relating to products containing substances of very high concern (SVHCs) is available at: www.renishaw.com/REACH Renishaw plc declares under its sole responsibility that the RMP40 FCC Information to user (USA only) is in conformity with all relevant Union legislation.
  • Page 41 Patents Features of and features of similar products are RMP40 the subject of one or more of the following patents and/ or patent applications: US 6776344 CN 100466003 IN 215787 CN 101287958 WO 2004/057552 US 6941671 CN 101482402 WO 2007/028964 US 7145468 US 7285935 EP 1185838...
  • Page 42 中国上海市静安区江场三路 288 号 请勿将电池存放在阳光直射或淋雨的地方。 18 幢楼 1 楼 • 请勿将电池加热或弃入火中处置。 200436 • 避免将电池强制放电。 +86 21 6180 6416 • 请勿使电池短路或强制放电。 +86 21 6180 6418 • 请勿对电池进行拆解、穿透、施加过度压力，或使其变形。 shanghai@renishaw.com • 请勿吞咽电池。 www.renishaw.com.cn • 请将电池放在儿童无法接触的地方。 • 请将电池放在儿童无法接触的地方。 安全须知 • 不要将新旧电池或不同的电池类型混用，因为这会缩短电池寿 用户须知 命并损坏电池。 • 在运输电池或本产品时，请确保符合国际和国家电池运输条例。...
  • Page 43 在所有涉及使用机床的应用中，建议采取保护眼睛的措施。 RMP40有一个玻璃窗口。如果玻璃破碎，请务必小心，以免受伤。 机床供应商/安装商须知 机床制造商有责任确保用户了解操作中存在的任何危险，包括雷尼 绍产品说明书中所述的危险，并应确保提供充分的防护装置和安全 联动装置。 在某些情况下，测头信号可能错误指示测头已复位状态。切勿单凭 测头信号来停止机床运动。 设备安装商须知 雷尼绍所有设备的设计均符合相关的EU和FCC监管要求I为使产品 按照这些规定工作，设备安装商有责任保证遵守以下指导原则： • 任何接口的安装位置必须远离任何潜在的电噪声源，如变压器、 伺服系统驱动装置等； • 所有0伏/接地连接都应当连接到机床接地终端上（“接地终端” 是所有设备地线和屏蔽电缆的单点回路）。这一点非常重要，不 遵守此规定会造成接地之间存在电位差； • 所有屏蔽装置都必须按使用说明书中所述进行连接； • 电缆线路不得与电机电源电缆等高电流源并行或靠近高速数据 传输线； • 电缆长度应始终保持最短。 设备操作 如果设备使用方式与制造商要求的方式不符，设备提供的保护功能 可能会减弱。...

  • Page 44: Radio Approvals

    Canada: RMP40QE IC ID: 3928A-RMP40QE Japan: RMP40QE 205-200013 RMP40MQE IC ID: 3928A-RMP40QE This device complies with Industry Canada licence- RMP40MQE 205-200013 exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause This device is granted pursuant to the Japanese Radio...
  • Page 48 Renishaw plc +44 (0)1453 524524 +44 (0)1453 524901 New Mills, Wotton-under-Edge uk@renishaw.com Gloucestershire, GL12 8JR United Kingdom www.renishaw.com For worldwide contact details, visit www.renishaw.com/contact *H-6588-8500-05*...
