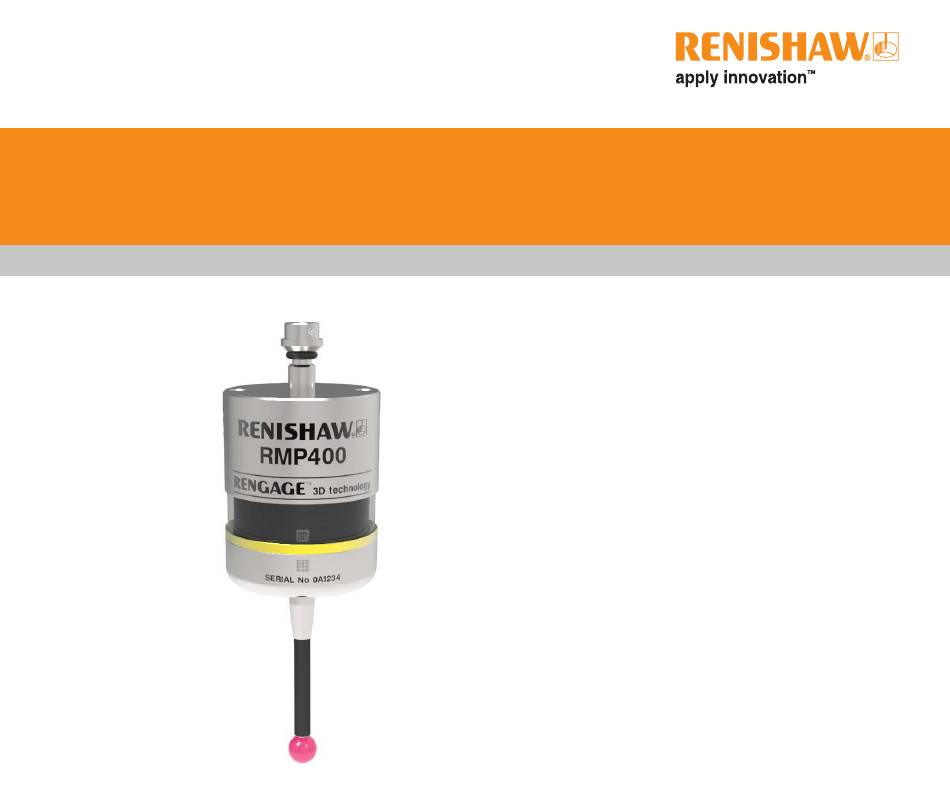

Quick-start guide
H-6570-8500-01-A

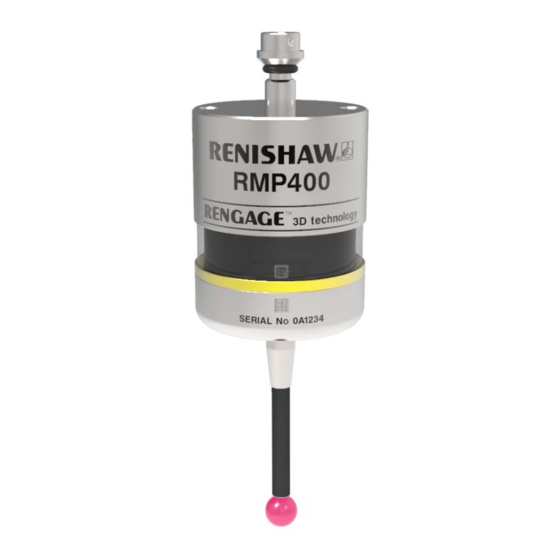

RMP400
Draft 5 16/04/18
1
English (EN)
Deutsch (DE)
Español (ES)
Français (FR)
Italiano (IT)
日本語 (JA)
2
Polski (PL)
Česky (CS)
Русский (RU)
中文（繁體）(ZH-TW)
中文 (简体) (ZH)
한국어 (KO)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RMP400 and is the answer not in the manual?

Questions and answers

Related Manuals for Renishaw RMP400

Summary of Contents for Renishaw RMP400

  • Page 1 Quick-start guide H-6570-8500-01-A RMP400 English (EN) Deutsch (DE) Español (ES) Français (FR) Italiano (IT) 日本語 (JA) Polski (PL) Česky (CS) Русский (RU) 中文（繁體）(ZH-TW) 中文 (简体) (ZH) Draft 5 16/04/18 한국어 (KO)
  • Page 2 Draft 5 16/04/18 Issued: xx.xxxx...
  • Page 3 Publications for this product are available by visiting www.renishaw.com/rmp400. Weitere Informationen zu diesem Produkt sind unter folgendem Link www.renishaw.de/rmp400 abrufbar. Las publicaciones para este producto están disponibles a través de www.renishaw.es/rmp400. Les documentations pour ce produit sont disponibles en visitant le site www.renishaw.fr/rmp400.
  • Page 4 Radio approvals have not been confirmed yet, so this and the next page are NOT applicable at the moment Radio approvals Draft 5 16/04/18...

  • Page 5: Radio Approvals

    Radio approvals Draft 5 16/04/18...
  • Page 6 This page is intentionally left blank. Draft 5 16/04/18...
  • Page 7 English (EN) Deutsch (DE) Español (ES) Français (FR) Italiano (IT) 日本語 (JA) Draft 5 16/04/18...

  • Page 8: Before You Begin

    This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: Renishaw plc declares that the RMP400 complies with the 1. This device may not cause harmful interference, and applicable standards and regulations.
  • Page 9 Before you begin Safety • Do not disassemble, pierce, deform or apply excessive pressure to the batteries. The RMP400 has a glass window. Handle with care if broken to • Do not swallow the batteries. avoid injury. • Keep the batteries out of the reach of children.
  • Page 10 This page is intentionally left blank. Draft 5 16/04/18...
  • Page 11 Configuring the probe The following sections describe the process of reviewing and configuring the probe settings. The Trigger Logic™ app simplifies this process with clear, interactive instructions and informative videos. Konfigurieren des Messtasters In den folgenden Abschnitten werden die Prüfung und Konfiguration der Messtastereinstellungen beschrieben.
  • Page 12 Configuration du palpeur Les chapitres qui suivent décrivent le processus de programmation et de configuration des paramètres de palpage. L’application Trigger Logic™ simplifie le processus au travers d’instructions claires et interactives et avec des vidéos d’information. Configurazione della sonda Le seguenti sezioni descrivono il processo di revisione e configurazione delle impostazioni della sonda.
  • Page 13 Batteries ½ AA (3.6 V) lithium-thionyl chloride × 2 Batterien ½ AA (3,6 V) Lithium-Thionylchlorid × 2 Baterías 2 × Litio-cloruro de tionilo de tamaño ½ AA (3,6 V) Piles 2 piles ½ AA chlorure de lithium thionyle (3,6 V) Batterie Litio Cloruro di Tionile ½...
  • Page 14 Fitting the stylus Tastereinsatz montieren Colocación del palpador Montage du stylet Installazione dello stilo スタイラスの取り付け 1,8 Nm – 2,2 Nm (1.3 lbf.ft – 1.6 lbf.ft) M-5000-3707 Draft 5 16/04/18...
  • Page 15 Attention Please remove the battery isolation device from the battery compartment before use. Take care not to short the battery contacts. ¬ Actung Bitte vor Gebrauch die Batterie-Isolierung aus dem Batteriefach entfernen. ¬Die Batteriekontakte dürfen nicht kurzgeschlossen werden. Precaución Por favor, retire el dispositivo de aislamiento de las baterías del compartimento de las mismas antes del uso.

  • Page 16: Reviewing The Probe Settings

    Reviewing the probe settings Key to the symbols LED short flash > 5 s LED long flash  LED check Switch-on method (omitted if “Multiple probe mode” was selected) Radio on Spin on Switch-off method Radio off or Short timeout Medium timeout Long timeout Spin off...
  • Page 17 Reviewing the probe settings Enhanced trigger filter setting and auto-reset facility Auto reset off Auto reset off Auto reset on Auto reset on Auto reset off Trigger filter on Trigger filter on Trigger filter on Trigger filter on Trigger filter off 8 ms 16 ms 8 ms...

  • Page 18: Multiple Probe Mode Settings

    Multiple probe mode settings Multiple probe mode Mode off Mode on Machine 1 Machine 2 Machine 3 Machine 4 Machine 5 Machine 6 Machine 7 Machine 8 Machine 9 Machine 10 Machine 11 Machine 12 Machine 13 Machine 14 Machine 15 Machine 16 Return to “Mode off”...
  • Page 19 This page is intentionally left blank. Draft 5 16/04/18 1-13...
  • Page 20 Probe partnering function > 5 s LED check  Key to the symbols LED short flash LED long flash All probe settings will be shown, ending with “Probe status” being displayed. Deflect the stylus for less than 4 seconds to move to the next menu option.
  • Page 21 Probe partnering function Whilst the “Probe status” is being displayed, deflect and release the stylus to enter “Acquisition mode off”. Probe status will flash red to acknowledge this. Probe status Battery good Battery low  At this point turn on either the RMI or RMI-Q. Acquisition mode Acquisition Acquisition...
  • Page 22 This page is intentionally left blank. Draft 5 16/04/18 1-16...
  • Page 23 Placing the probe in configuration mode > 5 s LED check  Key to the symbols Deflect the stylus and hold it deflected until after the battery LED short flash status has been displayed at the LED long flash end of the review sequence. Deflect the stylus for less than 4 seconds to move to the next menu option.

  • Page 24: Changing The Probe Settings

    Changing the probe settings Switch-on method (omitted if “Multiple probe mode” was selected) Spin on Radio on Switch-off method Radio off or Short timeout Medium timeout Long timeout Spin off 12 s 33 s 134 s Enhanced trigger filter setting and auto-reset facility Auto reset off Auto reset off Auto reset on...
  • Page 25 NOTE: After the RMI or Acquisition Acquisition RMI-Q has been acquired, mode off mode on 120 seconds, the RMP400 will only show probe in standby “Acquisition mode off”. New settings Draft 5 16/04/18 complete, probe Return to the beginning of the Trigger Logic menu...

  • Page 26: Rmp400 - Rmi Partnership

    RMP400 – RMI partnership Acquisition mode Acquisition mode off Switch on the RMI  SIGNAL LED RMI in acquisition mode Deflect the stylus to select “Acquisition mode on”. Ensure this is done within 8 seconds of the RMI signal LED flashing green.
  • Page 27 RMP400 – RMI partnership SIGNAL LED  New partner RMP acquired The probe is in standby and the system is ready for use.  > 20 s NOTE: Please refer to the RMI installation guide (Renishaw part no. H-4113-8554) when partnering the RMP400.

  • Page 28: Rmp400 - Rmi-Q Partnership

    RMP400 – RMI-Q partnership Acquisition mode Acquisition mode off Switch on the RMI-Q   SYSTEM STATUS LED SYSTEM STATUS LED RMI-Q in acquisition mode RMI-Q in acquisition mode with empty probe location with full probe location Deflect the stylus to select “Acquisition mode on”.
  • Page 29 RMP400 – RMI-Q partnership SYSTEM STATUS LED Acquisition pending SYSTEM STATUS LED SYSTEM STATUS LED  New partner RMP acquired RMP cleared from location Displayed for 5 seconds NOTE: Please refer to the RMI-Q installation guide (Renishaw The probe is in standby and part no.
  • Page 30 Mounting the probe on a shank Montage des Messtasters an × 2 die Werkzeugaufnahme Montaje de la sonda en un cono 2 mm A/F Montage du palpeur sur un × 2 cône 2 mm A/F × 4 Installazione della sonda sul cono プローブのシャンクへの取り付け...
  • Page 31 2 mm A/F × 2 0,5 Nm – 1,5 Nm (0.4 lbf.ft – 1.1 lbf.ft) Draft 5 16/04/18 1-25...
  • Page 32 Stylus on-centre adjustment Rundlauf des Tastereinsatzes × 4 einstellen Ajuste de centrado del palpador Centrage du stylet Centratura dello stilo スタイラスの芯出し調整方法 360° ±10 µm Draft 5 16/04/18 1-26...
  • Page 33 × 2 1,5 Nm – 2,2 Nm (1.10 lbf.ft – 1.62 lbf.ft) 360° ±10 µm Draft 5 16/04/18 1-27...
  • Page 34 × 4 1,5 Nm – 2,2 Nm (1.10 lbf.ft – 1.62 lbf.ft) 360° ±2.5 µm Draft 5 16/04/18 1-28...
  • Page 35 Cleaning Use a clean cloth. Reinigung Verwenden Sie ein sauberes Tuch. Limpieza Utilice un paño limpio. Nettoyage Utiliser un chiffon propre. Pulizia Usare un panno pulito. ク リーニング きれいな布を使用して下さい。 Draft 5 16/04/18 1-29...

  • Page 36: Error Led

    RMI-Q visual diagnostics P1, P2, P3, P4 SYSTEM STATUS LEDs Probe number empty Key to the symbols Probe number full, in standby Continuously on Probe number full, operating Probe number full, 0.5 s Flashing compatibility error LOW BATTERY/START LED Selection error Battery is okay Acquisition/clearing pending, full and no M-code...
  • Page 37 RMI visual diagnostics Key to the symbols SIGNAL LED Continuously on Excellent communications LOW BATTERY/START LED Flashing Good Battery low communications M code start/ Poor stop in progress communications Battery low and No probes M code start/ operating stop in progress In acquisition Battery is okay mode...
  • Page 38 Trade marks warranty. RENISHAW and the probe symbol used in the RENISHAW logo are registered trade marks of Renishaw plc in the United Kingdom and other countries. apply innovation and names and designations of other Renishaw products and technologies are trade marks of Renishaw plc or its subsidiaries.
  • Page 39 Patents Features of RMP400 and features of similar products are the subject of one or more of the following patents and/or patent applications: Patent numbers will be placed here when there are Draft 5 16/04/18...
  • Page 40 Renishaw plc +44 (0)1453 524524 +44 (0)1453 524901 New Mills, Wotton-under-Edge uk@renishaw.com Gloucestershire, GL12 8JR United Kingdom www.renishaw.com For worldwide contact details, visit www.renishaw.com/contact *H-6570-8500-01* Draft 5 16/04/18...
