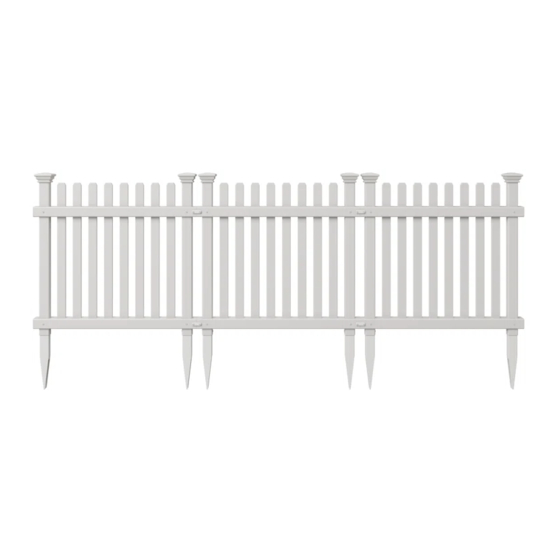

ROGER RABBIT VINYL GARDEN
FENCE KIT - 3 PACK (22in H x 24in W)
30 MIN
6935 Reames Rd. Ste. K. Charlotte, NC 28216
@
support@zippity-outdoor.com
704-892-5222 / 877-234-6196
zippity-outdoor.com
approximate assembly
time for 2 fence panels
ASSEMBLY
INSTRUCTIONS
www.zippity-outdoor.com
1
Advertisement
Related Manuals for Zippity ROGER RABBIT VINYL GARDEN FENCE KIT 3 PACK
Summary of Contents for Zippity ROGER RABBIT VINYL GARDEN FENCE KIT 3 PACK
- Page 1 ASSEMBLY INSTRUCTIONS ROGER RABBIT VINYL GARDEN FENCE KIT - 3 PACK (22in H x 24in W) 30 MIN approximate assembly time for 2 fence panels 6935 Reames Rd. Ste. K. Charlotte, NC 28216 support@zippity-outdoor.com 704-892-5222 / 877-234-6196 zippity-outdoor.com www.zippity-outdoor.com...
-
Page 2: General Information
Although great care has been taken to ensure proper packaging and handling of this product, occasionally problems occur. If you discover any missing, damaged or defective parts, please contact our customer service department. EMAIL: support@zippity-outdoor.com PHONE: 704-892-5222 / 877-234-6196 Customer service agents are available to take calls weekdays from 8am-5pm EST. -
Page 3: Tools You Will Need
ROGER RABBIT VINYL GARDEN FENCE KIT (3 PACK) Post Anchors (6) - ” x 1 ½” x 10 ½” Post Caps (6) Rail End Caps (12) Zippity Joiner Clip (6 are installed, Clip (6) 6 are loose) Top Rails (3) - Bottom Rails (3) - ¾”... - Page 4 3. Drive (4) ¾” screws into the predrilled holes in the bottom rail. pre-drilled holes. NOTE: Ensure that the picket holes in the bottom rail are facing towards the top rail. Align Tabs facing down Align www.zippity-outdoor.com...
- Page 5 1. Rotate the fence frame so that the post tabs are facing up. STEP 3.1 2. Insert (8) pickets (F) into the picket holes in the top and bottom rails. Tabs STEP 4: ASSEMBLE ADDITIONAL PANELS STEP 4.1 Repeat Steps 1-3 to assemble the other two fence panels. www.zippity-outdoor.com...
- Page 6 Step 5.2-5.3 are only to be completed if ground is too hard for Step 5.1. STEP 5.2 1. Loosen the top 6” of ground with claw hammer. 2. Add water to loose soil. 3. Use a block of wood to protect the post and lightly hammer the posts into the ground. www.zippity-outdoor.com...
- Page 7 If ground is too hard, two 8” diameter 7” deep holes must be dug to accommodate two posts each as shown below. 8 " 8 " 7 " STEP 5.4 Level the screen, backfill excavated dirt, and tamp as necessary. www.zippity-outdoor.com...
- Page 8 STEP 6: CONNECT PANELS 1. Straight Line Applications: Using Zippity joiner clips (H) and 1” screws (J) connect the panels as shown below. STEP 6.1 2. Corner Applications: Using Zippity joiner clips (H) and 1” screws (J) connect the panels as shown below.
