This fence can easily be trimmed down
horizontally to fit your custom space. Use a
fine-toothed circular saw or hack saw.
60 MIN
6935 Reames Rd. Ste. K. Charlotte, NC 28216
@
support@zippity-outdoor.com
704-892-5222 / 877-234-6196
zippity-outdoor.com
Ver. 080420

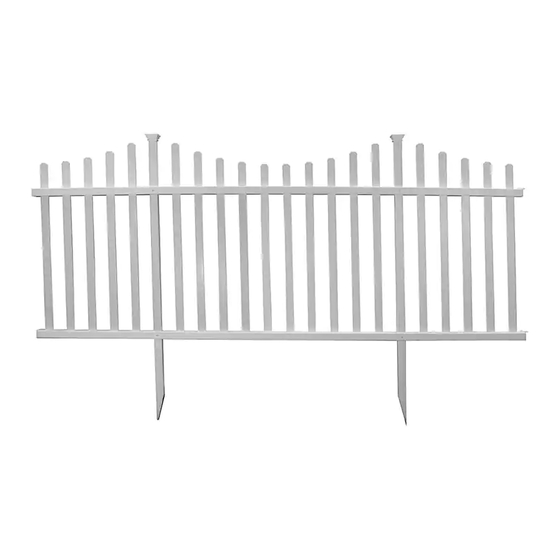

MANCHESTER VINYL PICKET
FENCE KIT 2-PACK (42"H X 92"W)
Approximate assembly
time
INSTRUCTIONS
THIS FENCE IS DESIGNED FOR SEMI-PERMANENT
23 in
36 in
62 in
20 in
Want to see a video on how to
assemble this product? Scan
ASSEMBLY
APPLICATIONS.
92 in
23 in
2 5/8 in
2 in
44 1/2 in
46 in
the code below!
www.zippity-outdoor.com
10 1/2 in
42 in
26 1/2 in
1
Advertisement
Related Manuals for Zippity MANCHESTER VINYL PICKET FENCE KIT
Summary of Contents for Zippity MANCHESTER VINYL PICKET FENCE KIT
- Page 1 FENCE KIT 2-PACK (42”H X 92”W) 60 MIN Approximate assembly time Want to see a video on how to assemble this product? Scan the code below! 6935 Reames Rd. Ste. K. Charlotte, NC 28216 support@zippity-outdoor.com 704-892-5222 / 877-234-6196 zippity-outdoor.com Ver. 080420 www.zippity-outdoor.com...
-
Page 2: General Information
WEBSITE: nychgroup.com/parts EMAIL: support@zippity-outdoor.com PHONE: 704-892-5222 / 877-234-6196 Customer service agents are available to take calls weekdays from 8am-5pm EST. If you call outside of business hours, please leave a voicemail. - Page 3 #4 - ¼” x 1½” x 34¼” #5 - ¼” x 1½” x 33⅞” ¾” Self-Drilling Stainless Steel Screw (24) Bottom Rail (2) Note: The bottom rail 1½” x 1½” x 92” only has picket holes on one side. www.zippity-outdoor.com...
- Page 4 Align holes Note: The bottom rail Note: Orient the bottom only has picket holes on of posts as illustrated. one side. Secure the rails to the posts with (8) ¾” self-drilling stainless steel screws (G). STEP 2.2 www.zippity-outdoor.com...
- Page 5 1, 2, 3, 4 and 5. Insert pickets in pattern of 5, 4, 3, 2, 1, 1, 2, 3, 4, 5 etc... to create a scallop pattern. Note: Once inserted, the pickets will lock into place. To remove the pickets, gently insert a butter knife along the picket as shown, and slowly pull up the pickets. www.zippity-outdoor.com...
- Page 6 (or something equivalent) as illustrated. Add water to loosen soil. Use a block of wood to protect the top of the post, and gently hammer each post into STEP 4.3 the ground evenly. Block of wood www.zippity-outdoor.com...
- Page 7 1. Use a 1¾” diameter auger bit (commonly used for planting tulips) as illustrated ($15- $20 on Amazon.com). 2. Drill a hole about 12” to 16” deep at the desired location, and fill the holes with water as illustrated. 3. Push the fence posts into the holes. www.zippity-outdoor.com...
- Page 8 Level the assembled unit, fill in the holes, and compact dirt around the base of each STEP 4.5 post to strengthen the unit. Level Finish the assembly by pushing the post caps (A) down over the top of the posts as STEP 4.6 illustrated. The post caps will lock into place. www.zippity-outdoor.com...
- Page 9 Fasten joiner clips (F) by screwing them to the top of the rails with (4) ¾” self-drilling STEP 5.1 stainless steel screws as illustrated. 45° Application 6935 Reames Rd. Ste. K. Charlotte, NC 28216 support@zippity-outdoor.com 704-892-5222 / 877-234-6196 zippity-outdoor.com www.zippity-outdoor.com...
