Zippity Madison Gate Kit w/ Fence Wings Assembly Instructions Manual

A S S E M B LY I N S T R U C T I O N S

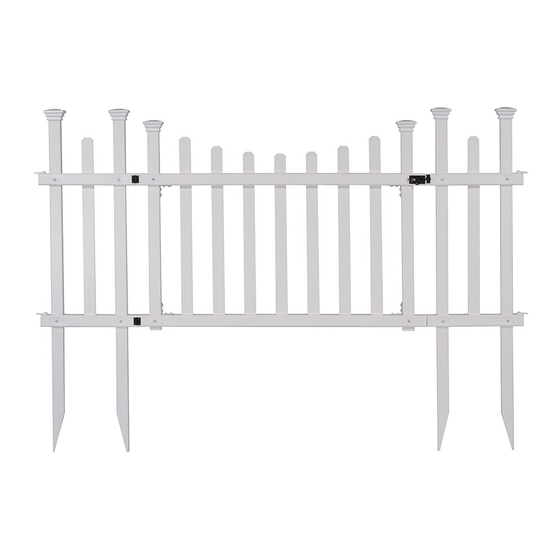

Madison Vinyl Gate Kit w/ Fence Wings
(Unassembled) 62" Wide x 30" Tall
This Gate is designed to be integrated with our 30" High Madison Picket Fence
Please read through before starting assembly.
IMPORTANT: CHECK THE INSIDE OF THE LARGER PIECES IN YOUR BOX FOR OTHER MATERIALS
PACKED INSIDE.
Check Box for These Contents
In the event of missing or defective parts please call our customer service department at 1 877 778 5733 (Mon. to Fri. 8:00 AM to 4:00 PM EST).
1. Post Caps (6)
2. Posts (4) - 7/8" x 1½" x 43½"
3. Horizontal Rails - Top (2) - 1½" x 1½" x 12"
4. Horizontal Rails - Bottom (2) - 1½" x 1½" x 12"
5. Picket 1 (4) - ¼" x 1½" x 24 1/8"
6. Picket 2 (2) - ¼" x 1½" x 22 7/8"
7. Picket 3 (2) - ¼" x 1½" x 22 1/8"
8. Picket 4 (1) - ¼" x 1½" x 21 7/8"
9. Gate Posts (2) - 7/8" x 1½" x 26½"
10. Gate Top Rail (1) - 1½" x 1½" x 36 3/8"
11. Gate Bottom Rail (1) - 1½" x 1½" x 36 3/8"
12. Gate Hardware Kit with Fasteners (1)
13. Corner Brackets (4)
14. 3/4 in Self-Augering Stainless Steel Screws (47)
15. Zippity Connector Brackets (4)
16. 1/8" Drill Bit (1)
Tools You Will Need
• Cordless Drill
• Level
• Shovel
12 1/8 in
2 in
6 5/8 in
1
2
3
9
10
11
4
12 13 14
36 7/8 in
2 1/2 in
39 3/8 in
40 7/8 in
5 7
6 8
15 16
Not to Scale
Ver 1.4/121617
12 1/8 in
1
