Zippity Manchester Vinyl Picket Gate with Posts Assemble Instruction

A S S E M B LY I N S T R U C T I O N S

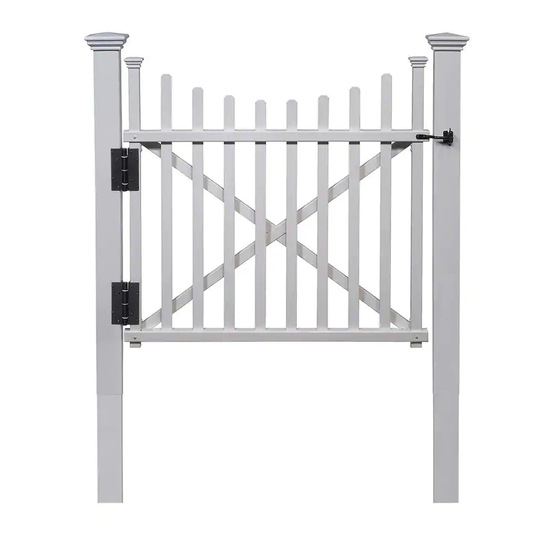

Manchester Vinyl Picket Gate with Posts
(42" Wide x 42" Tall)
This Gate is designed to be integrated with our 42" High Manchester Picket Fence
Please read through before starting assembly.
IMPORTANT: CHECK THE INSIDE OF THE LARGER PIECES IN YOUR BOX FOR OTHER MATERIALS
PACKED INSIDE.
Check Box for These Contents
In the event of missing or defective parts please call our customer service department at 1 877 778 5733 (Mon. to Fri. 8:00 AM to 4:00 PM EST).
1. Post Caps (2)
2. Posts (2) - 2" x 3½" x 52"
3. Vertical Rails (2) - 7/8" x 1½" x 40½"
4. Gate Top Rail (1) - 1½" x 1½" x 41 3/8"
5. Picket 1 (2) - ¼" x 1½" x 37½"
6. Picket 2 (2) - ¼" x 1½" x 35 5/8"
7. Picket 3 (2) - ¼" x 1½" x 34½"
8. Picket 4 (2) - ¼" x 1½" x 33 7/8"
9. Gate Braces (2) - 7/8" x 1½" x 48 3/8"
10. Gate Bottom Rail (1) - 1½" x 1½" x 41 3/8"
11. Vertical Rail Post Caps (2)
12. Post Extensions (2) - 1¾" x 3¼" x 36"
13. Corner Brackets (4)
14. 2 in Self-Augering Stainless Steel Screws (4)
15. 5/8 in Self-Augering Stainless Steel Screws (27)
16. Gate Hardware Kit with Fastener
Additional Materials Required (Not Included)
• 2 Bags of pre-mix Concrete
Tools You Will Need
• Cordless Drill
• Level
• Shovel
31 1/2 in
8 in
24 in
13 14 15 16
Not to Scale
2 3/4 in
42 1/2 in Gate Opening
2 in
49 1/2 in Outside Posts
1
2
3
4
5
6
7
8
9
10
45 3/8 in
42 in
36 in
Ground
11
12
1
