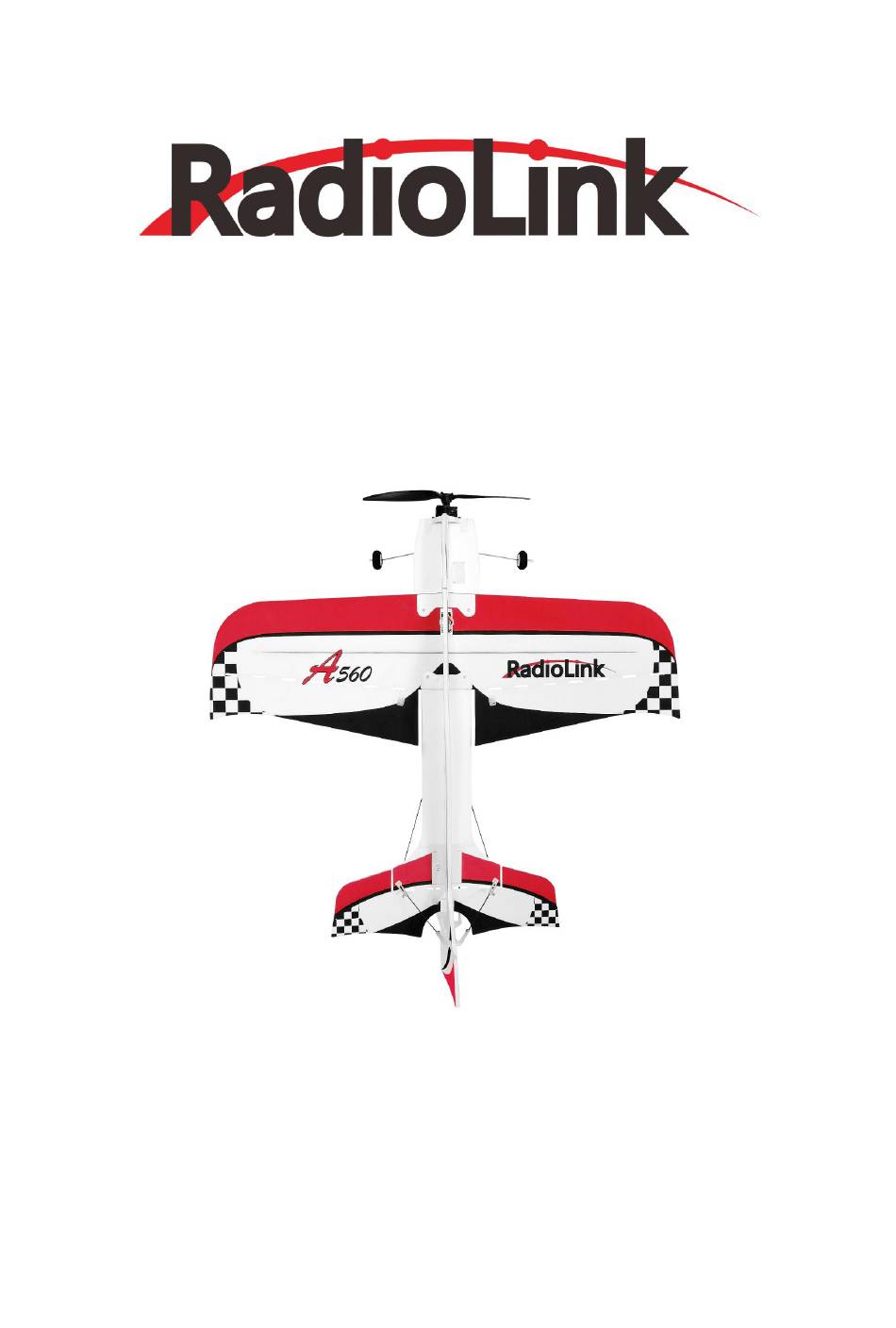

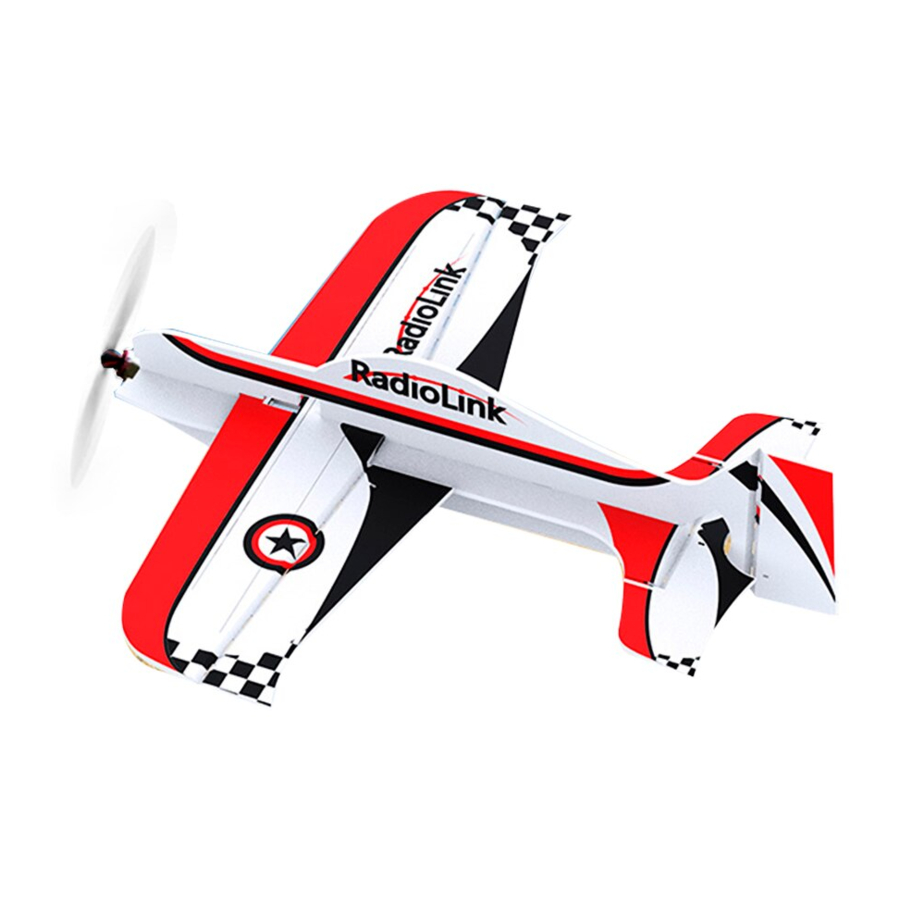

A560
3D Fixed Wing Vertical Flight with 1 Switch
Instruction Manual
CE FCC RoHS
There are 2 versions of A560, including RTF version and PNP version.
Please refer to page 3-25 of this manual for RTF version, and page 26-30 for PNP version.
Note: In order to provide users with a better user experience, A560 will be upgraded irregularly,
and subsequent upgrades will not be modified in this manual. Please enter Radiolink official
website (www.radiolink.com) to view or download the latest version of A560 manual.

Advertisement

Table of Contents
loading

Related Manuals for RadioLink A560

Summary of Contents for RadioLink A560

  • Page 1 Please refer to page 3-25 of this manual for RTF version, and page 26-30 for PNP version. Note: In order to provide users with a better user experience, A560 will be upgraded irregularly, and subsequent upgrades will not be modified in this manual. Please enter Radiolink official...

  • Page 2: Table Of Contents

    1.1.3 Rudder Servo/Vertical Tail ................5 1.1.4 Drive Principle ....................6 1.2 A560 Units ....................... 6 1.3 Usage of A560 Units ....................7 1.3.1 Notice for Use ....................7 1.3.2 Transmitter & Receiver ................. 7 1.3.3 Flight Controller Byme-A V2.0 ..............8 1.3.4 Motor ......................
  • Page 3 A560 (PNP) CONTENTS Disclaimer and Warning ......................26 Packing List .........................26 Chapter 1 General Introduction ..................26 Chapter 2 A560 Assembly ....................26 2.1 A560 Assembly ...................... 26 2.2 Receiver Connection ..................... 26 Chapter 3 Flight Mode ......................27 3.1 Flight Mode Setting ....................27 3.2 Six Flight Modes ....................28...

  • Page 4: Disclaimer And Warning

    RadioLink product is operated, it means the operator understands this limitation of liability and accepts to take responsibility of the operation. Make sure to follow the local laws and agree to follow the principles that made by RadioLink. Fully understand that RadioLink cannot analyze the product damage or accident reason and cannot offer after-sales service if no flight record is provided.

  • Page 5: Packing List

    RadioLink Electronic Ltd www.radiolink.com Packing List Items Picture Fuselage PP 5mm 560mm Wing PP 5mm 580mm Tail (Horizontal Stabilizer) PP RadioLink Transmitter T8S RadioLink Receiver R8XM RadioLink Flight controller Byme-A V2.0 FULLYMAX 2S 7.4V 500mAh LiPo Battery Motor SZ-SPEED 2206F-1450KV...

  • Page 6: Chapter 1 General Introduction

    A560 will lean to left or roll over to left. When the left aileron moves down and the right up, left aileron gets pushed by airflow upward and the right aileron is pushed downward, then A560 will lean to right or roll over to right.

  • Page 7: Drive Principle

    RadioLink Electronic Ltd www.radiolink.com airflow and the head of A560 will turn left. When rudder servo moves right, the vertical tail gets pushed to left and the head of A560 will turn right. Note The direction mentioned above is relative to aircraft instead of the ground. That is, if the aircraft is reversed (body upside down), its above is the ground instead of the sky/ceiling.

  • Page 8: Usage Of A560 Units

    1.3.2 Transmitter & Receiver A560 RTF(Ready To Fly) is packed with RadioLink 8-channel transmitter T8S and mini receiver R8XM, with the stable control distance up to 4000 meters and real-time built-in telemetry function. (Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations.)

  • Page 9: Flight Controller Byme-A V2.0

    Note: The returned model voltage alarm is set to 7.4V (2S battery) by default. When the battery voltage of A560 is lower than 7.4V, the transmitter will emit three DDD beeps to alarm. For detailed manual of R8XM receiver, please check it on RadioLink official website: https://www.radiolink.com/r8xm_manual...

  • Page 10: Motor

    RadioLink Electronic Ltd www.radiolink.com the A560 head with the 3M paste on the A560. It is advised to install the flight controller close to the core of the A560 and connect the servo wires, ESC and receiver cables to the corresponding flight controller pin.

  • Page 11: Servo

    RadioLink Electronic Ltd www.radiolink.com 1.3.6 Servo A560 uses a EMAX 8G servo as aileron servo and 2 pieces of EMAX 4.3G servo for elevator servo and rudder servo respectively. 1.3.7 Propeller A560 adopts GEMFAN 8038 propeller, which is installed by factory default. If new propeller needs to be changed, fix the propeller and motor with a rubber band.

  • Page 12: Charger

    Make sure the transmitter and aircraft are fully charged.  When A560 flies for about 10 minutes, if the power of the aircraft drops when the throttle  is pushed, the battery voltage on the aircraft is insufficient. At this time, please return to the flight immediately to avoid the failure of the aircraft to return due to the insufficient power battery voltage and the over-discharge of the battery.
  • Page 13 LED indicator will be always on. 2. Insert the balance port of the standard 2S lithium battery of A560 into the charging port of CM210 (as shown in the picture above). Then the green LED indicator starts flashing, which means it starts to charge the battery.

  • Page 14: Chapter 2 A560 Assembly

    Chapter 2 A560 Assembly All electronic components of A560 RTF have been debugged and the aileron and tail (Horizontal Stabilizer) are not assembled by factory default. Please follow the packed A560 Assembly & Disassembly Instruction to complete the assembly of the aileron and tail (Horizontal Stabilizer).

  • Page 15: Six Flight Modes

    The model attitude (inclination angles) is controlled by joysticks. When the joystick is back to central point, the A560 will level. The max inclination angle is 70° for rolling while that for pitching is 45°.
  • Page 16 RadioLink Electronic Ltd www.radiolink.com...

  • Page 17: Vertical Mode (Multirotor)

    At this mode, A560 will keep vertical attitude automatically. The attitude algorithm of flight controller will convert the joystick output to the horizontal coordinates and control with full posture. When the A560 is vertical, toggle the aileron joystick(CH1) to control the A560 moving left or right.
  • Page 18 When the A560 is vertical, toggle the rudder joystick(CH4) to control the A560 moving (anti)clockwise. If the throttle joystick is toggled upward, the A560 climbs upwards at a vertical attitude. If toggled downward, the A560 descends at a vertical attitude.

  • Page 19: Vertical Mode (Fixed Wing)

    The altitude algorithm of Byme-A V2.0 maps the joystick operation onto horizontal ordinates and takes control of full altitude. When the A560 is vertical, toggle the aileron joystick(CH1) to control the A560 moving (anti)clockwise. When the A560 is vertical, toggle the elevator joystick(CH2) to control the A560 moving...

  • Page 20: Gyro Mode

    Combination of Stabilize Mode and Gyro Mode makes it easy to realize various free styles such as rolling, rapid pitching, backward, side flight and spiral descending. A560 will level when the joystick is back to central point. If the joystick is toggled with small range, A560 will move to the corresponding directions.

  • Page 21: Chapter 4 Flight Precautions

    4. Make sure that the front and back of the propeller are installed correctly and the propeller is not inclined. 5. Keep A560 face up, rather than upside down during power-on calibration and attitude calibration. 6. After the setting of channel direction in the transmitter, please calibrate the attitude once.

  • Page 22: Chapter 7 Gyro Phase

    NOR/REV and modify gyro direction when doing attitude calibration. At Stabilize Mode, hold the A560 and simulate the actual flight movement to check the gyro phase of aileron, elevator, and rudder are right or not. There is no need to operate the transmitter when testing the gyro phase.

  • Page 23: Gyro Phase Adjustment

    RadioLink Electronic Ltd www.radiolink.com In Stabilize Mode, if the gyro phase is reversed, please adjust the gyro phase by the flight controller Byme-A V2.0. See the below chapter for the adjustment method. 7.2 Gyro Phase Adjustment If gyro phase is reversed, the phase needs to be adjusted by the flight controller. Press the button on the front of the flight controller Byme-A V2.0 to change the gyro phase.

  • Page 24: Chapter 8 Transmitter Setup

    Chapter 8 Transmitter Setup 8.1 Transmitter Phase Setup A560 RTF version has already set up transmitter phase, but please check it again before taking off. Please check the transmitter phase in T8S Parameter Setup APP. Enter the basic menu. Set CH1/CH2/CH4 to NORM, and CH3 to REV, as shown below: Click https://www.radiolink.com/t8s_apps to download T8S Parameter Setup APP for Android...

  • Page 25: Transmitter Phase Test

    RadioLink Electronic Ltd www.radiolink.com 8.2 Transmitter Phase Test Make sure the transmitter phases are correct before flight. All the settings will take Mode 2 as example. Please check the transmitter phase at Manual Mode. At Manual Mode, put the aircraft on the ground and keep horizontal. Check the phase of aileron, elevator, and rudder by pushing the joysticks of transmitter.
  • Page 26 RadioLink Electronic Ltd www.radiolink.com Toggle the rudder joystick to left, rudder servo(vertical tail) turns to left; toggle the joystick to right, rudder servo(vertical tail) turns to right. In manual mode, operate the joystick of the transmitter. If the movement of the control surface of the corresponding channel is reversed, enter the setting page of the transmitter to adjust the transmitter phase of the corresponding channel.

  • Page 27: Disclaimer And Warning

    Please refer to A560 RTF Chapter 2 A560 Assembly. 2.2 Receiver Connection For A560 PNP version, transmitter and receiver needs to be installed. A560 is compatible to all transmitters that supports SBUS/PPM signal. 1. First, install the receiver on A560 aircraft. Make sure the receiver is switched to SBUS/PPM signal mode, and then connect the receiver to Byme-A V2.0 flight controller.

  • Page 28: Chapter 3 Flight Mode

    CH5(3-way switch) and CH7(2-way switch) by default. The value range of channel 5 and channel 7 corresponding to the flight mode is as shown below: Take RadioLink AT9S Pro transmitter as example. Flight modes are set by CH5(3-way switch SWC) and CH7(2-way switch SWD) as below.

  • Page 29: Six Flight Modes

    Please refer to A560 RTF Chapter 4 Flight Precautions. Chapter 5 Power-on and Gyro Self-test Please refer to A560 RTF Chapter 5 Power-on and Gyro Self-test. Chapter 6 Attitude Calibration Flight controller Byme-A V2.0 needs to calibrate the attitudes/level to ensure the balance status.

  • Page 30: Chapter 7 Gyro Phase

    Chapter 8 Transmitter Setup 8.1 Model Type Setup For A560 PNP version, model type needs to be set as fixed wing in the transmitter. Take AT9S Pro as example( same as AT10II/AT9S/AT10/AT9). Steps: Power on the transmitter - Long press Mode to enter BASIC MENU - Turn the Dial to MODEL TYPE - Press Push to enter the menu and turn Dial to select ACROBASIC - Long press Push for 1 second and a notice “ARE YOU SURE”pops out - Press Push again and a...

  • Page 31: Transmitter Phase Setup

    - rotate Dial to 3:THRO - change NOR to REV - Long press Push for 1 second to confirm. 8.3 Transmitter Phase Test Please refer to A560 RTF Chapter 8.2 Transmitter Phase Test. Thank you again for using RadioLink products!
