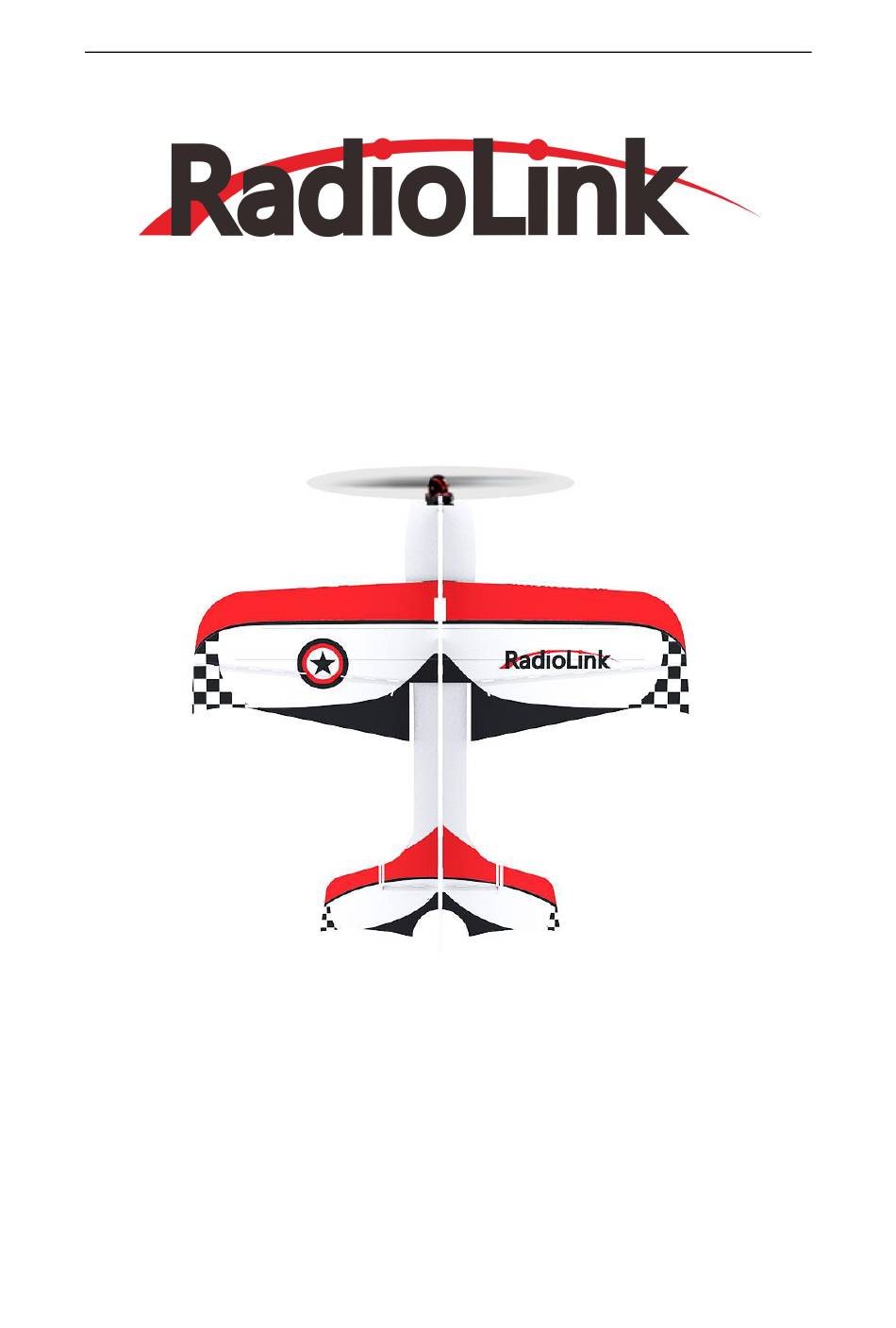

  • Page 1 RadioLink Electronic Ltd www.radiolink.com A560 3D Fixed Wing Vertical Flight with 1 Switch Instruction Manual CE FCC RoHS * Please be kindly noted that this manual will be updated regularly and please visit RadioLink official website to download the latest version.
  • Page 2 RadioLink product is operated, it means the operator understands this limitation of liability and accepts to take responsibility of the operation. Make sure to follow the local laws and agree to follow the principles that made by RadioLink. Fully understand that RadioLink cannot analyze the product damage or accident reason and cannot offer after-sales service if no flight record is provided .
  • Page 3 RadioLink Electronic Ltd www.radiolink.com Make sure to power off the aircraft before the transmitter when landing.  Aircraft Never get close to the high-speed rotation of propellers and motors, which may causes damages. Therefore, please follow the below: Propellers (Props) Make sure to check all props are in good condition before flight.
  • Page 4 3. If the product is purchased from the local distributor, you can also ask them for support and repair as prefer. All manuals and firmwares are available on RadioLink official website www.radiolink.com more tutorials are uploaded. Or follow our Facebook and Youtube homepage to stay tuned with our latest news.
  • Page 5 Items Fuselage EPP 5mm 560mm Aerofoil EPP 5mm 560mm Receiver R8FM Transmitter RadioLink T8FB RadioLink Flight controller Byme-A FULLYMAX 2S 7.4V 660mAh LiPo Battery Brushless Motor SZ-SPEED 2206F 1450KV ESC FLYCOLOR 15A BEC Props GEMFAN 8038 8”dia.3mm Aileron servo EMAX ES08A with 54mm rudder arm Tail servo PZ 4.3g...
  • Page 6: Table Of Contents

    RadioLink Electronic Ltd www.radiolink.com Content Chapter 1 General Introduction......................1 1.1 A560 Units............................1 1.2 Motion Principle of Fixed Wing....................... 2 1.2.1 Aileron ............................2 1.2.2 Elevator servo/Horizontal Tail ....................2 1.2.3 Rudder servo/Vertical Tail......................3 1.3 Transmitter and Receiver........................ 3 1.4 Power System...........................
  • Page 7: Chapter 1 General Introduction

    RadioLink Electronic Ltd www.radiolink.com Chapter 1 General Introduction 1.1 A560 Units Velcro to fix battery Right aileron (CH1) Fuselage Motor (to connect ESC) Tail (Vertical Stabilizer CH4) Tail support rod Prop Rubber band to fix prop Stabilizer CH2) Tail (Horizontal...
  • Page 8: Motion Principle Of Fixed Wing

    A560 will lean to left or roll over to left. When the left aileron moves down and the right up, left aileron gets pushed by airflow upward and the right aileron is pushed downward, then A560 will lean to right or roll over to right.
  • Page 9: Rudder Servo/Vertical Tail

    Similar to elevator servo, when rudder servo moves left, the vertical tail gets pushed to right by airflow and the head of A560 will turn left. When rudder servo moves right, the vertical tail gets pushed to left and the head of A560 will turn right.
  • Page 10: Drive Principle

    Servo outputs signal and voltage by receiver and adjust corresponding angle in real time. Generally, angle that servo can adjust is no more than 90°. A560 uses a EMAX 8G servo as aileron servo and 2 pieces of 4.3G servo for elevator servo and rudder servo respectively.
  • Page 11: Model Type Setup

    RadioLink transmitter T8FB used to work with A560 BNF version, there’s no need to setup model type. If it is other transmitter to work with A560, model type needs to be set as fixed wing. Take AT9S as example( same as AT10II/AT10/AT9):...
  • Page 12: Aircraft Installation

    RadioLink Electronic Ltd www.radiolink.com 2.2 Aircraft Installation The wing is not assembled by factory default. Therefore, when the box is received and unpacked, please assemble the wing on the fuselage first. Please refer to the video for detailed instructions. https://youtu.be/WkcsBdWsfMo Channels on flight controller: Ch1-Aileron, Ch2-Elevator, Ch3-Throttle, Ch4-Rudder, S.BUS/PPM-connect to receiver, SBUS/PPM signal supported.
  • Page 13: Servo Phase

    RadioLink Electronic Ltd www.radiolink.com It is advised to lift up the model head with a certain angle to ensure the calibration accuracy and it will be recorded by flight controller once the attitude calibration is complete with success. Pull both joysticks to outside corners as below and hold for more than 3 seconds. The green led on flight controller Byme-A flashes once means the calibration completed.
  • Page 14 If any of the phases on transmitter is reversed, it needs to be reset in the parameter setup menu, The standard transmitter of A560 RTF is T8FB. To calibrate the transmitter phase, connect the transmitter to the android mobile/computer and setup the parameters with APP or software.
  • Page 15: Flight Controller Phase

    (1)Aileron Phase on FC Hold A560 with the aircraft body level. Lean/roll it to left, if left aileron is pressed and right one is lifted; then lean/roll it to right, if left aileron is lifted and right one is pressed, meaning the aileron phase on FC is correct.
  • Page 16: Flight Mode Setting

    RadioLink Electronic Ltd www.radiolink.com Neither the always-on nor off green led means reversed phase. Only toggle the joysticks can check if the corresponding servo phases are reversed. 2.4 Flight Mode Setting With the three-axis gyroscope and three-axis acceleration sensor and the full attitude algorithm, control algorithm and digital filter, the integrated flight controller Byme-A specially for 3D fixed wing, is different from traditional manual mode.
  • Page 17: Vertical Mode

    RadioLink Electronic Ltd www.radiolink.com Flight mode setup of other transmitter from RadioLink is the same. Channel 5 and channel 7 are for flight mode setup by default. First select the model type of fixed wing in the setting menu, then set a three-way switch(Ch5) and a two-way switch(Ch7) in the auxiliary channel menu.
  • Page 18 If the joystick on right is toggled downward, A560 flights backward. When the aircraft is vertical, toggle the rudder joystick(Ch4) to control the aircraft moving (anti)clockwise. If the joystick on left is toggled to left, A560 flights anticlockwise. If the joystick on left is toggled to right, A560 flights clockwise.
  • Page 19: Angle Mode

    The model attitude (inclination angles) is controlled by joysticks. When the joystick is back to central point, A560 will level. The max inclination angle is 70° for rolling while that for pitching is 45°. Rolling to right...
  • Page 20: Rate Mode

    Combination of Angle Mode and Rate Mode makes it easy to realize various free styles such as rolling, rapid pitching, backward, side flight and spiral descending. A560 will level when the joystick is back to central point. If the joystick is toggled with small range, A560 will move to the corresponding directions.
  • Page 21 RadioLink Electronic Ltd www.radiolink.com standard one of fixed wing. Beginners have better to practice with simulators and get familiar to the operations of aileron/elevator/throttle/rudder joysticks in advance. Thank you again for choosing RadioLink product.
