RadioLink A560 Instruction Manual

3d fixed wing vertical flight with 1 switch
Hide thumbs Also See for A560:
Table of Contents

Advertisement

Quick Links

Download this manual
RadioLink Electronic Ltd
www.radiolink.com

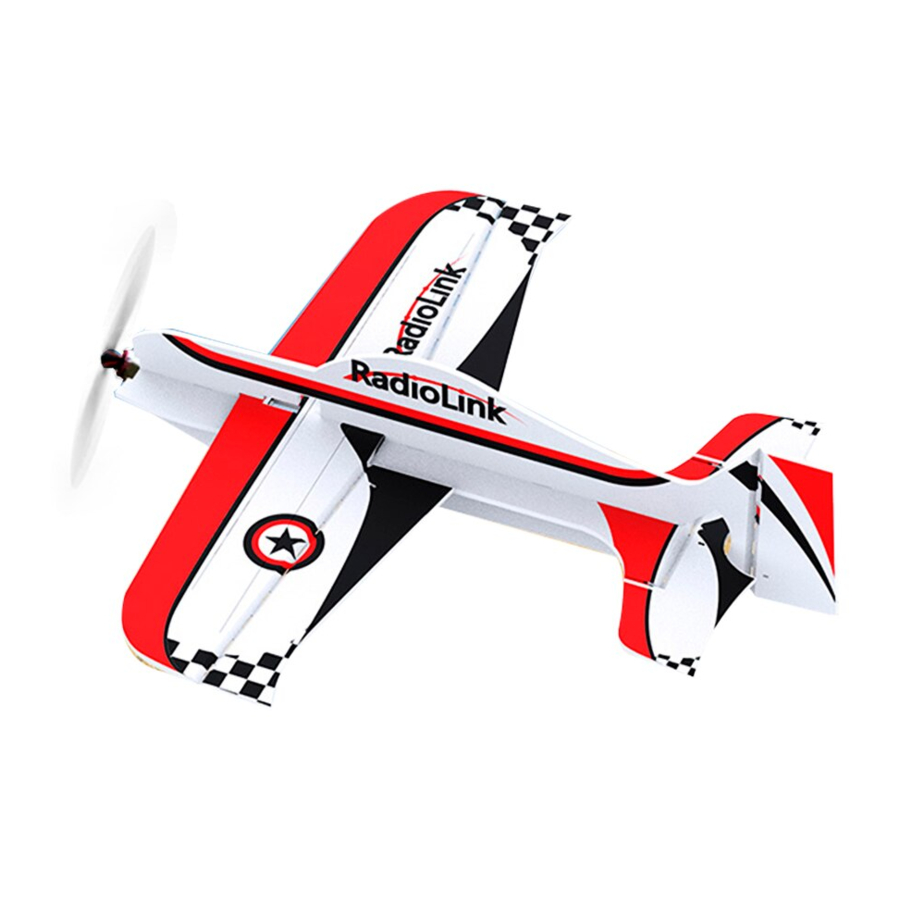

A560
3D Fixed Wing Vertical Flight with 1 Switch
Instruction Manual
CE FCC RoHS
* Note: There are 2 versions of A560, including RTF version and PNP version.
Please refer to page 3-22 of this manual for RTF version, and page 23-27 for PNP version.

Advertisement

Table of Contents
loading

Related Manuals for RadioLink A560

Summary of Contents for RadioLink A560

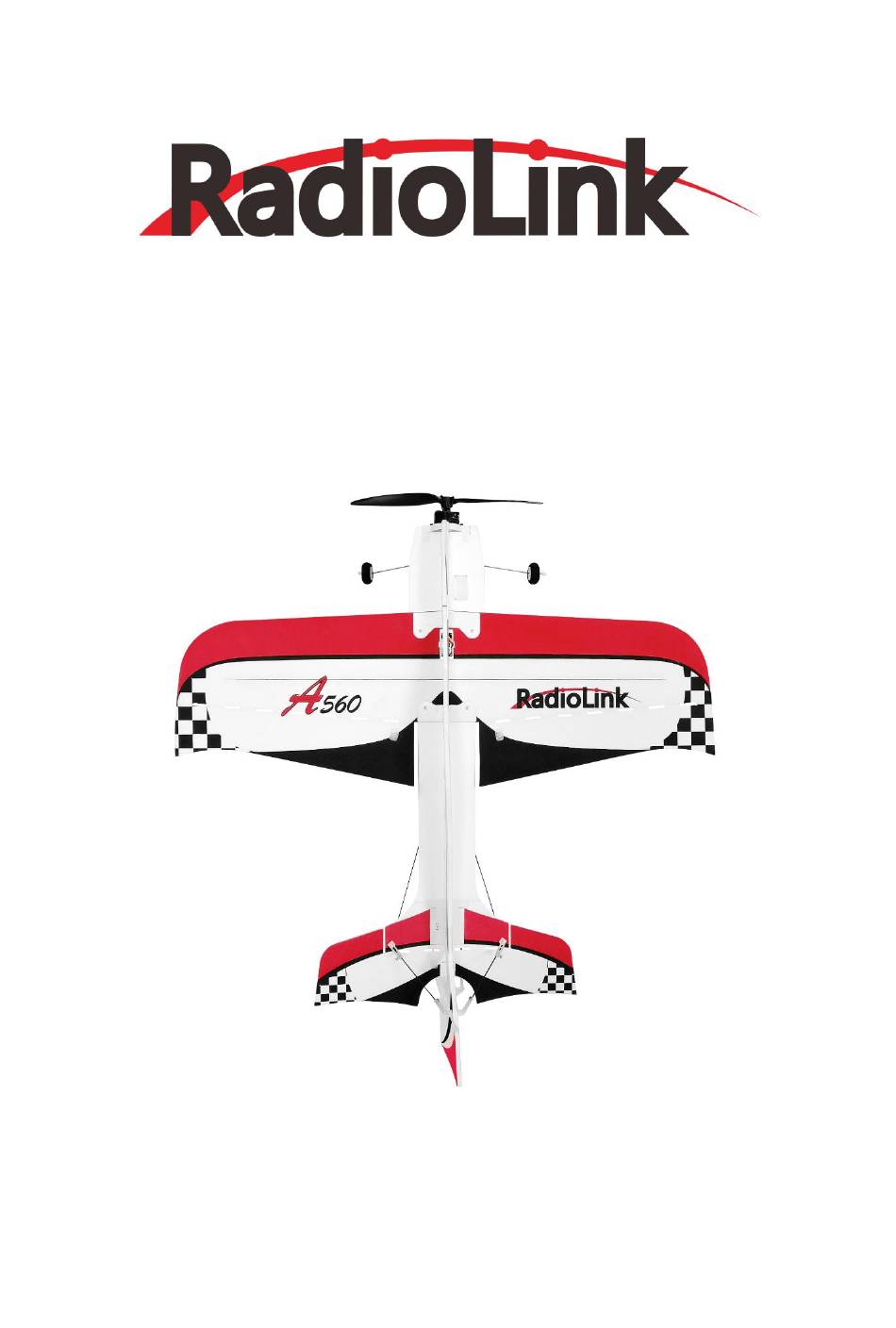

  • Page 1 3D Fixed Wing Vertical Flight with 1 Switch Instruction Manual CE FCC RoHS * Note: There are 2 versions of A560, including RTF version and PNP version. Please refer to page 3-22 of this manual for RTF version, and page 23-27 for PNP version.

  • Page 2: Table Of Contents

    1.1.2 Elevator Servo/Horizontal Tail ................5 1.1.3 Rudder Servo/Vertical Tail ................. 5 1.1.4 Drive Principle ....................6 1.2 A560 Units ........................6 1.3 Usage of A560 Units ..................... 7 1.3.1 Notice for Use .....................7 1.3.2 Transmitter & Receiver ..................7 1.3.3 Flight Controller Byme-A ..................8 1.3.4 Motor ........................
  • Page 3 A560 (PNP) Instruction Manual ....................23 Disclaimer and Warning ......................23 Packing List ..........................23 Chapter 1 General Introduction ....................23 Chapter 2 A560 Assembly ......................23 Chapter 3 Flight Mode ......................23 3.1 Receiver Connection ....................23 3.2 Transmitter Setup ......................24 3.2.1 Model Type Setup .................... 24 3.2.2 Transmitter Phase Setup ..................24...

  • Page 4: Disclaimer And Warning

    RadioLink product is operated, it means the operator understands this limitation of liability and accepts to take responsibility of the operation. Make sure to follow the local laws and agree to follow the principles that made by RadioLink. Fully understand that RadioLink cannot analyze the product damage or accident reason and cannot offer after-sales service if no flight record is provided.

  • Page 5: Packing List

    RadioLink Electronic Ltd www.radiolink.com Packing List Items Picture Fuselage EPP 5mm 560mm Wing EPP 5mm 560mm Tail (Horizontal Stabilizer) EPP RadioLink Transmitter T8S RadioLink Receiver R8FM RadioLink Flight controller Byme-A FULLYMAX 2S 7.4V 660mAh LiPo Battery Motor SZ-SPEED 2206F-1450KV FLYCOLOR 15A brushless ESC Propellers GEMFAN 8038 pore dia.3mm...

  • Page 6: Chapter 1 General Introduction

    A560 will lean to left or roll over to left. When the left aileron moves down and the right up, left aileron gets pushed by airflow upward and the right aileron is pushed downward, then A560 will lean to right or roll over to right.

  • Page 7: Drive Principle

    RadioLink Electronic Ltd www.radiolink.com airflow and the head of A560 will turn left. When rudder servo moves right, the vertical tail gets pushed to left and the head of A560 will turn right. Note The direction mentioned above is relative to aircraft instead of the ground. That is, if the aircraft is reversed (body upside down), its above is the ground instead of the sky/ceiling.

  • Page 8: Usage Of A560 Units

    1.3.2 Transmitter & Receiver A560 RTF(Ready To Fly) is packed with RadioLink 8-channel transmitter T8S and mini receiver R8FM, with the stable control distance up to 2000 meters. (Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations.) If it is the PNP version purchased, please refer to the manuals of the transmitter and receiver used for more details.

  • Page 9: Flight Controller Byme-A

    Channels on Byme-A flight controller: CH1-Aileron, CH2-Elevator, CH3-Throttle, CH4-Rudder, S.BUS/PPM-connect to receiver, SBUS/PPM signal supported. 1.3.4 Motor Motor installed on A560 is SZ 2206F 1500KV brushless motor. (Motor with higher KV value, means higher rotation speed and smaller torsion force, suits smaller propeller.) Usage of Motor: Make sure motors are installed tightly and rotate smoothly.

  • Page 10: Esc

    Another function of ESC is to lower the model voltage to 5V for receiver as the battery applied for A560 is 7.4V 2S LiPo Battery. Therefore, there are three wires of ESC respectively for battery, motor and receiver.

  • Page 11: Battery

    Make sure the transmitter and aircraft are fully charged.  When A560 flies for about 10 minutes, if the power of the aircraft drops when the throttle  is pushed, the battery voltage on the aircraft is insufficient. At this time, please return to the flight immediately to avoid the failure of the aircraft to return due to the insufficient power battery voltage and the over-discharge of the battery.

  • Page 12: Chapter 2 A560 Assembly

    2. Second, insert the balance port of the standard 2S lithium battery of A560 into the 2S battery balance port of the charger. Then the LED indicators turns red, which means it starts to charge the battery.

  • Page 13: Five Flight Modes

    Vertical Flight Mode can be changed with one switch and control as multicopter, pilots can make the fixed wing automatically fly with the vertical posture. Tutorial video can be checked via https://youtu.be/N2Gm4OUhu-c At this mode, A560 will keep vertical attitude automatically. The attitude algorithm of flight...
  • Page 14 RadioLink Electronic Ltd www.radiolink.com controller will convert the joystick output to the horizontal coordinates and control with full posture. Below is the picture illustration with Mode 2 as example: When the aircraft is vertical, toggle the aileron joystick(CH1) to control the aircraft moving left or right.

  • Page 15: Stabilize Mode

    Different form manually control, Stabilize Mode with flight controller balancing, is suitable for beginners to practice level flight. The model attitude (inclination angles) is controlled by joysticks. When the joystick is back to central point, A560 will level. The max inclination angle is 70° for rolling while that for pitching is 45°.

  • Page 16: Gyro Mode

    At this more advanced mode, the integrated three-axis gyro assists to increase the stability. But A560 won’t level even the joystick is back to central point. The joystick control the rotation(angle speed) of the aircraft. That is, when rolling, pitching or rudder joystick is toggled,...

  • Page 17: Acrobat Mode

    Combination of Stabilize Mode and Gyro Mode makes it easy to realize various free styles such as rolling, rapid pitching, backward, side flight and spiral descending. A560 will level when the joystick is back to central point. If the joystick is toggled with small range, A560 will move to the corresponding directions.

  • Page 18: Chapter 5 Servo Phase

    5.1 Transmitter Phase 5.1.1 Transmitter Phase Setup A560 RTF version has already set up transmitter phase, but please check it again before taking off. Please check the transmitter phase in T8S Parameter Setup APP. Enter the basic menu. Set CH1/CH2/CH4 to NORM, and CH3 to REV, as shown below: Click https://www.radiolink.com/t8s_apps to download T8S Parameter Setup APP and click...
  • Page 19 RadioLink Electronic Ltd www.radiolink.com （2）Elevator phase Toggle the elevator joystick downward, elevator servo(horizontal tail) is lifted; toggle the joystick upward, elevator servo(horizontal tail) is pressed, meaning the elevator phase is correct.

  • Page 20: Transmitter Phase Adjustment

    RadioLink Electronic Ltd www.radiolink.com （3）Rudder Phase Toggle the rudder joystick to left, rudder servo(vertical tail) turns to left; toggle the joystick to right, rudder servo(vertical tail) turns to right, meaning the rudder phase is correct. （4）Throttle Phase Toggle the throttle joystick to the bottom and the motor stays still. Gently push the throttle stick upward, motor moves faster and faster, meaning throttle servo correct.

  • Page 21: Flight Controller Phase

    After checking the right transmitter phase, it is necessary to check the flight controller phase of A560. (The transmitter phase must be checked first, and then flight controller phase.) Make sure to switch to STABILIZE MODE (eg. T8S CH7-DOWN, CH5-DOWN) to check flight controller phases are correct before each flight.

  • Page 22: Flight Controller Phase Adjustment

    RadioLink Electronic Ltd www.radiolink.com （3）Rudder Phase on flight controller Toggle the rudder joystick to left, rudder servo(vertical tail) turns to left; toggle the joystick to right, rudder servo(vertical tail) turns to right, meaning the rudder phase on flight controller is correct.

  • Page 23: Chapter 6 Flight Controller Calibration

    (1) Push the throttle stick of the transmitter to the lowest position first, and then power on A560. If the throttle stick is pushed to the highest position and then power on A560, the ESC will enter the calibration mode.

  • Page 24: A560 (Pnp) Instruction Manual

    Chapter 3 Flight Mode 3.1 Receiver Connection For A560 PNP version, transmitter and receiver needs to be installed. A560 is compatible to all transmitters that supports SBUS/PPM signal. 1. First, install the receiver on A560 aircraft. Make sure the receiver is switched to SBUS/PPM signal mode, and then connect the receiver to Byme-A flight controller.

  • Page 25: Transmitter Setup

    3.2 Transmitter Setup 3.2.1 Model Type Setup For A560 PNP version, model type needs to be set as fixed wing in the transmitter. Take AT9S Pro as example( same as AT10II/AT9S/AT10/AT9). Steps: Power on the transmitter - Long press Mode to enter BASIC MENU - Turn the Dial to MODEL TYPE - Press Push to enter the menu and turn Dial to select ACROBASIC - Long press Push for 1 second and a notice “ARE YOU SURE”pops out - Press Push again and a...

  • Page 26: Five Flight Modes

    Take AT9S Pro as example. Flight modes are set by CH5(3-way switch SWC) and CH7(2-way switch SWD) as below. 3.3.2 Five Flight Modes Please refer to A560 RTF Chapter 3.2 Five Flight Modes. Chapter 4 Flight Precautions Please refer to A560 RTF Chapter 4 Flight Precautions.

  • Page 27: Chapter 5 Servo Phase

    Flight controller Byme-A needs to calibrate the attitudes/level to ensure the balance status. (1) It is advised to place the landing gear of A560 on the standard package, which is equivalent to raising the nose at an angle of about 20 degrees, and then operate the transmitter to calibrate the attitude.
  • Page 28 CH1 2000 µs (opentx +100), CH2 2000 µs (opentx +100) CH3 1000 µs (opentx -100), CH4 1000 µs (opentx -100) (3) Attitude calibration will be recorded by flight controller once the it is complete with success. Thank you again for using RadioLink products!
