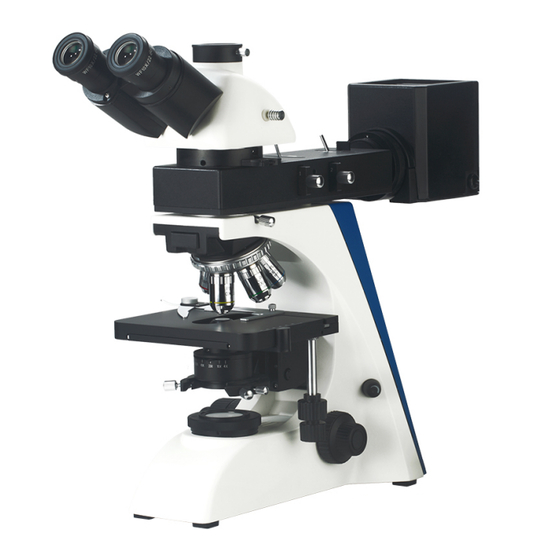

- Page 1 A13.2604-B Metallurgical Microscope Reflect & Transmit Instruction Manual To ensure the safety and obtain satisfactory performance, please study this instruction manual thoroughly be fore start to use the instrument.
- Page 2 Attentions！！ Purpose This series microscope is used only for microscopic observation , not available for other purpose, otherwise result in equipment damage. Disassembly only by the professionals The microscope has been adjusted before shipping, Unprofessional-person should not disassemble and remove any other parts. Disassemble and remove any other parts will result in equipment damage .
-
Page 3: Table Of Contents
Contents Purpose…………………………………2 1. Specifications ……………………… 3 2. Parts Name ………………………… 4-6 3. Installation & Operation…………… 7-8 4. Maintenance ………………………9 5. Troubleshooting ……………………10 6. Outfits………………………………11 Purpose: MIT upright / transmitting & reflecting metallurgical microscope with ergonomic design, equip with metallurgical infinity plan objective ,polarizing unit and 1X ,0.57X C-mount , also provide digital camera for CCD, SLR digital camera or special designing camera by our company. -
Page 4: Specifications
1. Specifications 1.1 Total magnifications Objective 100X Eyepiece 100X 200X 500X 800X 1000X 1.2 Objectives Numerical Aperture Working Distance Objective Type System Spring (N.A.) (mm) 0.13 16.04 0.25 18.48 Infinity Long Working 0.40 8.35 Distance Plan 0.70 1.95 Spring 0.80 0.85 Spring 100X... -
Page 5: Parts Name
2. Parts Name Aperture diaphragm lever Filter slider Polarizing slider Ground glass slider Field diaphragm lever Lamp house fix screw C-mount screw Halogen Seidentopf binocular lamp house (trinocular) head Eyepiece Diopter adjusting Trinocular lever Halogen Lamp Centering Knob Eyepiece tube fix screw Power line （with plug）... - Page 6 Camera adaptor (with dust cover)for trinouclar head tube Stage plate fix screw Coarse tension adjusting knob Left coarse Handle focusing knob Left fine Stage up-down focusing knob adjusting screw MIT300 Upright Metallurgical Microscope Power house Output socket Input socket Potentiometer Power switch Fuse Face of power house...
- Page 7 Stage Condenser fixed screw Condenser (aperture diaphragm Potentiometer Aperture diaphragm centering screw Polarizer (adjusting ring and fixed screw) Field diaphragm adjusting ring Clamp locking screw Adjustable Level for swing-out Condenser Power switch Condenser focusing knob Power socket and Fuse MIT500 Transmitting & Reflecting Metallurgical Microscope...
-
Page 8: Installation & Operation
3.Installation & Operation 3.1 Installation 1) Put out the main body, loose the body fixed screw. 2) Put out the reflection illumination unit and halogen lamp house, then fix the lamp house into the back of reflection illumination unit by the lamp house fixed screw. Insert the power wire of the lamp house into the power output socket of power house. - Page 9 Image of field diaphragm Range of eyepiece field Before adjustment After adjustment 7) Aperture diaphragm adjustment a. If reflection observing, pull the diaphragm slide handle to choose the available diaphragm. b. If transmitting observing, adjust the condenser aperture diaphragm lever to change the size of aperture diaphragm to change the contrast of the image.
-
Page 10: Maintenance
4. Maintenance 4.1 Clean microscope 4.1.1 Don’t touch the lens with hand, Dust on lens should be cleaned by soft brush or absorbent cotton or cleaned by absorbent cotton, lens paper with the mixture of alcohol and ether (proportion 1:4). 4.1.2 Alcohol and ether all are burnt early, please take them away from fire. -
Page 11: Troubleshooting
5. Troubleshooting In the period of using microscope, if there is any trouble occurs, please referring to the following sheet listed some common troubleshooting resolve them. Trouble Causation Remedy Plug is unreliable Plug in again Bulb is dark when switch on Bulb is broken Change bulb power.
