Mount the unit on a flat, vertical surface. Before mounting, remove the mounting brackets and connectors
from the unit, then pass the unit through the mounting opening.
Place and tighten mounting brackets.
K96D01-EN
The unit is designed for panel mounting. The user
should not be able to access parts of the unit other
than the front panel.

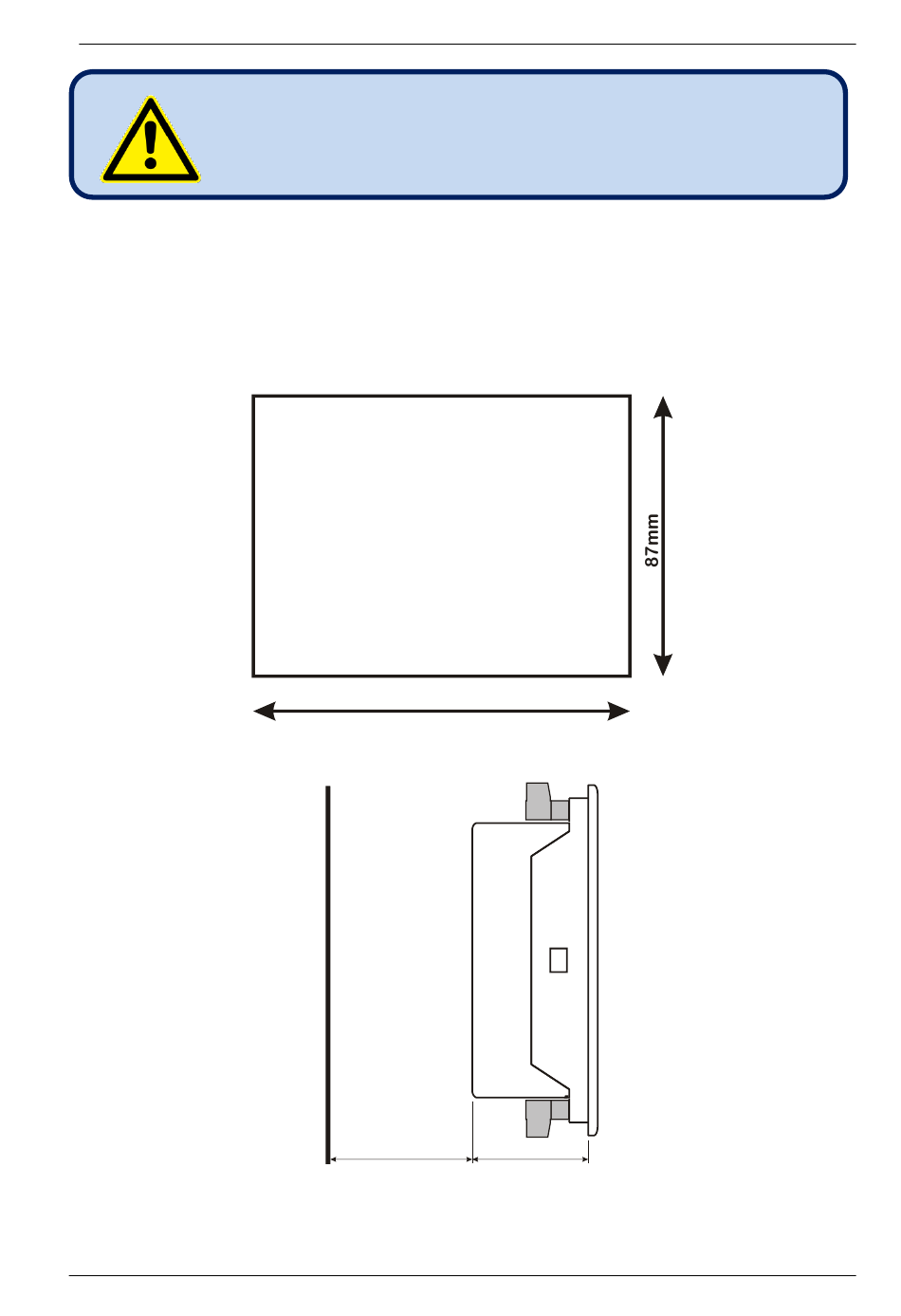

117mm
Panel Cutout
WALL
min 60mm
Required Panel Depth
40mm
