- Page 1 - NDA required! Evaluation Board for XMC4000 Family XMC4700/XMC4800 Relax Kit Series-V1 Board User Manual Please read the sections "Important notice" and "Warnings" at the end of this document Rev. 1.4 www.infineon.com 2022-06-20...
-
Page 2: Table Of Contents
restricted - NDA required! Evaluation Board for XMC4000 Family XMC4700/XMC4800 Relax Kit Series-V1 Table of contents Table of contents Table of contents ............... 2 Introduction . -
Page 3: Introduction
-M4 based XMC microcontroller from Infineon Technologies AG. It can be used with a wide range of development tools including Infineon’s free of charge Eclipse based IDE DAVE. The XMC4700/XMC4800 Relax Kit Series-V1 are designed to evaluate the capabilities of the XMC4700/ XMC4800 Microcontroller. -
Page 4: Key Features
restricted - NDA required! Evaluation Board for XMC4000 Family XMC4700/XMC4800 Relax Kit Series-V1 1 Introduction • XMC4700 Relax • XMC4800 Relax EtherCAT The XMC4700 Relax Kit and the XMC4800 Relax EtherCAT ® Kit feature with an Ethernet-enabled communication option, for example to run an embedded web server. You can store your own HTML web pages on a microSD Card or control the XMC4700/XMC4800 via the web browser on your PC Additional voltage level shifters and Aruino connection header on theXMC4700 Relax Kit for 5V Shields allow the usage of Arduino shields with 3.3V or 5V logic level... -
Page 5: Block Diagram
restricted - NDA required! Evaluation Board for XMC4000 Family XMC4700/XMC4800 Relax Kit Series-V1 1 Introduction Table 2 (continued) Kit Features of Assembly Versions Feature XMC4700 XMC4700 XMC4700 XMC4800 Relax Relax Kit Relax Kit Relax ® Lite Kit for 5V EtherCAT Shields microSD Card Slot CAN Transceiver... -
Page 6: Hardware Description

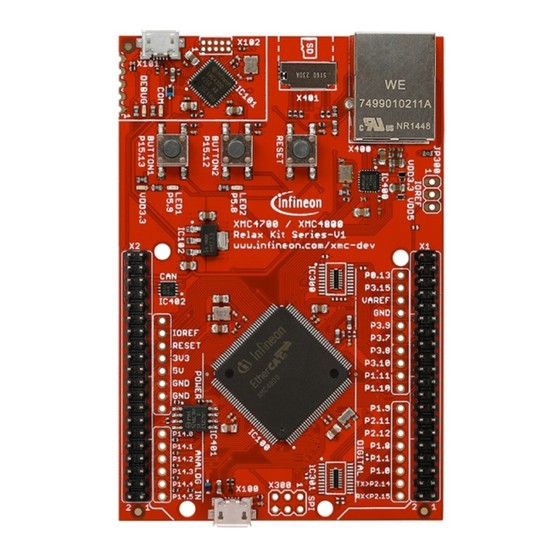

restricted - NDA required! Evaluation Board for XMC4000 Family XMC4700/XMC4800 Relax Kit Series-V1 2 Hardware Description Pin Header X1 2x20, 0.1" XMC4700 / XMC4800 25 MHz Relax Kit Series-V1 Crystal Pin Header Arduino™ (DIGITAL) RJ45 RMII Level EtherCAT, U1C0, CCU80, ADC, RX/TX, SPI, micro SDMMC... - Page 7 restricted - NDA required! Evaluation Board for XMC4000 Family XMC4700/XMC4800 Relax Kit Series-V1 2 Hardware Description Figure 2 XMC4700 Relax Lite Kit Figure 3 XMC4700 Relax Kit for 5V Shields Board User Manual Rev. 1.4 2022-06-20...
- Page 8 restricted - NDA required! Evaluation Board for XMC4000 Family XMC4700/XMC4800 Relax Kit Series-V1 2 Hardware Description Figure 4 XMC4700 Relax Kit ™ Figure 5 The XMC4800 Relax EtherCAT Kit includes the XMC EtherCAT PHY Board Board User Manual Rev. 1.4 2022-06-20...
-
Page 9: Power Supply
X101 and the USB Debug Device drivers are installed on this PC, the DEBUG LED will turn from blinking to constant illumination. ARDUINO POWER Pin Header IC402 IC400, IC401 XMC4700 / XMC4800 IFX1051LE Ethernet Relax Kit Series-V1 Phy, QSPI Transceiver Flash IC100 Infineon XMC4700 / JP300, IOREF 3.3V XMC4800 Micro- controller IC300, IC301 Power X100 Voltage Level Infineon Micro 3.3V... -
Page 10: Pin Header X1 And X2
restricted - NDA required! Evaluation Board for XMC4000 Family XMC4700/XMC4800 Relax Kit Series-V1 2 Hardware Description Pin Header X1 and X2 The pin headers X1 and X2 can be used to extend the evaluation board or to perform measurements on the XMC4700 / XMC4800. -
Page 11: User Push Buttons And User Leds
restricted - NDA required! Evaluation Board for XMC4000 Family XMC4700/XMC4800 Relax Kit Series-V1 2 Hardware Description (Top View) P0.13 / I2C_SCL / U1C1.SCLKOUT ADC5 / VADC.G0CH0 P14.5 P3.15 / I2C_SDA: U1C1.DOUT0 ADC4: VADC.G0CH1 P14.4 VAREF AREF: VAREF P3.9 SPI_CLK: U2C0.SCLKOUT N.C. -
Page 12: Debugging And Uart-To-Usb Communiction
™ development platform for the XMC microcontroller families to simplify and shorten SW development. It can be downloaded at www.infineon.com/dave. The latest Segger J-Link Driver can be downloaded at http:// www.segger.com/jlink-software.html. Table 5 shows the pin assignment of the XMC4700/XMC4800 used for debugging and UART communication. -
Page 13: Reset
The XMC4700 Relax Kit and the XMC4800 Relax EtherCAT Kit provide a CAN interface via the X2 connector. Infineon’s high speed CAN transceiver IFX1051LE for industrial application supports 3.3V I/O logic and is suitable for 12V and 24V bus systems with an excellent EMC performance. The CAN bus (signals CANH, CANL) is not terminated by a 120 Ohm and needs to be terminated externally. -
Page 14: Microsd Card
restricted - NDA required! Evaluation Board for XMC4000 Family XMC4700/XMC4800 Relax Kit Series-V1 2 Hardware Description microSD Card The XMC4700 Relax Kit and the XMC4800 Relax EtherCAT Kit provide a microSD card slot (X401). The microSD card can be operated in SD mode via the SDMMC peripheral or in SPI mode via the USIC0 Channel1 (U0C1) of the XMC4700/XMC4800. -
Page 15: Boot Option
restricted - NDA required! Evaluation Board for XMC4000 Family XMC4700/XMC4800 Relax Kit Series-V1 3 Production Data 2.11 Boot Option During power-on-reset the XMC4700/XMC4800 latches the signal level at the pins TMS and TCK. Based on the logic levels latched at these pins after reset the XMC4700/XMC4800 starts booting in different modes. TMS and TCK pins are used for debugging and by default program execution is always starting from on-chip flash (normal mode). - Page 16 restricted - NDA required! Evaluation Board for XMC4000 Family XMC4700/XMC4800 Relax Kit Series-V1 3 Production Data Figure 9 Relax Kit Schematic: MCU, Push Buttons, LEDs, Reset Button, Crystals, USB Board User Manual Rev. 1.4 2022-06-20...
- Page 17 restricted - NDA required! Evaluation Board for XMC4000 Family XMC4700/XMC4800 Relax Kit Series-V1 3 Production Data Figure 10 Relax Kit Schematic: OBD Probe, Ethernet, Quad-SPI Memory, microSD Card Slot Board User Manual Rev. 1.4 2022-06-20...
- Page 18 restricted - NDA required! Evaluation Board for XMC4000 Family XMC4700/XMC4800 Relax Kit Series-V1 3 Production Data Figure 11 Relax Kit Schematic: Pin Header, Voltage Level Shifter, Power Supply, CAN transceiver Board User Manual Rev. 1.4 2022-06-20...
- Page 19 restricted - NDA required! Evaluation Board for XMC4000 Family XMC4700/XMC4800 Relax Kit Series-V1 3 Production Data ™ Figure 12 EtherCAT Phy Board Schematic: Input and Output Phy Board User Manual Rev. 1.4 2022-06-20...
- Page 20 restricted - NDA required! Evaluation Board for XMC4000 Family XMC4700/XMC4800 Relax Kit Series-V1 3 Production Data ™ Figure 13 EtherCAT Phy Board Schematic: Power, Connectors, LEDs Board User Manual Rev. 1.4 2022-06-20...
- Page 21 restricted - NDA required! Evaluation Board for XMC4000 Family XMC4700/XMC4800 Relax Kit Series-V1 3 Production Data VDD3.3 R108 ECAT P ort0 IN P 1.15 ECAT0.P 0_LINKB 270R/0603 V100 LED-GE/D/0603 L100 LED-GN/D/0603 V101 R109 P 6.3 BLM18P G600 VDD3.3 C101 C102 270R/0603 ECAT0.P 0_LINK_ACT U101...
- Page 22 restricted - NDA required! Evaluation Board for XMC4000 Family XMC4700/XMC4800 Relax Kit Series-V1 3 Production Data P in he a de r Re la x Kit VDD3.3RK VDD3.3RK VDD5 P 1.14 VDD5 ECAT0.P 0_RX_ERRB P 2.6 P 5.7 ECAT0.P 0_RXD3B ECAT0.P 0_RX_DVB P 5.6 P 5.5...
- Page 23 restricted - NDA required! Evaluation Board for XMC4000 Family XMC4700/XMC4800 Relax Kit Series-V1 3 Production Data Figure 16 ™ EtherCAT Phy Board Schematic: Input and Output Phy (see Revision 1.4) Board User Manual Rev. 1.4 2022-06-20...
-
Page 24: Components Placement And Geometry
The list of material is valid for the XMC4700/XMC4800 Relax Kit Series-V1. Table 12 List of Material Value Device Reference Designator Note IFX1051LE TSON8 CAN Transceiver Infineon IC402 15pF 50V 10% 0402 Capacitor COG C116, C117, C121, C122 15pF 50V 10% 0402 Capacitor COG C400, C401... - Page 25 Crystal 32.768KHz SMD 12.5pF Q400 NDK NX3215SA-32.768K BAT64-02V SC79 Diode Infineon D400, D401 BAS3010A-03W SOD323 Diode Schottky 30V 1A Infineon 2 D101, D103 KSZ8081RNACA QFN24 Ethernet PHY RMII Micre IC400 BLM18PG600SN1D 0603 Ferrite Bead 60R 500mA Murata 4 L100, L101, L102, L103...
- Page 26 2x5pin 0.05" Pin Header THT FTSH-105-01-F- X102 no ass. 5-pin 0.1" Pin Header THT no assembly X103 ESD8V0L2B-03L TSLP-3- 1 Diode Protection Infineon D100, D102 FSM2JSMA Pushbutton ON SMD Tyco SW100, SW101, SW102 0R 1% 0402 Resistor R110...
-
Page 27: Revision History
Value Device Reference Designator Note IFX1117MEV33 SOT223 Voltage Regulator 3.3 V Infineon 1 IC102 Agenda: A: Assembled on Relax Kit for 5V Shields only B: Assembled on Relax Kit and Relax EtherCAT Kit only C: Assembled on Relax EtherCAT Kit only... -
