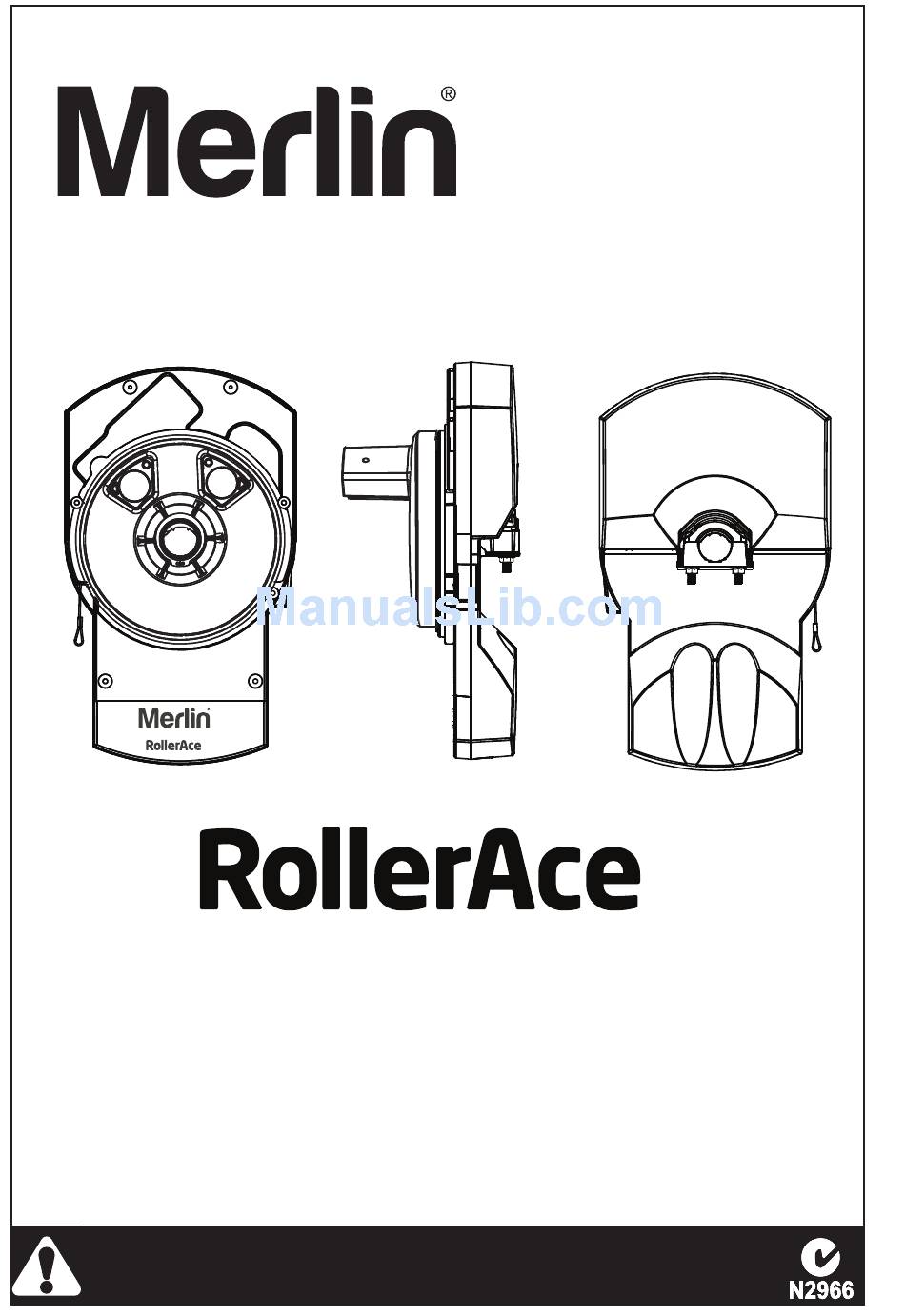

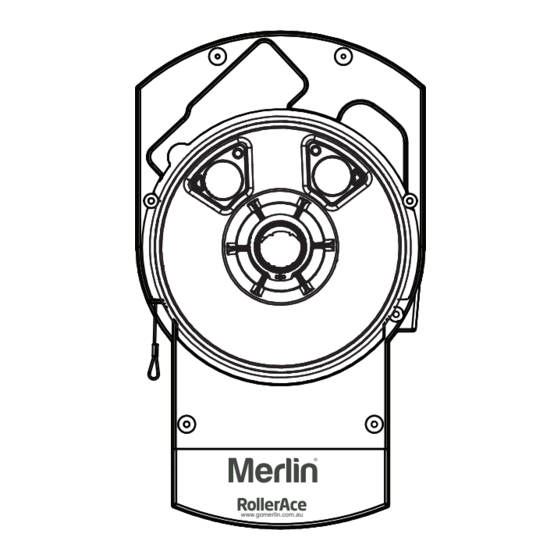

- Page 1 gomerlin.com.au gomerlin.co.nz www.gomerlin.com.au MR60 Rolling Garage Door Opener Installation and Operating Instructions Owners Copy: Please keep these instructions for future reference This manual contains IMPORTANT SAFETY information. DO NOT PROCEED WITH THE INSTALLATION BEFORE READING THOROUGHLY.
-
Page 2: Table Of Contents
START BY READING THESE IMPORTANT SAFETY INSTRUCTIONS WARNING • Failure to comply with the following instructions may result in serious personal injury or property damage. • Read and follow all instructions carefully. • The garage door opener is designed and tested to offer safe service provided it is installed and operated in strict accordance with the instructions in this manual. -
Page 3: Carton Inventory
CARTON INVENTORY TOOLS REQUIRED 1. Instruction manual (this document) 1. Ladder 2. Stop collar 2. Adjustable wrench for U-bolts already 3. Clamp bracket installed on the door 4. Release handle and cord 3. 8mm socket, 10mm socket and 13mm extended 5. - Page 4 TESTING THE DOOR Complete the following test to ensure your door is well balanced, and not sticking or binding: • Disable all locks and remove any ropes connected to the garage door. • Lift the door to about halfway and then release it. The door should remain suspended entirely by its spring.
-
Page 5: Preparing The Opener
PREPARING THE OPENER Set opener position (left or right hand) For left hand side installations For right hand side installations the wire jumper should be removed. the wire jumper should be in place (factory installed). Attaching the extension poles (if required) Optional accessory not provided •... - Page 6 INSTALLATION STEPS FOR RIGHT HAND INSTALLATIONS Ensure that the opener position jumper (wire connector) is • installed (refer Section 7). • Place the opener in manual release mode (refer Section 11). • Open the roller door fully. For safety, tie a rope around the door. •...
-
Page 7: Attach Release Handle/Cord
ATTACH THE RELEASE HANDLE AND CORD • Thread one end of the rope through the hole in the top Release cord of the red handle so “NOTICE” reads right side up as shown. Secure with an overhand knot at least 25mm from the end of the rope to prevent slipping. -
Page 8: Connect Electric Power
SETTING THE LIMITS The travel limits regulate the points at which the door will stop when moving UP or DOWN. During the set up procedure, the motor will run and operate the door. The opener must be fully installed on the door and all installation steps completed before proceeding. -
Page 9: Adjustment
SETTING THE FORCE The force, as measured on the closing edge of the door, should not exceed 400N (40kg). If the closing force is measured to more than 400N, the Protector System must be installed (refer section 16). The force setting regulates the amount of power required to open and close the door. -
Page 10: Install The Protector System
INSTALL THE PROTECTOR SYSTEM™ (IR BEAMS) SAFETY FIRST! Whilst Chamberlain have engineered safety features into your garage door opener, we urge you to consider fitting IR Beams to your new garage door opener. In many countries these devices are compulsory to prevent serious injury or property damage. -
Page 11: Wireless Programming
WIRELESS PROGRAMMING (OPTIONAL ACCESSORIES) Activate the opener only when door is in full view, free of obstruction and properly adjusted. No one should enter or leave garage whilst door is in motion. Do not allow children to operate push button(s) or transmitter(s). Do not allow children to play near the door. Fix any wall control at a height of at least 1.5m and within sight of the door but away from any moving parts. -
Page 12: Keyless Device Programming
KEYLESS DEVICE PROGRAMMING Learn button programming (OPTIONAL ACCESSORIES ) Activate the opener only when the door is in full Press the purple Limits (learn) button, orange view, free obstruction properly LED will light adjusted. No one should enter or leave garage whilst the door is in motion. -
Page 13: Special Features
SPECIAL FEATURES - OPTIONAL Motion detecting control panel • Connect white/red wire to the red “wired wall control” quick connect terminal and the white wire to the white quick “wired wall control” connect terminal. The Protector System™ (IR Beams) • Connect both white wires to the white “safety beam” quick connect terminal and both white/black wires to the grey “safety beam”... -
Page 14: Troubleshooting
TROUBLESHOOTING • Clear any ice or snow from the garage floor area where the door closes. 1. The opener doesn't operate from either the • Repeat the limit and force setting in section 12 & 13. GREEN start button or the transmitters : Repeat safety reverse test after adjustments (refer to •... -
Page 15: Operation Of Your Opener
• when the power is briefly interrupted; • when the opener is activated. Operating Frequency: 433.92MHz (the light turns off automatically after 2-1/2 minutes). SPECIAL NOTE: Merlin strongly recommends that the Protector System be installed on all garage door openers. -
Page 16: Warranty
Australian Consumer Law. ® Merlin RollerAce MR60 Roller Door Opener (Unit) that all parts of the Unit, Liability – Australia only other than remote controlled transmitters and accessories, globes and Except as set out in the Australian Consumer Law (being Schedule 2 of the...
