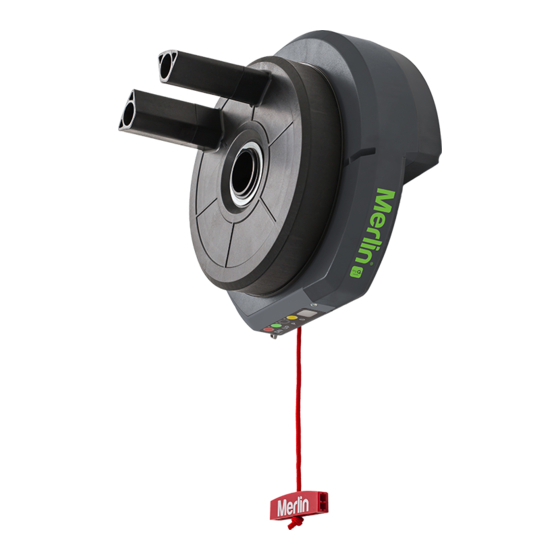

Merlin WeatherDrive MR555MYQ Installation And Operating Instructions Manual
Garage roller door opener
Hide thumbs
Also See for WeatherDrive MR555MYQ:
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Merlin WeatherDrive MR555MYQ
Summary of Contents for Merlin WeatherDrive MR555MYQ

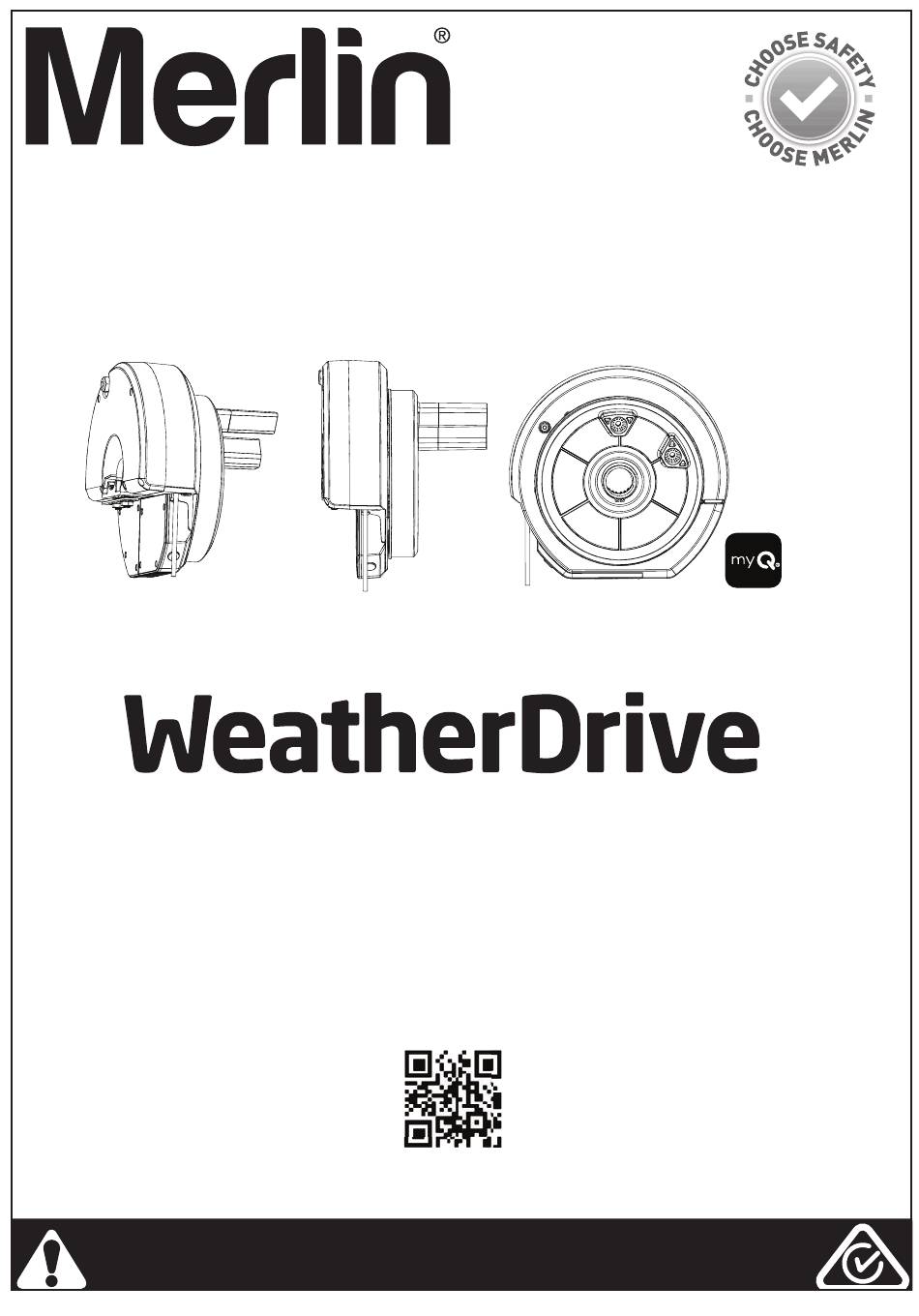

- Page 1 gomerlin.com.au gomerlin.co.nz capable MR555MYQ Garage Roller Door Opener Installation and Operating Instructions Owners Copy: SAVE THESE INSTRUCTIONS for future reference This manual contains IMPORTANT SAFETY information DO NOT PROCEED WITH THE INSTALLATION BEFORE READING THOROUGHLY...
- Page 2 MUST BE AVAILABLE when using the Key Lockable Feature. • This Merlin Unit is rated to IP34 and has a UV stabilizer added, however, to ensure the best operation of the opener the installer must ensure that it is protected from the elements by installing the Unit under cover.
- Page 3 IP RATING CHART IP Rating Chart Protection of persons and protection of equipment indicated by the IP code. Protection provided by enclosures for electrical equipment is indicated by the IP codes two: CHARACTERISTIC NUMERALS protection of persons against The second numeral indicates access to hazardous parts, protection of equipment against and protection of equipment...
-
Page 4: Table Of Contents
SAFETY INSTRUCTIONS WARNING • Failure to comply with the following instructions may result in serious injury or property damage. • Read and follow all instructions carefully. • The garage door opener is designed and tested to offer safe service provided it is installed and operated in strict accordance with the instructions in this manual. -
Page 5: Carton Inventory
INTRODUCTION CARTON INVENTORY TOOLS REQUIRED Quik start guide Ladder Stop collar Adjustable wrench for U-bolts already installed on the door 8 mm socket, 10 mm socket and 13 mm extended socket Clamp bracket and socket wrench Release handle, cord, keys and risk of entrapment card 300 mm socket extension (for minimum side-room E970M four button remote control (2) installations) -
Page 6: Control Panel
INTRODUCTION CONTROL PANEL Terminal Block: used for external accessories (see chart below). NOTE: The terminal block is weather protected by a rubber grommet. When using external wiring, the cable holes can be punched through with a small screwdriver. These holes should be sealed with silicon sealant in order to maintain the weather proof rating. -
Page 7: Prepare & Test The Door
INSTALLATION TESTING THE DOOR Complete the following test to ensure your door is well balanced, and not sticking or binding: • Disable all locks and remove any ropes connected to the garage door. • Lift the door to about halfway and then release it. The door should remain spring balanced. -
Page 8: Pinning The Door
INSTALLATION PINNNG THE DOOR Free curtain Ballooning Add fasteners here Note: A ballooning door may delay the safety reversal response and can compromise garage door security. • To remedy any ballooning, insert the supplied self tapping metal screws into where the curtain leaves the roll. Secure these through the curtain into the drum wheel at each end of the roll. -
Page 9: Manual Release Key Lockable
INSTALLATION KEY LOCKABLE RELEASE The use of the Key Lockable Release is for use in Commercial Applications ONLY, and not to be used when installed in a residential Application (refer Insert key into safety standard AS/NZS 60335.2.95). An alternative Release Handle exit path from the building MUST BE AVAILABLE when using the Key Lockable Feature Lock or unlock... -
Page 10: Installation Procedure
INSTALLATION INSTALLATION PROCEDURE Do not allow people to walk under or around the door during the installation process as serious injury can occur. NOTE: The opener can be installed on either side of the door. The following instructions are for RIGHT HAND INSTALLATIONS (as illustrated i.e. - Page 11 INSTALLATION SETTING THE LIIMITS FOR RIGHT OR LEFT HAD OPERATION AND FORCE Travel limits set how far your door goes up and down. Your opener must also be configured for right or left hand installation. If not the door will rotate in the reverse direction. Program Buttons: The Control Panel diagram in section 4 identifies the Control Buttons and LED layout Audible Beep: An audible “BEEP”...
-
Page 12: Adjustment & Testing
INSTALLATION TESTING THE SAFETY REVERSE SYSTEM The safety reverse system test is important. The garage door must reverse on contact with a 40 mm obstacle laid flat on the floor. Failure to properly adjust the opener may result in serious personal injury from a closing garage door. -
Page 13: Timer To Close
The door may operate unexpectedly, therefore do not allow anything to obstruct the path of the door. SAFETY FIRST! Whilst Merlin have engineered safety features into your garage door opener, we urge you to consider fitting The Protector System (IR Beams) to your new garage door opener. In many countries these devices are compulsory to assist in preventing serious injury or property damage. -
Page 14: Travel Speed
PROGRAMMING TRAVEL SPEED (OPTIONAL) There are two travel speeds available for this opener.(Regular and Slow speed) The WeatherDrive MR555MYQ has been factory set for regular speed. SLOW Flash DN UP UP P P SPEED Setting the SLOW SPEED: 132A2940 •... -
Page 15: Audible Beep
PROGRAMMING AUDIBLE BEEP (OPTIONAL) The WeatherDrive (MR555MYQ) has been factory set for an audible “BEEP”. The Audible beep can be turned OFF by using the following method. • Start with the door fully CLOSED. • Press and Hold both “S” and “DN” buttons for 3 seconds. •... -
Page 16: Wireless Programming
PROGRAMMING WIRELESS PROGRAMMING (REMOTE ACCESSORIES) NOTE: The transmitters supplied with your opener are preprogrammed by the factory. Activate the opener only when door is in full view, free of obstruction and properly adjusted. No one should Flash enter or leave the garage while the door is in motion. DN UP UP P P Do not allow children to operate push buttons or... -
Page 17: Operating Your Opener
3 minutes when the opener is activated. Max. drum rotations: Memory registers: 433.30/433.92/434.54 MHz Operating frequency: C to -25 Operating temperature: SPECIAL NOTE: Merlin strongly recommends that The Protector System (IR Beams) be installed on all garage door openers. -
Page 18: Wiring
WIRING SECTION TYPICAL WIRING DIAGRAM WEATHERDRIVE (MR555MYQ) Information for Service Personnel green (4) grey (3) white (2) red (1) External Receiver 24 vdc white white/black Wired Wall Button IR Beams REPLACE BATTERIES IN TRANSMITTERS Battery of the transmitters: The batteries in the transmitter have a long life. If the transmission range decreases, the batteries should be replaced. -
Page 19: Troubleshooting
TROUBLESHOOTING TROUBLESHOOOTING The opener will not operate from either the UP/DOWN The door opens but will not close (or reverses while activation button or the transmitters: closing): • Does the opener have electric power? Plug a lamp into the • Is something obstructing the door? Pull the manual release outlet. -
Page 20: Accessories And Spare Parts
NOTE: Use of any Chamberlain Group accessories are approved to use with this opener. This includes genuine NOTE: Use of any Chamberlain Group accessories are approved to use with this opener.This includes genuine Merlin accessories. Merlin accessories. Generic compatible accessories are NOT approved for use with this opener... - Page 21 OPERATION AND MAINTENANCE SPARE PARTS 002A1868 If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons 002A1865 in order to avoid hazard. 002A1871 002A1870 002A1874 002A1869 002A1872 002A1864 002A1873 002A2265 002A1865 Motor with gearbox &...
-
Page 22: Diagnostic Chart
OPERATION AND MAINTENANCE DIAGNOSTIC CHART Your garage door opener is programmed with self-diagnostic capabilities. The indicator LEDʼs 1 & 3 on the control panel will flash a number of times to indicate a fault code exists. DIAGNOSTIC CODE SYMPTOM POSSIBLE RESOLUTION LED1 LED2 The garage door opener will not... -
Page 23: Warranty
WARRANTY DON’T FORGET Warranty Registration To validate your warranty you must complete the registration form online at: gomerlin.com.au/warranty gomerlin.co.nz/warranty Get Connected with Additional purchase of the myQ Connectivity Kit is required to enable myQ functionality. Visit www.gomerlin.com.au or www.gomerlin.co.nz for more details. - Page 24 Unit to another location once it has been installed; quality and the failure does not amount to a major failure. 3 use of any copy, imitation or replica garage door remotes with your Merlin Unit; Chamberlain’s warranty...
