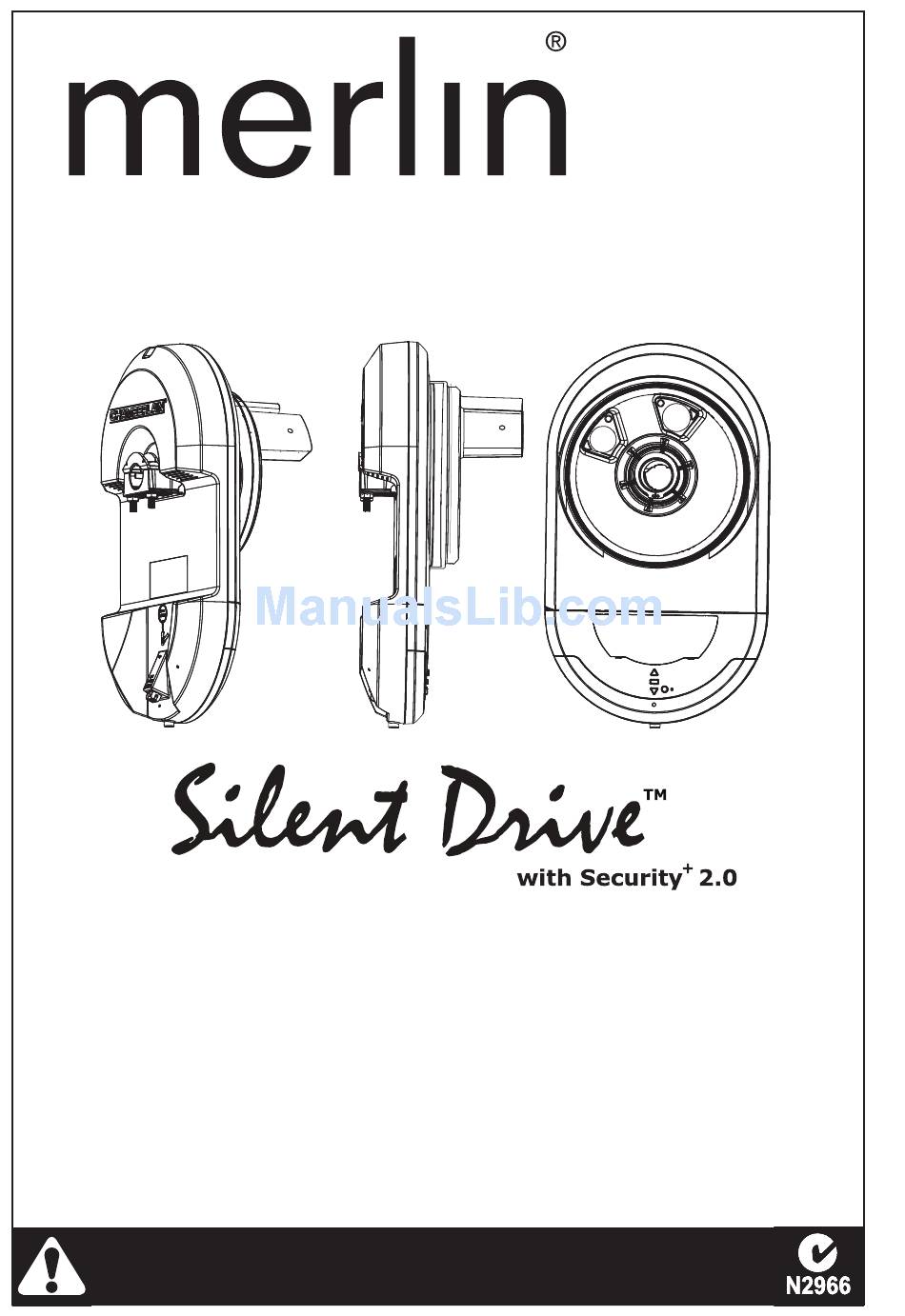

- Page 1 MR850EVO/MR650EVO Rolling Garage Door Opener Installation and Operating Instructions Owners Copy: Please keep these instructions for future reference This manual contains IMPORTANT SAFETY information DO NOT PROCEED WITH THE INSTALLATION BEFORE READING THOROUGHLY...
-
Page 2: Table Of Contents
START BY READING THESE IMPORTANT SAFETY INSTRUCTIONS WARNING • Failure to comply with the following instructions may result in serious personal injury or property damage. • Read and follow all instructions carefully. • The garage door opener is designed and tested to offer safe service provided it is installed and operated in strict accordance with the instructions in this manual. -
Page 3: Carton Inventory
TOOLS REQUIRED CARTON INVENTORY 1. Instruction manual (this document) 1. Ladder 2. Stop collar 2. Adjustable wrench for U-bolts already installed 3. Clamp bracket on the door 4. Release handle, cord and risk of entrapment card 3. 8 mm socket, 10 mm socket and 13 mm extended 5. - Page 4 TESTING THE DOOR Complete the following test to ensure your door is well balanced, and not sticking or binding: • Disable all locks and remove any ropes connected to the garage door. • Lift the door to about halfway and then release it. The door should remain spring balanced.
- Page 5 THE RELEASE HANDLE & CORD • Thread one end of the rope through the hole in the top of the red release handle so that “NOTICE” reads right side up as shown. • Secure with an overhand knot at least 25 mm from the end of the rope to prevent slipping.
- Page 6 ATTACHING EXTENSION POLES (IF REQUIRED) Optional accessory not provided • Align the extension pole holes with the drive legs. • Insert the extension poles into the drive leg and fix in place using screws provided. • Slide the reinforcing brace over the poles and fix in place using the screws provided.
-
Page 7: Connect Electric Power
INSTALLATION PROCEDURE Do not allow people to walk under or around the door during the installation process as serious injury can occur. NOTE: The opener can be installed on either side of the door. The following instructions are for Rope RIGHT HAND INSTALLATIONS (as illustrated i.e. -
Page 8: Installation
SETTING THE LIMITS FOR RIGHT OR LEFT HAND OPERATION AND FORCE Travel limits set how far your door goes up and down. Your opener must be configured correctly for right or left hand installation to operate correctly, if not the door will rotate in the reverse direction. NOTE: The MR850EVO/MR650EVO opener is factory configured for right hand installation. - Page 9 TESTING THE SAFETY REVERSE SYSTEM The safety reverse system test is important. The garage door must reverse on contact with a 40 mm obstacle laid flat on the floor. Failure to properly adjust the opener may result in serious personal injury from a closing garage door.
-
Page 10: Install The Protector
INSTALL THE PROTECTOR SYSTEM™ (IR BEAMS) OPTIONAL ACCESSORY NOTE: This accessory must be used for all installations where the closing force as measured on the bottom of the door is over 400 N (40 kgf). After the opener has been installed and adjusted, the Protector System™... -
Page 11: Wireless Programming
INSTALLING YOUR E128M WIRELESS WALL BUTTON Disconnect power to the opener whilst installing this accessory to prevent accidental activation. Locate minimum 1.5 m above the floor To install: • Carefully pry open the E128M and locate the two screws for mounting. - Page 12 KEYLESS DEVICE PROGRAMMING (OPTIONAL ACCESSORIES ) Activate the opener only when the door is in Locate full view, free of obstruction and properly the yellow adjusted. No one should enter or leave learn button garage whilst the door is in motion. Do not allow children to operate push button(s) or transmitter(s).
-
Page 13: Care Of Your Opener
OPERATION OF YOUR OPENER CARE OF YOUR OPENER When properly installed, your opener will operate Your opener can be activated by any of the following with minimal maintenance. The opener does not devices: require additional lubrication. Limit and Force Settings: These settings must be •... -
Page 14: Accessories & Wiring
ACCESSORIES 7. Model CM1702 Outside quick release 1. Model E128M 2 Channel wireless wall button 8. Model C77 The Protector System (IR Beams) 2. Model E940M 1 Channel transmitter 9. Model E475M-12 V Standby Power Unit (battery 3. Model E943M 3 Channel transmitter backup) - (MR850 only) 4. -
Page 15: Special Features
SPECIAL FEATURES - Information for Service Personnel (OPTIONAL ACCESSORIES) 1. Solenoid roller door lock (SRDLK01-12 V) - (MR850EVO only) 2. 12 VDC power output for external devices - (MR850EVO only) 3. The Protector System IR Beams - C77 4. LCD Motion detecting control - C198 5. -
Page 16: Spare Parts
SPARE PARTS - Information for Service Personnel 041A6811-2 If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid hazard. 001A6621 041A6812 026B0166 041B0655 041D7403 (MR850) 041D7403-1 (MR650) 001A6528 204D0250 (MR850) 204D0251 (MR650) -
Page 19: Troubleshooting
TROUBLESHOOTING • Repeat the limit and force setting in section 13. 1. The opener will not operate from either the Repeat safety reverse test after adjustments. ACTIVATION button or the transmitters : 9. The opener strains to operate door: • Does the opener have electric power? Plug a lamp into •... -
Page 20: Warranty
Unit (opener). ® Chamberlain warrants to the original purchaser of the following Merlin If this Chamberlain Limited Warranty does not apply, you may have rights Roller Door Openers: available to you under the Australian Consumer Law.
