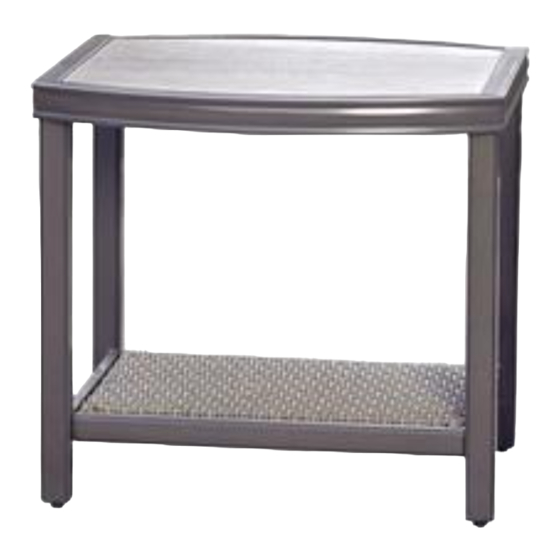

Backyard Creations 272-1213 Assembly Instructions

IMPORTANT!! PLEASE READ ENTIRE INSTRUCTION SHEET BEFORE ASSEMBLY!!
TO EXPEDITE ANY FUTURE WARRANTY CLAIMS, PLEASE KEEP INSTRUCTION SHEET, WARRANTY CARD, AND RECEIPT.
Remove all protective materials and set parts on a flat,
Step 1:
non-abrasive surface. Identify the parts packed in the
carton against the parts list. If you are missing any parts or
unsure how to proceed with assembly, call our Customer
Service Center at 1-800-416-3511.
assembly if any parts are missing or damaged.
Step 2: Place the table top upside down on a flat, non-abrasive
surface. Attach a table leg to the table top by using two
1/4"x20mm bolts and washers as shown in
Guide the bolts through the holes in the leg into the
pre-drilled holes in the table top .
2-3 turns. Repeat for the other leg.
FOOT CAP
C
D
F
A
Figure 1
Step 3: Attach the leg connector bracket to the two legs to by
using the four 1/4"x35mm bolts and washers as shown
F igure
in
leg connector bracket,
Do not attempt legs.
F igure 1
.
B
Hand tighten only
Step 4: After making any necessary adjustments to the
alignment of the table, use the hex bolt driver to
tighten all bolts.
few revolutions at a time. In order to apply equal
pressure to all bolt joints, we recommend working in a
cross corner (X fashion). Repeat until all bolts are tight.
Do not over tighten
Step 5: With the help of another person, turn the table in the
upright position. Your table is now ready for use. If you
have any questions, please call our Customer Service
Center at 1-800-416-3511.
IMPORTANT NOTE: Damage to welds or frames resulting
from over tightened bolts or improper assembly is not covered
under our warranty. Please read all instructions carefully
before assembly. If you have any questions regarding your
assembly, call our Customer Service Center at 1-800-416-3511.
2
. Guide the bolts through the holes in the
into the pre-drilled holes in the
Hand tighten only 2-3 turns.
F
E
Figure 2
Note: each bolt must be tightened a
. Over tightening may strip bolts.
Page 2
* NOTE: PARTS SHOWN ON PARTS LIST ARE NOT TO SCALE
PARTS LIST DESCRIPTION
A
TABLE TOP
LEG CONNECTOR
B
BRACKET
C
TABLE LEG
D
1/4" X 20 MM BOLT
E
1/4" X 35 MM BOLT
Ø6.5 X 1.0 MM
F
WASHER
G
HEX BOLT DRIVER
FOOT CAP
FACTORY ASSEMBLY
S3-AGT12420K01
ORDER PART # QTY
AT53129 1
1
AT53130
AT53131 2
4
HW0036
4
HW0142
8
HW0004
HW0006 1
FC0007
