Backyard Creations 2721898 Assembly Instructions

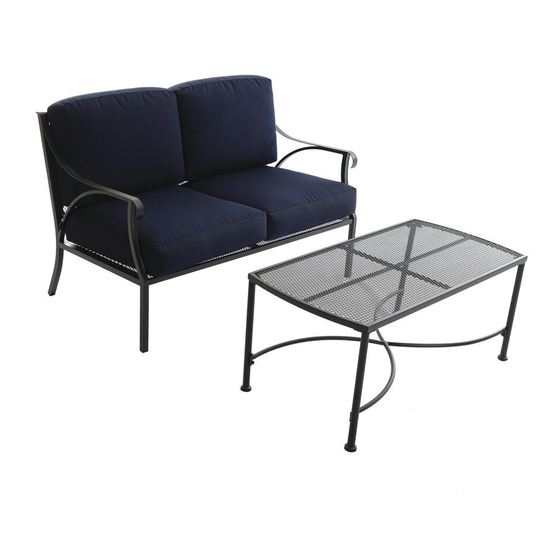

Oceanside Loveseat
Item #
2721898, -1899, -1901 / M21039LST, -40LST, -41LST
Assembly Instructions
**TO AVOID POTENTIAL SCRATCHING TO PARTS BY ROUGH GROUND SURFACE, COVER GROUND
WITH SOFT SMOOTH PROTECTIVE MATERIAL ON WHICH TO PLACE PARTS DURING ASSEMBLY. **
Step 1: Remove protective wrapping and lay all parts on floor. Identify all parts packed in carton
against the parts list.
Step 2: Attach Right Arm and Left Arm Profile(B and C) to Seat(A) using Bolts(E) and
Washers(F) as shown in Diagram 1.
Step 3: Then attach Back (D) to Right and Left Arm Profile (B and C) using Bolts(E) and
Washers(F) as shown in Diagram.
Step 4: Make sure all bolts are aligned properly and tightened sufficiently. Then place Bolt
Covers(G) over bolts.
NOTE: IT IS USER'S RESPONSIBILITY TO MAKE SURE ALL PARTS ARE ASSEMBLED AND
TIGHTENED PROPERLY AND SECURELY.
G
E
F
B
A
C

Diagram 1

1 of 2
