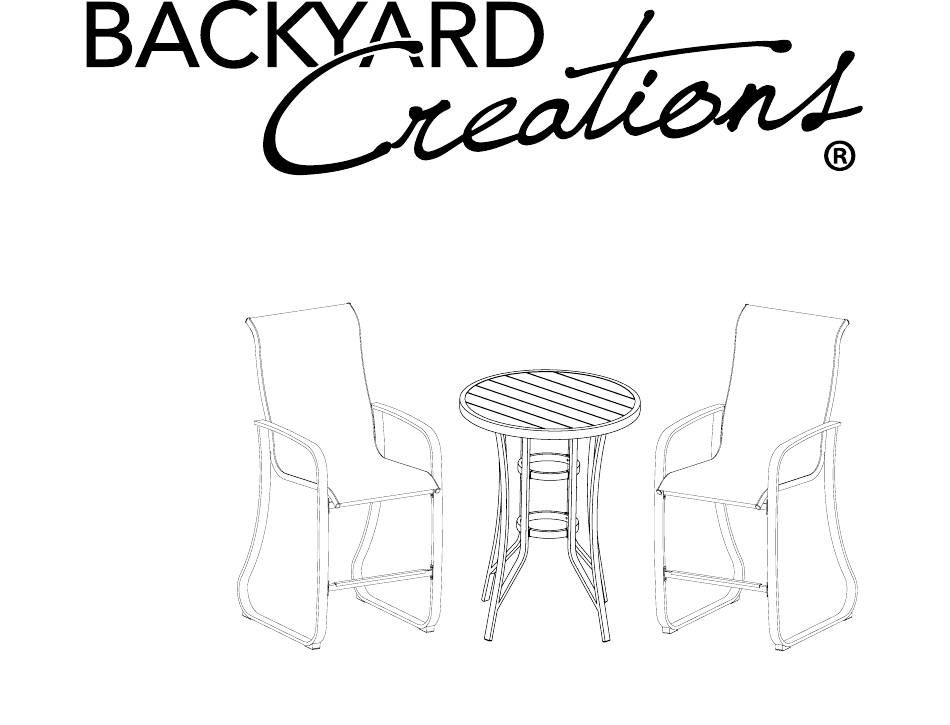

- Page 1 Ellington Collection 3-Piece High Dining Set style # FCS60622HST sku # 2721196 >>assembly instructions...
-
Page 2: Before You Begin
IMPORTANT WARNING: Unpack the box on a clean soft level surface and make sure all parts have been included. If you have any questions or concerns, please visit our website at: www.yotrioint.com or toll free at: 1-866-905-4107 Monday-Friday 8:30 am to 5:00 am pacific standard time / 11:30 am to 8:00 pm eastern standard time. or email us at: customerservice@yotrious.com ATTENTION: These Bar Chair and Bar Table are not intended for use during any kind of inclement weather and the manufacturer is not... - Page 3 table of contents introduction hardware parts list assembly 6-11 QUESTIONS? Please call 1-866-905-4107 parts and service. For faster service, have the style nember and SKU number ready when calling.
- Page 4 hardware (Part I)×16 (Part J)×12 (Part K)×16 (Part L)×1 M6*25mm bolt with washer allen wrench M6*15mm bolt with washer M6*30mm bolt with washer ATTENTION: THE HARDWARE KIT IS FOR 1 SET...
-
Page 5: Description Quantity
ITEM DESCRIPTION QUANTITY right leg left leg seat connect bar 1 connect bar 2 table top table leg connector bracket... - Page 6 step 01: (Part I)×4 (Part J)×3 M6*15mm bolt with washer M6*30mm bolt with washer (Part L)×1 allen wrench ATTENTION: To avoid damage to your new patio furniture, please use either the carton or another soft surface such as carpet as a working surface to prevent product damage during assembly.
- Page 7 step 02: (Part I)×4 (Part J)×3 M6*15mm bolt with washer M6*30mm bolt with washer (Part L)×1 allen wrench 1. Attach the right leg (A) to the seat (C) by lining up the bolt holes. 2. Secure with M6*30mm bolt with washer (J) using allen wrench (L). 3.
- Page 8 step 03 1. Tighten all the bolts. 2. Turn the chair to upright position onto a flat level surface. You are now ready to enjoy your new bar chair.
- Page 9 step 04: (Part K)×8 (Part L)×1 M6*25mm bolt with washer allen wrench 1. Attach the connector brackets (H) to the table legs (G) by lining up the bolt holes. 2. Secure with M6*25mm bolt with washer (K) using allen wrench (L). 3.
- Page 10 step 05: (Part K)×8 (Part L)×1 M6*25mm bolt with washer allen wrench 1. Attach the table leg (G) to the table top (F) by lining up the bolt holes. 2. Secure with M6*25mm bolt with washer (K) using allen wrench (L). 3.
- Page 11 step 06 1. Tighten all the bolts. 2. Turn the chair to upright position onto a flat level surface. You are now ready to enjoy your new bar table.
