Satel SPW-210 Quick Start Manual

The SPW-210 indoor siren is designed for operation in break-in and panic signaling
systems, as well as in fire alarm systems.
1. Description of Electronics Board
sound signal setting pins
Connect the control signal to the + SA – terminals. The SPW-210 indoor siren can
operate with any source of alarm signal on the signaling output of which 12V DC
voltage appears in emergency.
Connect the TMP terminals to the tamper circuit of the alarm system. The tamper
alarm is triggered after opening of the housing or pull-off of the device from the
surface.
Set the jumpers on the JP1 – JP5 pins to select one of the three sound signals for
alarm signaling.
signal 1
Fig. 2. Jumper settings to obtain the particular sound signal.
2. Installation
The SPW-210 indoor siren may only be used inside the protected facilities. It should
be installed on even surface in a possibly hard-to-access place, so as to minimize the
risk of tampering. The device should be secured to the surface by means of screws
and expansion bolts.
®
cables to piezoelectric

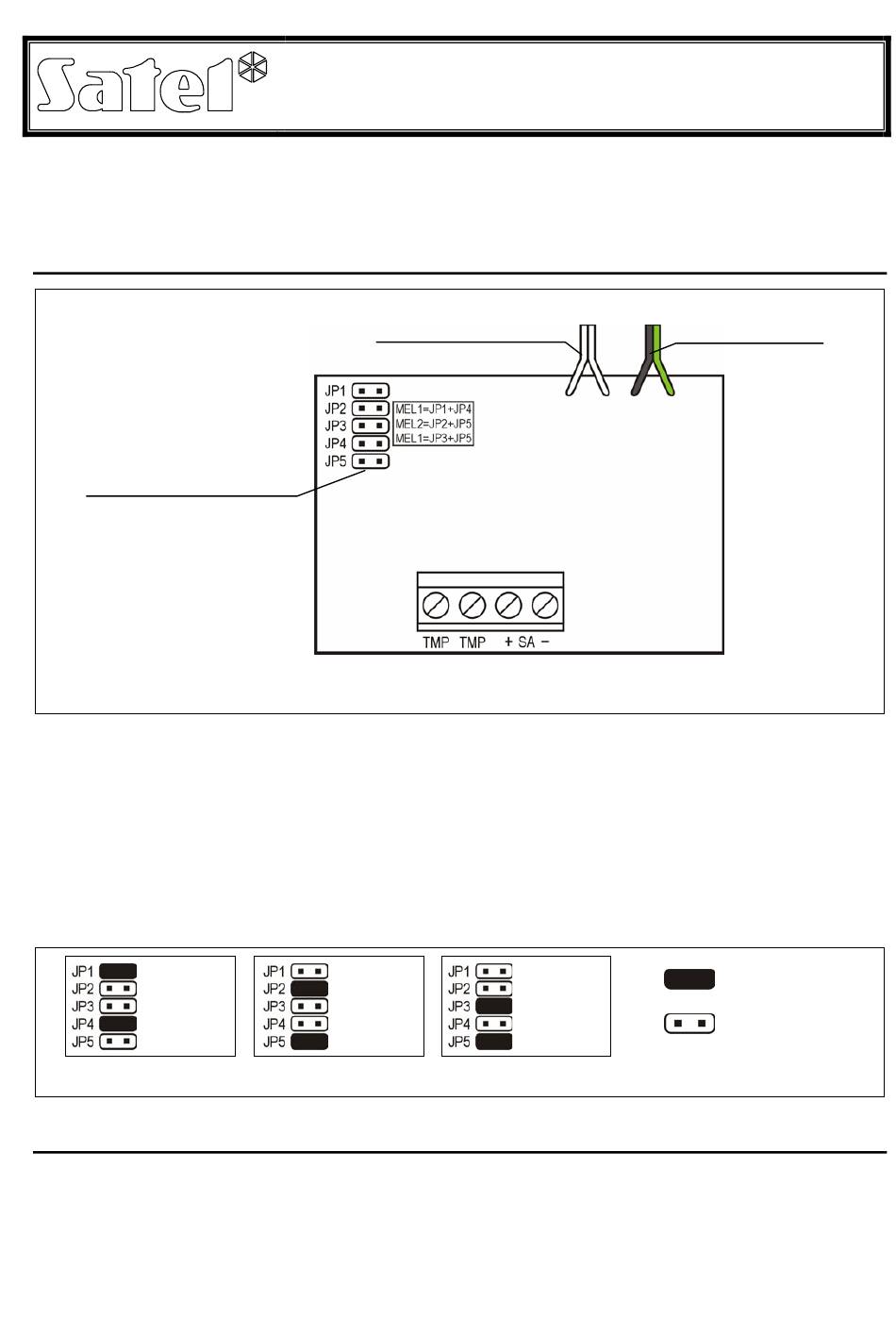

Fig. 1 View of electronics board.
signal 2
INDOOR SIREN
SPW-210
transducer
signal 3
spw210_e 06/05
cables to tamper
contact
- pins shorted
- pins open
