The SPL-5010 outdoor siren is designed for application in burglary and panic alarm systems.
The signaling function is performed in two ways: optically (by blinking of indicator LEDs
situated in the lower part of the enclosure) and acoustically (with a modulated high-volume
sound signal). The source of light is a set of LEDs, while the sound signal is generated by
means of a piezoelectric transducer. Design of the signaling device housing ensures a high
degree of tamper protection (against opening and/or tearing off from the base). Electronic
circuit is made in SMD technology and impregnated against adverse effect of weather
conditions, which ensures a high reliability of the equipment. As the outer shell of the
SPL-5010 is made of PC LEXAN high-impact polycarbonate, it features a very high
mechanical strength and guarantees esthetic look of the equipment even after many years of
service.
1. Outfit options
The siren can be fitted with additional elements of tamper protection (sold separately),
including:
•
inner cover of galvanized metal sheet, OM-SPL 5000,
•
foam detector, SPL-SAB or SPL-TO.
In order to install the SPL-SAB detector, remove the electronics board and unsolder the SMD
component (situated underneath the board), designed for shorting the solder points J3
and J4. Next, solder the detector leads to these points and, using a screw, attach
the detector to the siren base (so as to cover the opening) and remount the PCB.
2. Installation
OPTICAL-ACOUSTIC SIGNALING DEVICE
®

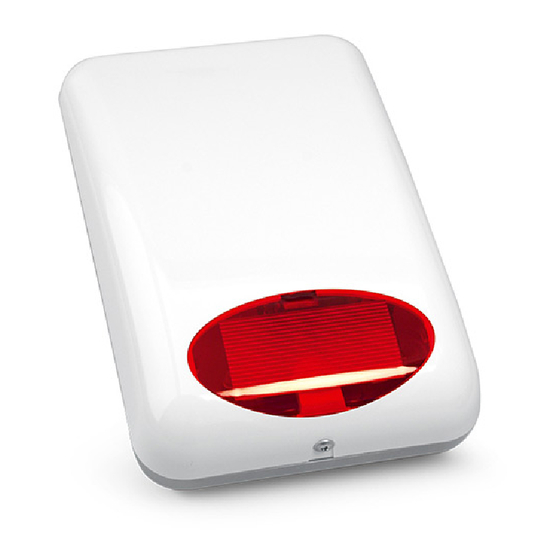

Fig. 1. View of the SPL-5010 siren enclosure.
SPL-5010
spl5010_en 01/09
Advertisement
Table of Contents
Related Manuals for Satel SPL-5010
Summary of Contents for Satel SPL-5010
- Page 1 ® spl5010_en 01/09 The SPL-5010 outdoor siren is designed for application in burglary and panic alarm systems. The signaling function is performed in two ways: optically (by blinking of indicator LEDs situated in the lower part of the enclosure) and acoustically (with a modulated high-volume sound signal).
- Page 2 SPL-5010 SATEL The SPL-5010 siren should be mounted on flat surface, at a place as much inaccessible as possible so that the risk of tampering is minimized. The siren must be attached to the surface by means of screws and expansion plugs. In order to take off the cover, remove the retaining screw and lift it by an angle of approx.
- Page 3 SATEL SPL-5010 The SPL-5010 siren can be used with any source of alarm signal which in emergency situation generates 12V direct voltage on its alarm output(s) or whose output will be shorted to the common ground (0V). Connecting +12 V power supply to the "+ SA –" terminals will trigger the acoustic signaling, and to the "+ SO –"...
- Page 4 Working temperature range ................... -35…+60 °C Sound pressure....................approx. 120 dB Enclosure dimensions..................298x197x72 mm Weight 670 g ............................SATEL sp. z o.o. Latest EC declaration of conformity and tel. +48 58 320 94 00 ul. Schuberta 79 product approval certificates can be info@satel.pl 80-172 Gdańsk...
