LED Lightbar - Single Color
9 8 7
Fig. 1
Fig. 2
5.
6 5 4
REAR
6 5 4
Grey gasket location - Cut to fit
FRONT
Wire Exit Hole
Wire Harness Sleeve

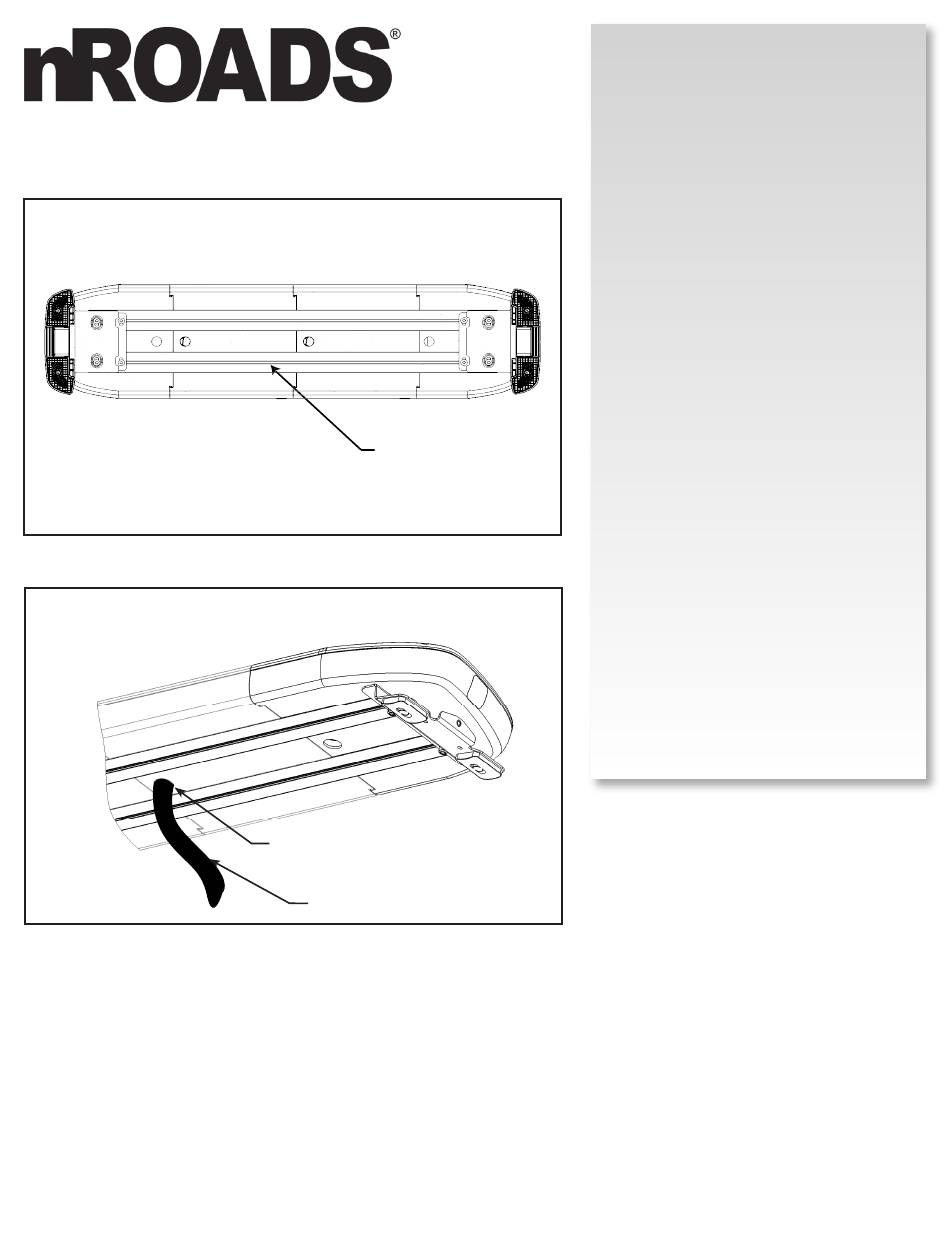

GASKET MOUNTING INSTALLATION
3 2 1
1. Install the Grey gasket in the front slot of the lightbar as
shown in Fig 1.
WIRE SLEEVE INSTALLATION
1. Unspool all harnesses coming out of the lightbar.
2. Feed all harnesses through the sleeve until the sleeve is
positioned at the exit hole under the lightbar.
3. Continue sliding the sleeve through the rubber gasket
until it hits a hard stop (should be an additional 1-2
inches).
4. Use the included zip tie to clamp around the end of the
sleeve opposite the lightbar.
**See Fig. 2 for reference**
