Soundoff Signal ETSSLFVBK11 Installation

FRAME MOUNT BRACKET (NO DRILL) FOR THE AFTERSHOCK LOW FREQUENCY SPEAKER
2018 - 2021 FORD F150, MOUNTS SPEAKERS
ETSSLFVBK11
1
2
4 3
WARNING
•HIGH CURRENT interconnects must be properly terminated. Poor crimp quality can cause heat build-up and fire. Follow crimp connector
manufacturer instructions.
•DO NOT install this product or route any wires in the Air Bag Deployment Zone. Refer to vehicle Owner's Manual for deployment zones.
•Do NOT use system to disconnect headlights, brake lights or other safety equipment.
•Unit may become hot to touch during normal operation.
•Failure to properly install connectors, fuses or wiring may cause vehicle failure or fire.
•Installation must only be performed by trained technician. Installer must determine vehicle wiring configuration and proper integration of system.
•Use proper wire gauge. All power wires connecting to positive (+) or negative (-) battery terminal or local chassis ground (-) must be sized to
supply at least 125% of max. current and properly fused at power source.
•Install protective grommets when routing wire through firewall or metal.
1.800.338.7337 / www.soundoffsignal.com
1
8
6
7
5
Bracket installs between the frame rails on
the front of the vehicle in the location shown.
Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning devices.
To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at www.soundoffsignal.com/tech-services/returns/.
If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. ET at 1.800.338.7337 (press #4).
Questions or comments that do not require immediate attention may be emailed to techservices@soundoffsignal.com.
NOTICE:
Improper use or installation may void warranty coverage.
E N H A N C I N G S A F E T Y T H R O U G H I N N O VAT I O N
INSTALLATION:

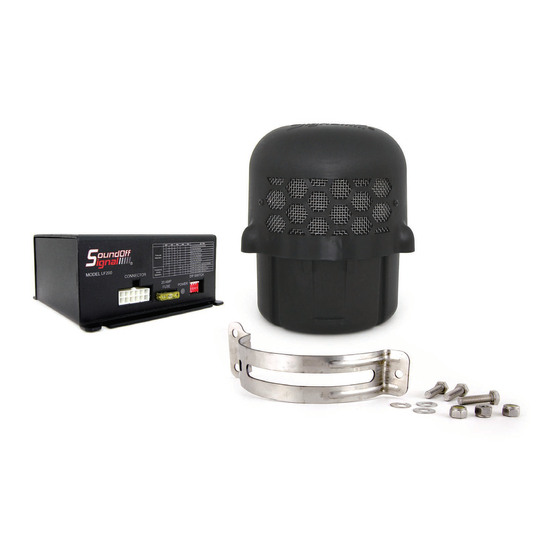

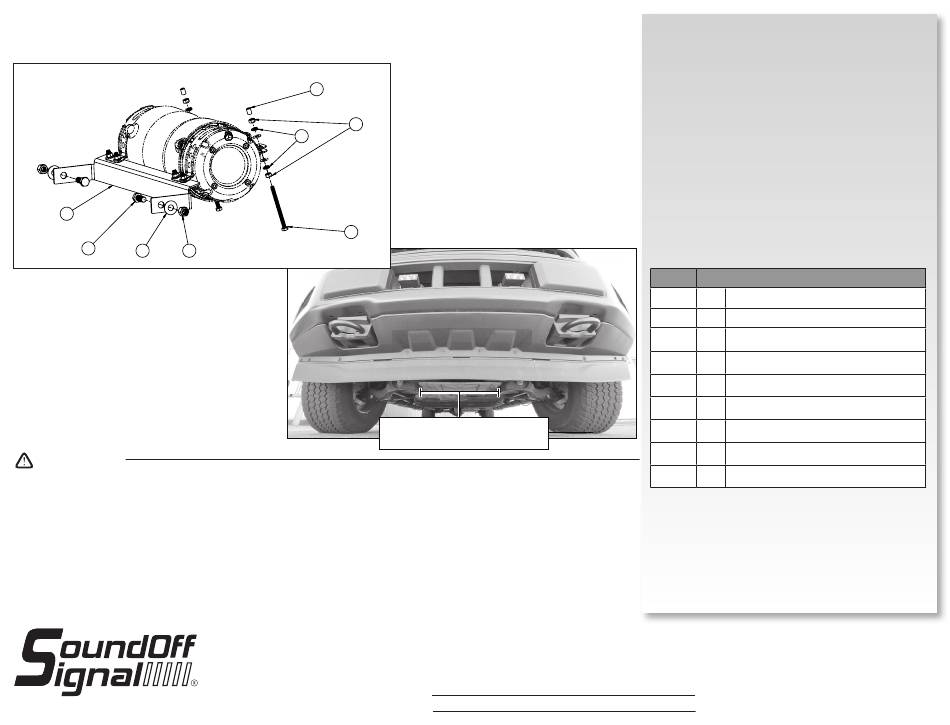

1. Attach the speakers to the low frequency bracket using
the Universal Mount Brackets and hardware provided
with the aftershock speaker kits, as shown in Fig. 1 on
Page 2. The grills of the speakers should face downward
as shown.
NOTE: ONLY INSTALL THE BOLTS NECESSARY TO
FASTEN THE UNIVERSAL MOUNT BRACKETS TO THE
SPEAKER BRACKET.
Do not install the single bolt on the opposite side of the
speaker. The speaker bracket should be sandwiched
between the Universal Mount Brackets. Tighten to 15
ft-lbs.
CONTENTS
ITEM# QTY COMPONENT
1 1 LOW FREQUENCY BRACKET
2 2 1/2-20 HEX HEAD BOLT
3 2 1/2-20 NYLON LOCK NUT
4 2 1/2" FLAT WASHER
5 2 5/16-18 x 4" HEX HEAD BOLT
6 4 5/16-18 HEX NUT
7 4 5/16 LOCK WASHER
8 2 RUBBER BOLT CAP
*Speaker and Speaker Hardware Sold Separately
ETSSLFVBK11 0221
