Soundoff Signal ETSSVBK09 Quick Start Manual

100J/100U SERIES SPEAKER BRACKET (NO DRILL) CAPABLE OF HOLDING UP TO TWO SPEAKERS FOR THE
FORD F-150 CIVILIAN VEHICLE ONLY (EXCLUDING F-150 RAPTOR) 2021 - 2022, HOOD LATCH MOUNT
ETSSVBK09
WARNING
•HIGH CURRENT interconnects must be properly terminated. Poor crimp quality can cause heat build-up and fire. Follow crimp connector
manufacturer instructions.
•DO NOT install this product or route any wires in the Air Bag Deployment Zone. Refer to vehicle Owner's Manual for deployment zones.
•Do NOT use system to disconnect headlights, brake lights or other safety equipment.
•Unit may become hot to touch during normal operation.
•Failure to properly install connectors, fuses or wiring may cause vehicle failure or fire.
•Installation must only be performed by trained technician. Installer must determine vehicle wiring configuration and proper integration of system.
•Use proper wire gauge. All power wires connecting to positive (+) or negative (-) battery terminal or local chassis ground (-) must be sized to
supply at least 125% of max. current and properly fused at power source.
•Install protective grommets when routing wire through firewall or metal.
1.800.338.7337 / www.soundoffsignal.com
1

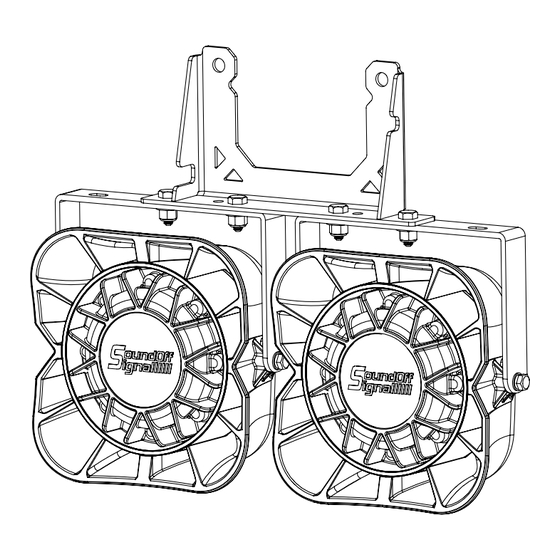

SHOWN WITH 100J SPEAKERS, SOLD SEPARATELY
Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning devices.
To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at www.soundoffsignal.com/tech-services/returns/.
If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. ET at 1.800.338.7337 (press #4).
Questions or comments that do not require immediate attention may be emailed to techservices@soundoffsignal.com.
NOTICE:
Improper use or installation may void warranty coverage.
E N H A N C I N G S A F E T Y T H R O U G H I N N O VAT I O N
INTRODUCTION:
100J Speaker* Features:
• Designed for clear, powerful output using neodymium
magnet
• Meets CA Title 13, Class A when used with SoundOff
Signal siren amplifier
• Composite housing creates electrical isolation from
vehicle chassis to extend product life
• Weather tested, glass reinforced nylon material will not
corrode like a traditional aluminum speaker
• Includes universal bail bracket
Design highlights for this vehicle-specific speaker bracket
assembly:
• Holds up to two speakers
• Utilizes universal bail bracket provided with each speaker
CONTENTS
ITEM# QTY COMPONENT
1 1 SPEAKER BRACKET
2 4 ¼"-20 HEX HEAD BOLT
3 4 ¼"-20 LOCK NUT
4 4 ¼" FLAT WASHER
5 1 INSTALLATION INSTRUCTION SHEET
6 1 PRODUCT WARNING CARD
7 1 CA PROP 65 LABEL
*Speaker and bail bracket sold separately
**Hardware provided to attach up to two speakers
BRACKET COMPATIBLE WITH
SPEAKERS:
-100J
-100U
ETSSVBK09 0622 REV B
