STROBE Receiver for the Lexmark J110

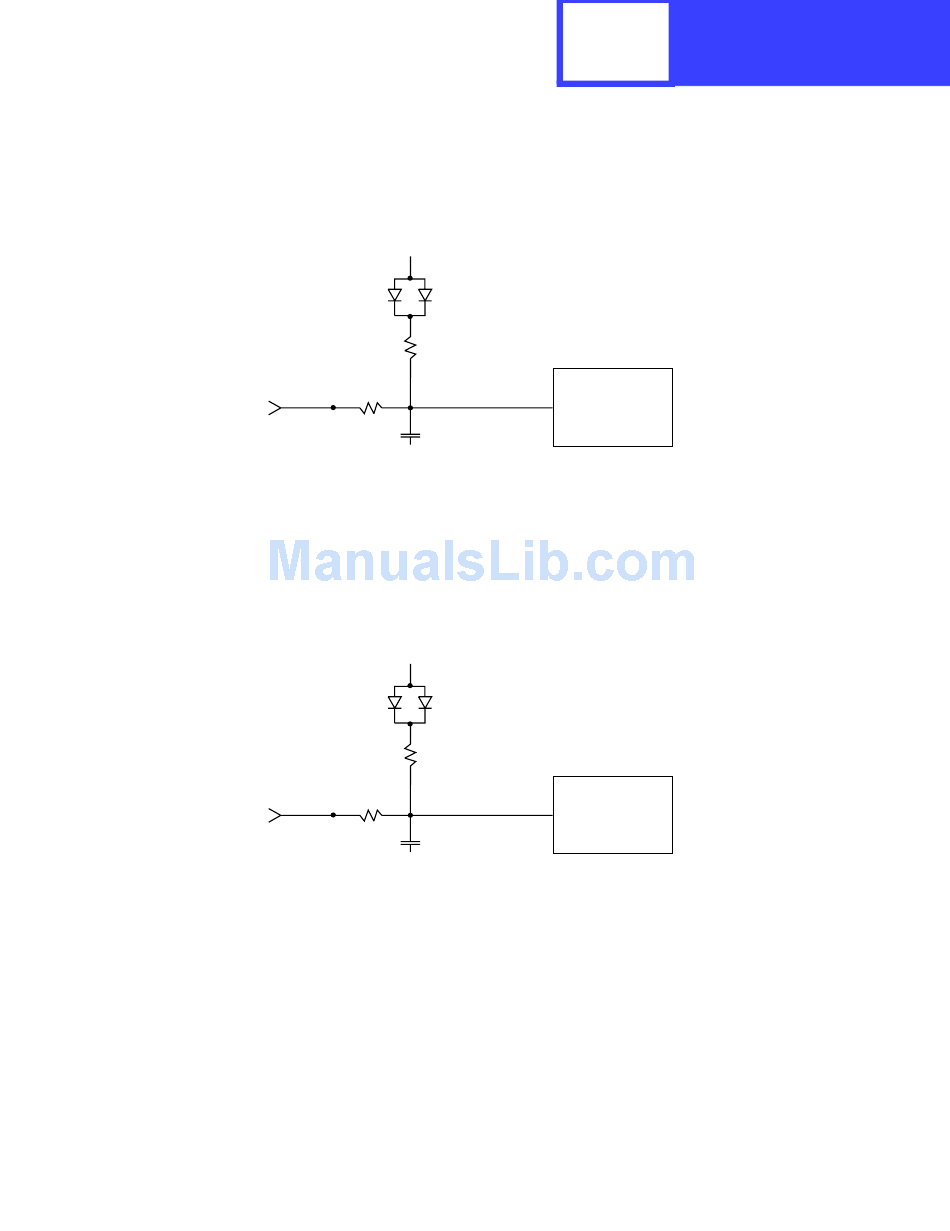

The following diagram illustrates the STROBE receiver for the Lexmark J110.
Connector
Pin Pin
STROBE Receiver for the Lexmark T520, T522, T620, T622, and W820
The following diagram illustrates the STROBE receiver for the Lexmark T520, T522,
T620, T622, and W820.
Connector
Pin Pin
+5V, 5%
1.1K ohm ±10%
33 ohm ±10%
690 pF ±10%
GND
+5V, 5%
1.1K ohm ±10%
33 ohm ±10%
620 pF ±10%
GND
8-21
Interfaces
FCT 2827,
FCT 2828, or
ASIC PIN (J110)
FCT 2827
