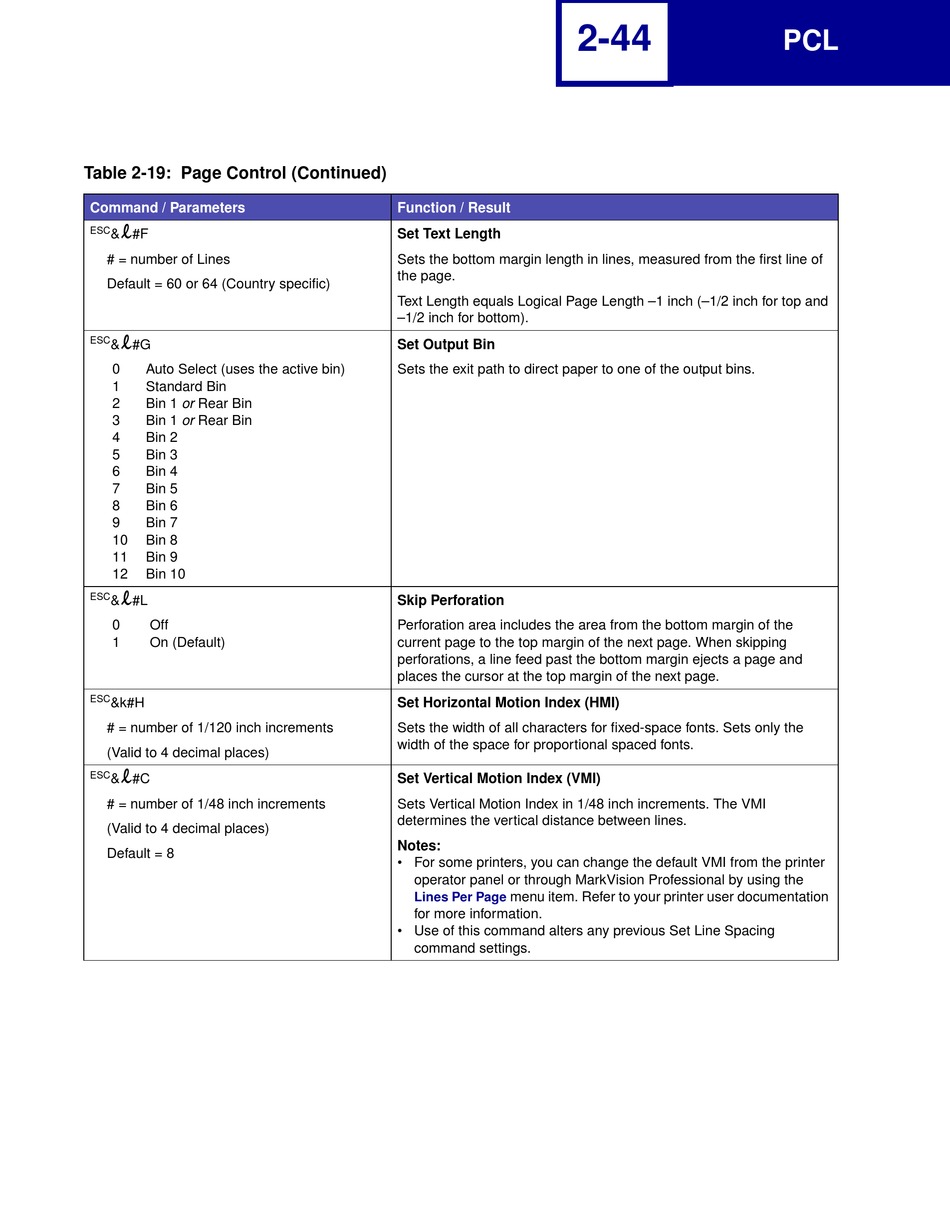

Lexmark C752 Technical Reference page 56

Table 2-19: Page Control (Continued)
Command / Parameters
l
ESC
& #F
# = number of Lines
Default = 60 or 64 (Country specific)
l
ESC
& #G
0 Auto Select (uses the active bin)
1 Standard Bin
2 Bin 1 or Rear Bin
3 Bin 1 or Rear Bin
4 Bin 2
5 Bin 3
6 Bin 4
7 Bin 5
8 Bin 6
9 Bin 7
10 Bin 8
11 Bin 9
12 Bin 10
l
ESC
& #L
0 Off
1 On (Default)
ESC
&k#H
# = number of 1/120 inch increments
(Valid to 4 decimal places)
l
ESC
& #C
# = number of 1/48 inch increments
(Valid to 4 decimal places)
Default = 8
Function / Result
Set Text Length
Sets the bottom margin length in lines, measured from the first line of
the page.
Text Length equals Logical Page Length –1 inch (–1/2 inch for top and
–1/2 inch for bottom).
Set Output Bin
Sets the exit path to direct paper to one of the output bins.
Skip Perforation
Perforation area includes the area from the bottom margin of the
current page to the top margin of the next page. When skipping
perforations, a line feed past the bottom margin ejects a page and
places the cursor at the top margin of the next page.
Set Horizontal Motion Index (HMI)
Sets the width of all characters for fixed-space fonts. Sets only the
width of the space for proportional spaced fonts.
Set Vertical Motion Index (VMI)
Sets Vertical Motion Index in 1/48 inch increments. The VMI
determines the vertical distance between lines.
Notes:
• For some printers, you can change the default VMI from the printer
operator panel or through MarkVision Professional by using the
menu item. Refer to your printer user documentation
Lines Per Page
for more information.
• Use of this command alters any previous Set Line Spacing
command settings.
2-44
PCL
